LB 470 Level 5 Electric Installation
56925BA2 Rev. 03, 11/2017
Variant master/master
Variant master/ 3x slave
Opening terminal connection
Stripped wire
Connection detector
Supply Voltage
Voltage output
Marking Supply Voltage
RJ45 connector (network)
PE connection

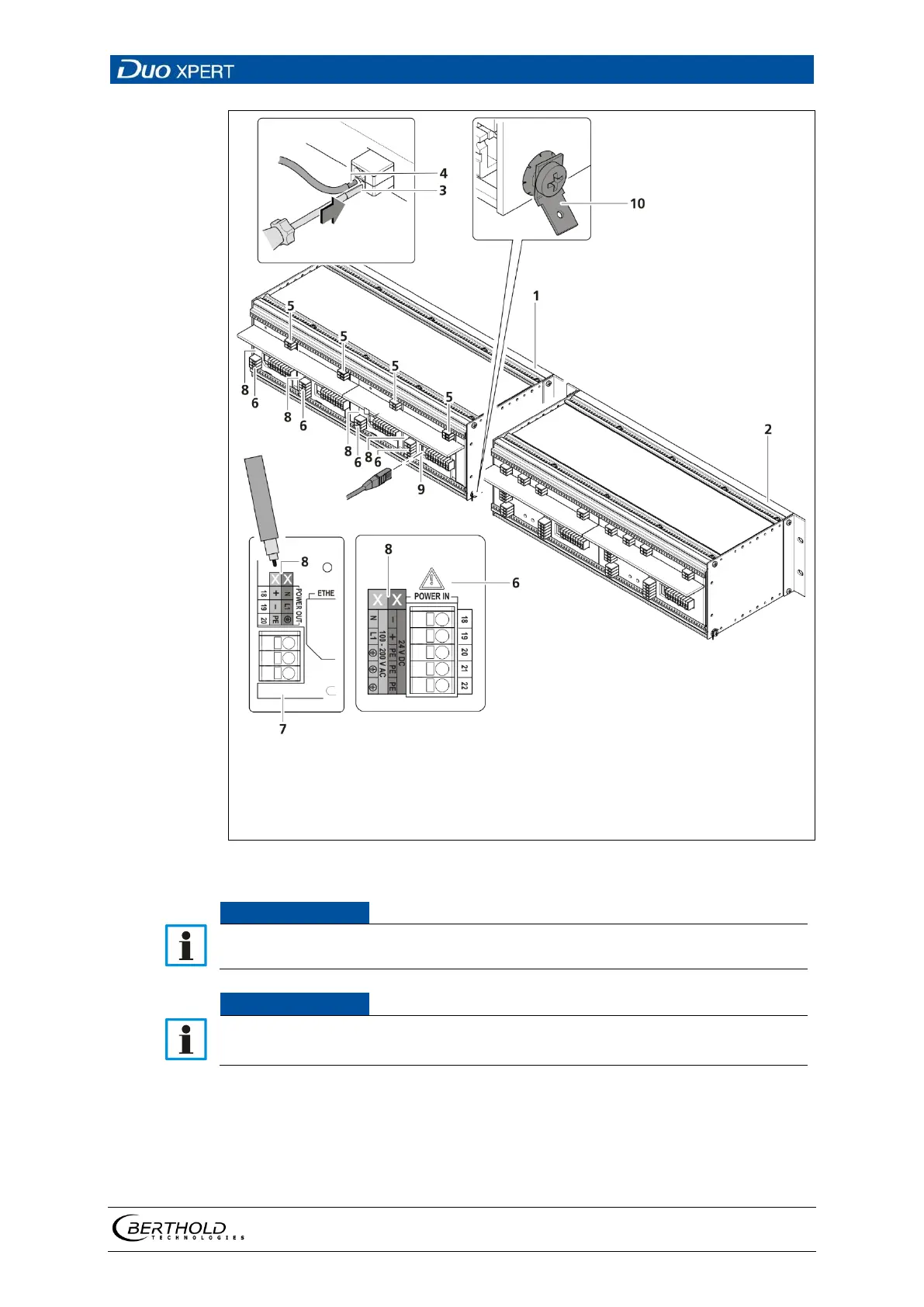

21 Electrical connection in the 19" subrack
Apply the voltage of the specified and marked (Fig. 20, item 3) range only!
Note the specification relating to Cables, Protective earth, equipotential bond-
ing and EIA-485 (RS-485) in chapter 5.1.
1. Unused slots must be closed with blinds.
2. Label the voltage range permanently and chemically (Fig. 21, item 8).
3. Connect the lines according to assignment (chap.5.4 or chap.5.5) to the ter-
minal board.
