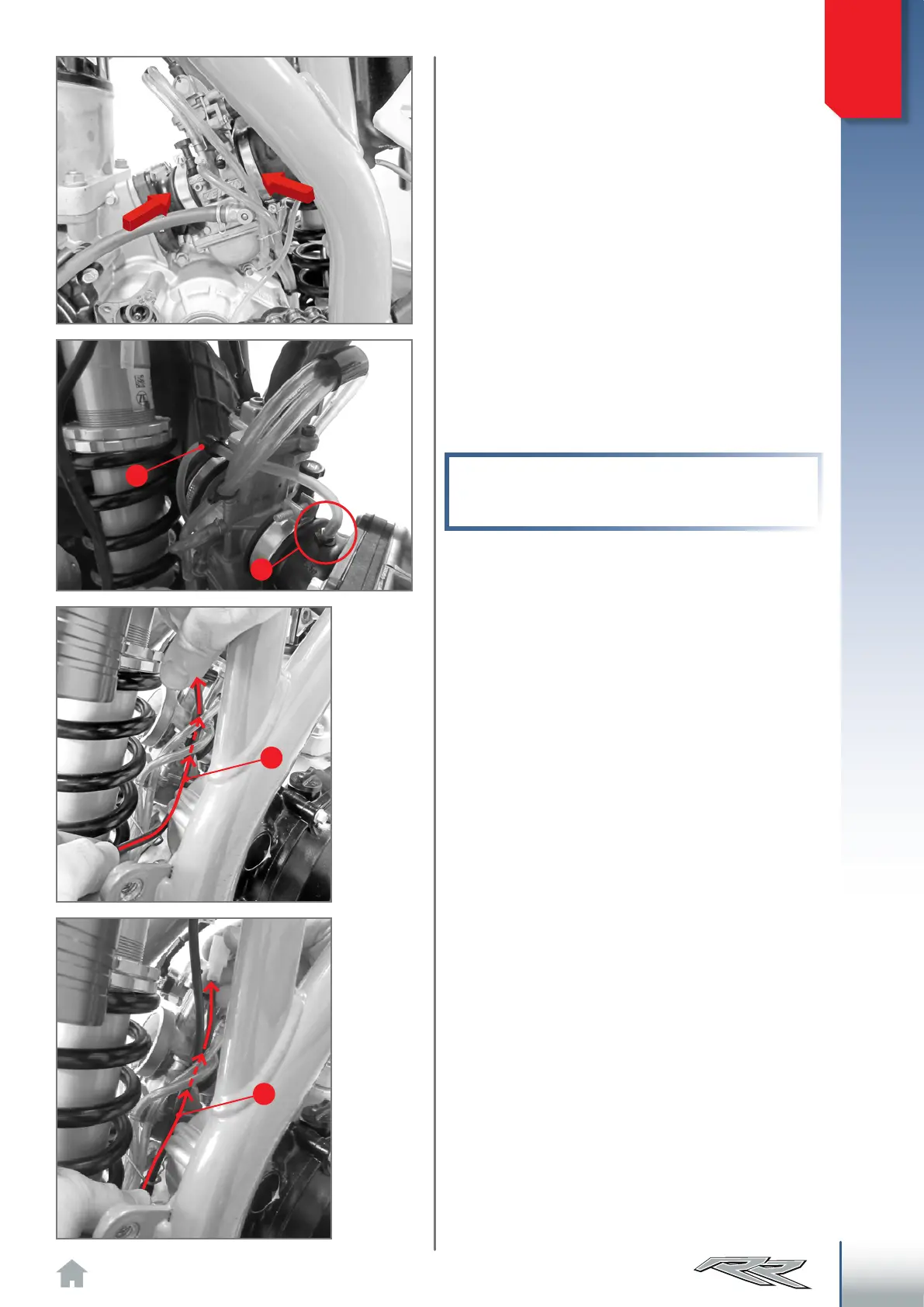

ENGINE REASSEMBLY IN THE VEHICLE
∙ Make sure the filter box sleeve is correctly in-
serted inside the carburettor, fasten the two
filter box side and manifold side straps.
∙ Remove the cap applied to the mixer tube (see
page 13).
∙ Slide the tube through the tube hole 5 and
connect it to the nozzle 6 on the intake man-
ifold.
ATTENTION!
Ensure the tube is fitted all the way into the noz-
zle.
∙ Feed through the starter motor cable A behind
the carburettor breather tubes as shown in the
figure.
∙ Then feed through the brake light wiring B be-
hind the carburettor vents.
