ENGINE CHECKS AND ASSEMBLY
Position the two forks 6 of the secondary unit in
the external guides of the desmodromic device 8
and, just like the primary unit fork, insert the fork
pin first in the pins and then in its proper seat.
Remember to oil the shafts, forks and the desmo-
dromic device with plenty of gear oil.
Apply some grease on the crankcase edge in the
mating area with the gasket and place a new gas-
ket.

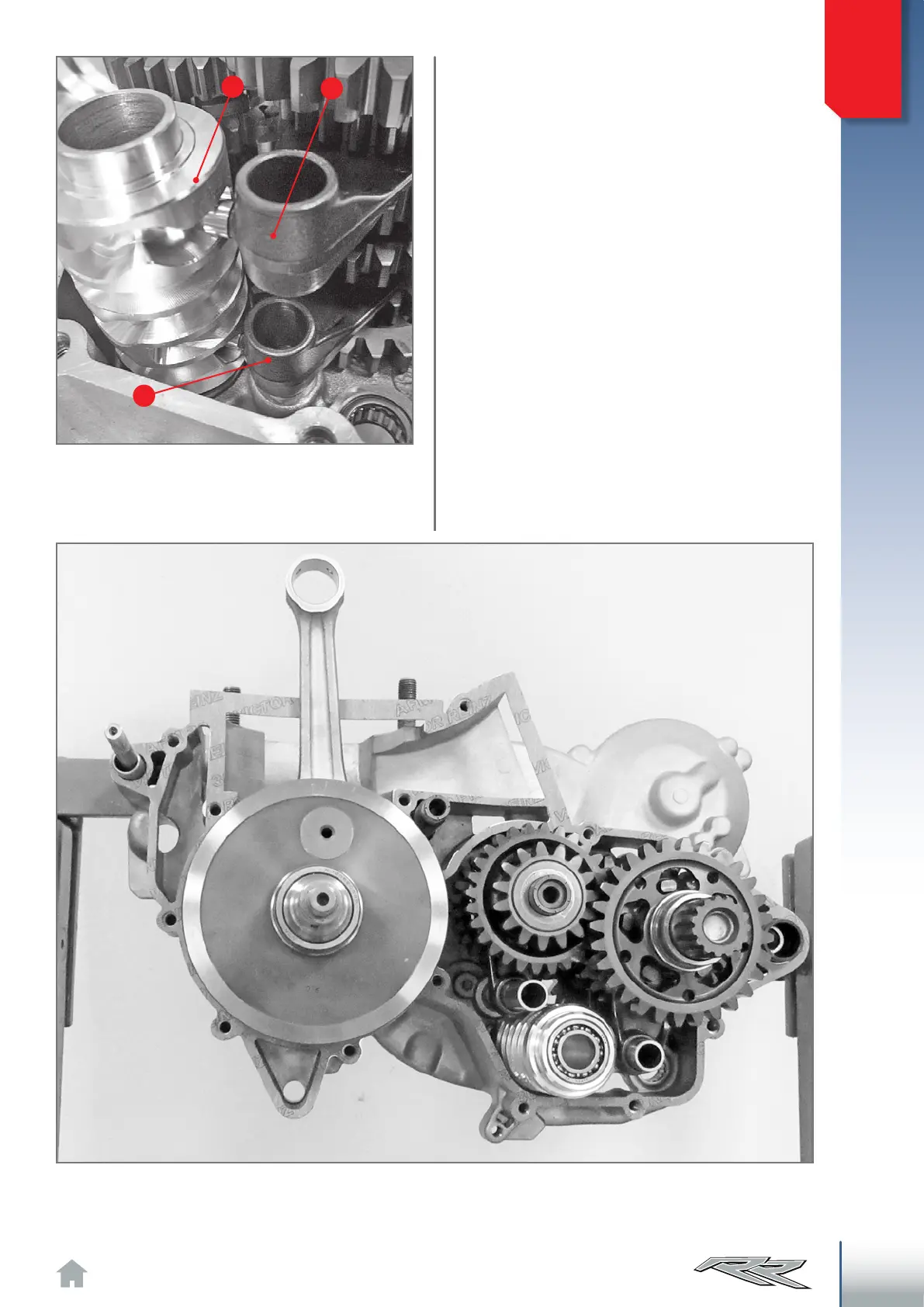

Positioning of the secondary unit forks 6. In the
external guides of desmodromic device 8.
View inside the right crankcase with crankshaft, gearbox shafts complete with wheels, internal gearshift and gasket.
