3
76
A
B
120Nm

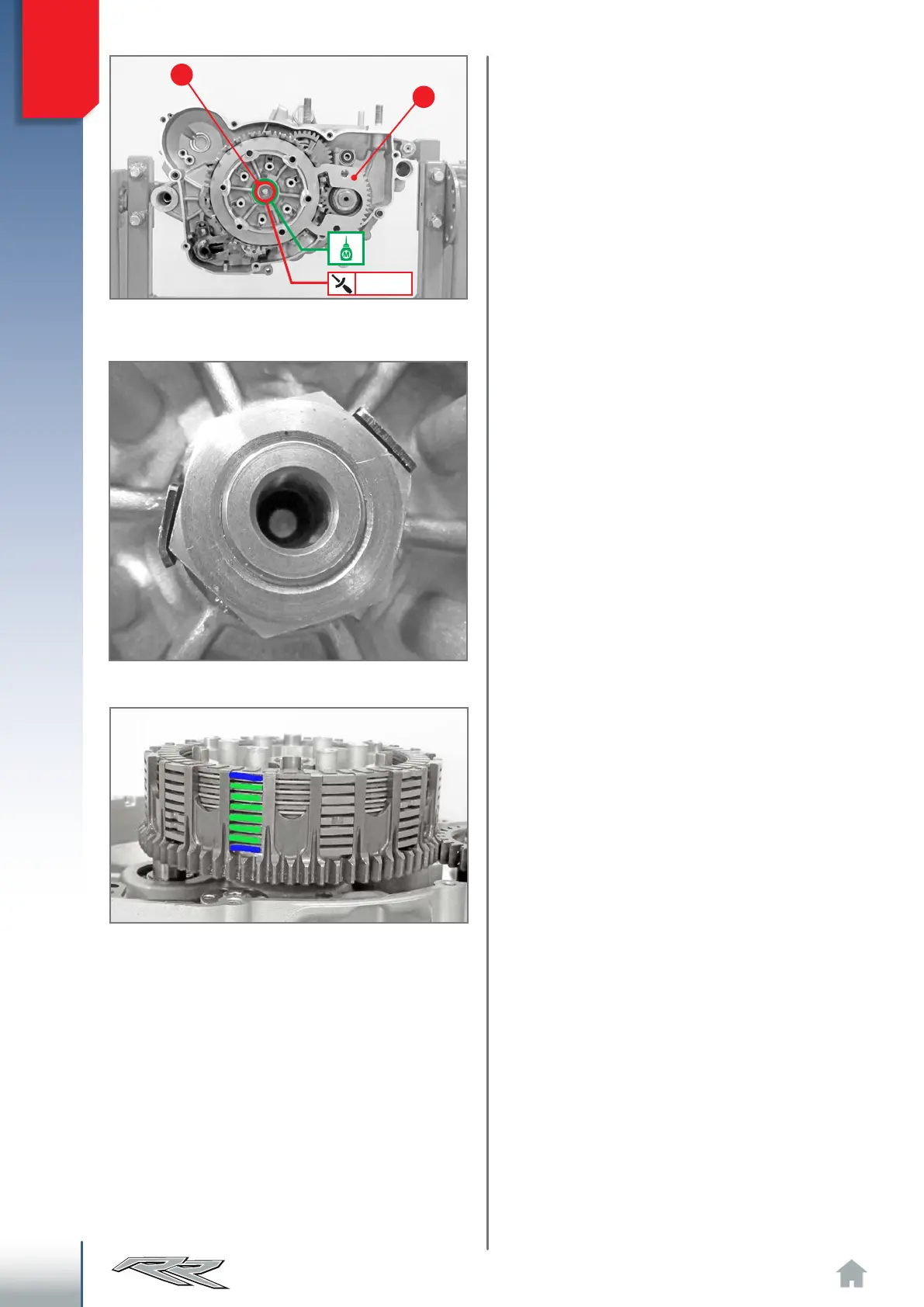

ENGINE CHECKS AND ASSEMBLY
To tighten the nut 8 the clutch drum must be held
blocked with tool A (code 029.14.002.50.00).
Tighten to the specified torque.
Having tightened the nut, fold the two locking
fins on the safety plate.
Safety washer folding
Disc arrangement
Lubricate the clutch discs with gear oil and apply
the driving disc with BLUE edge and a driven disc.
Then alternate the driving discs with GREEN edge
and the driven discs.
The other BLUE driving disc will close the disc
pack.
Please note that the driven discs must be inserted
so that the connecting radius on the teeth faces
inwards towards the engine.
