ENGINE CHECKS AND ASSEMBLY
OK NO!

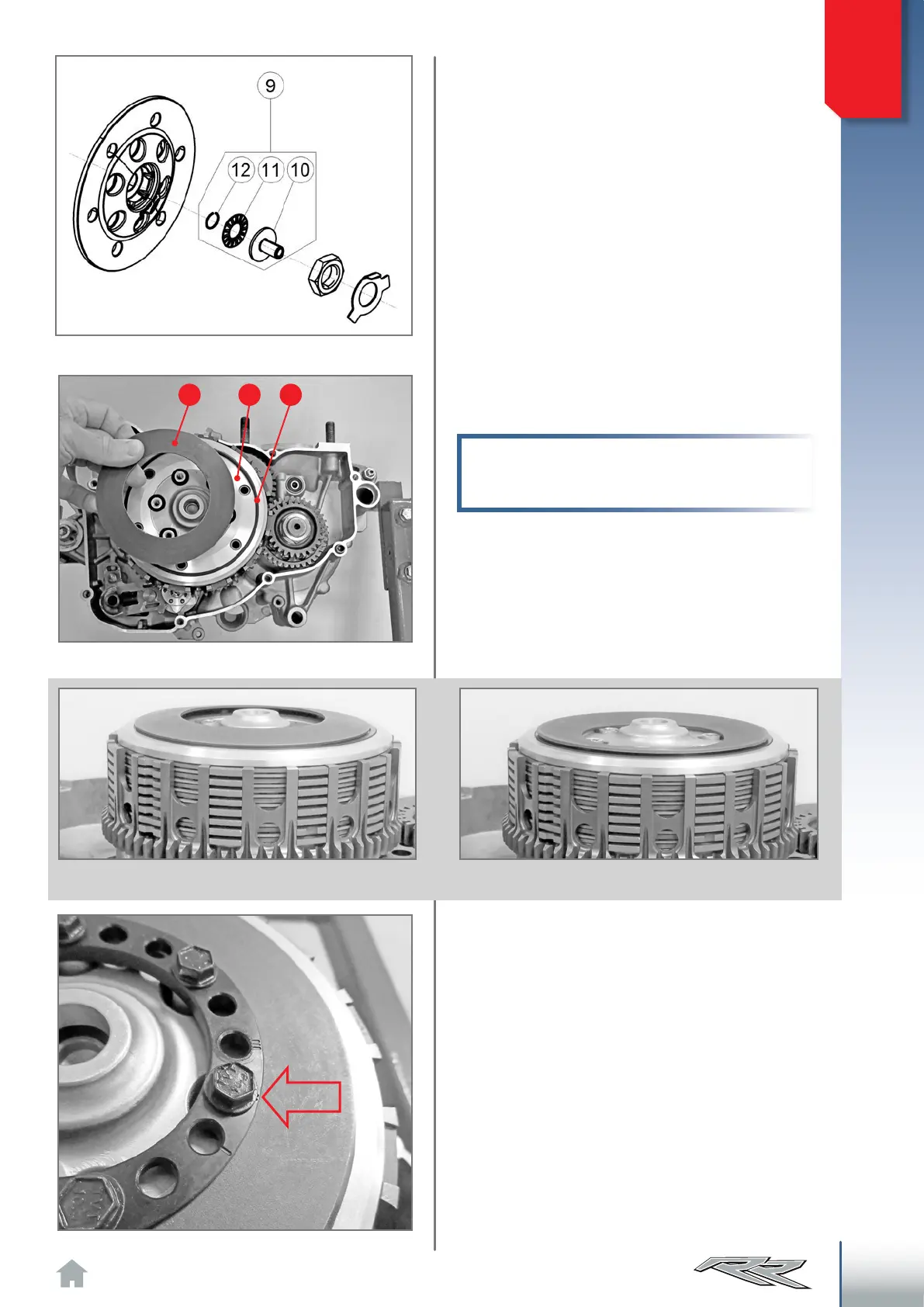

Insert the thrust bearing assembly 9 (after lubri-
cating it with gear oil) in the hole on the gearbox
main shaft and check free axial sliding.
Thrust bearing assembly
Clutch cap assembly
Fitting the pressure plate 1, the ring 2 and the
spring washer 3.
Fit the ring as shown in the diagram by positioning
it so that a screw lines up with the III mark.
Detail of incorrect fitting of the spring washer.Detail of correct fitting of the spring washer.
WARNING!
The spring washer must be fitted so the side
with the larger diameter rests on ring 2.
