ENGINE CHECKS AND ASSEMBLY

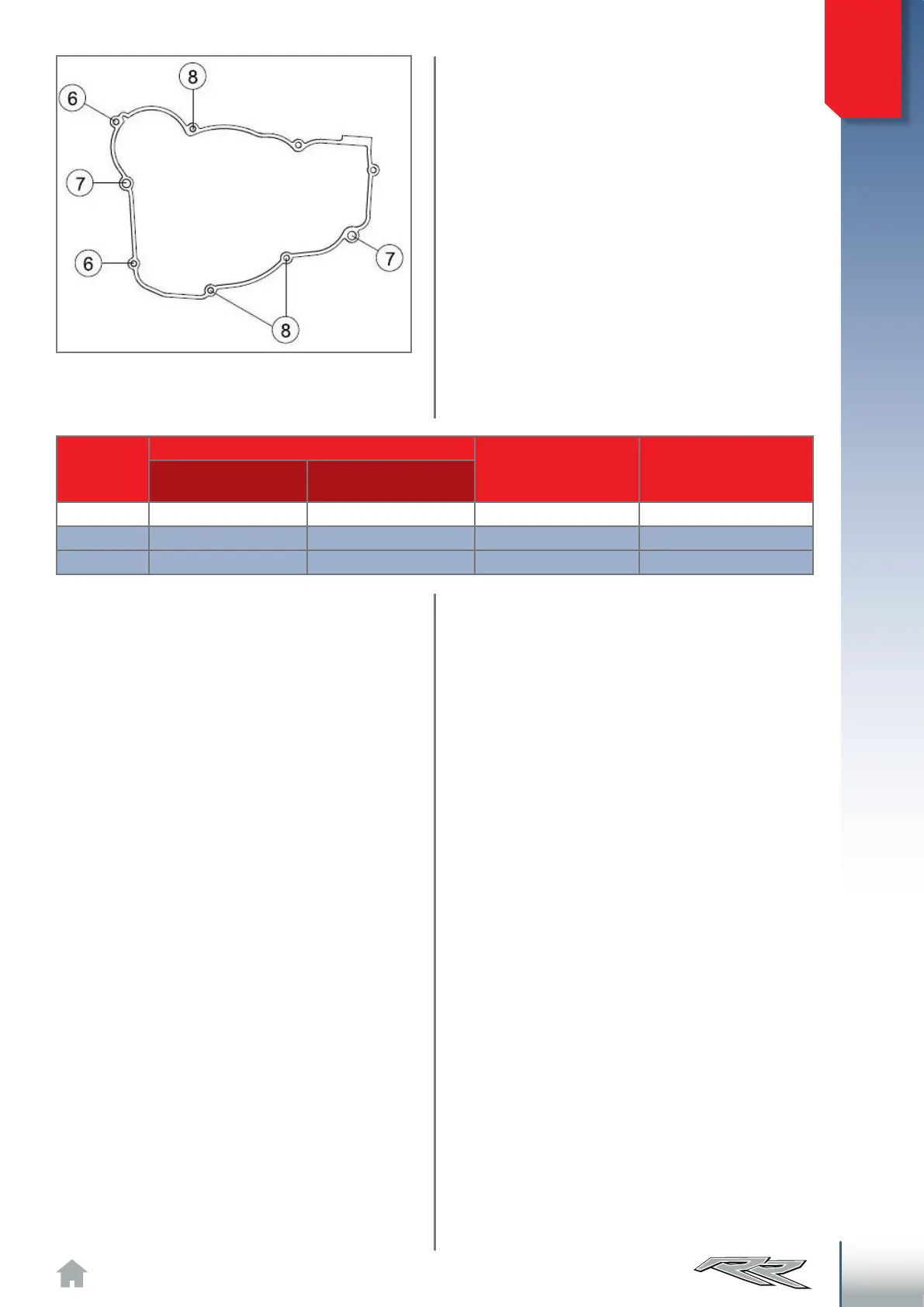

Apply the seven screws as pictured, tightening

them at 10Nm with a criss-cross pattern.

Screws positioning.

Number

screw

Screw size

Threadlocker

application

Tightening torque

[Nm]

Threading

diameter

Threading length

6 M6 20 NO 10

7 M6 30 NO 10

8 M6 50 NO 10
