3
90
A
11
B
10
10Nm
ENGINE CHECKS AND ASSEMBLY
Tighten the nut to torque 60Nm, keeping the
flywheel blocked with the special tool A (code
026140040 000).
Couple the stator to the flywheel cover by means
of the two screws 10. Cover the threading with
medium strength threadlocker and tighten them
at a torque of 10Nm.
Insert the cable gland in its specific seat and
check its perfect sealing.
Apply a few drops of silicone in the guides for
housing the plate 1. Apply the plate 11 to be in-
serted in its guides and pressed. When coupling it
to the left crankcase half, apply a drop of gasket
paste (code 3625000000) in area B.

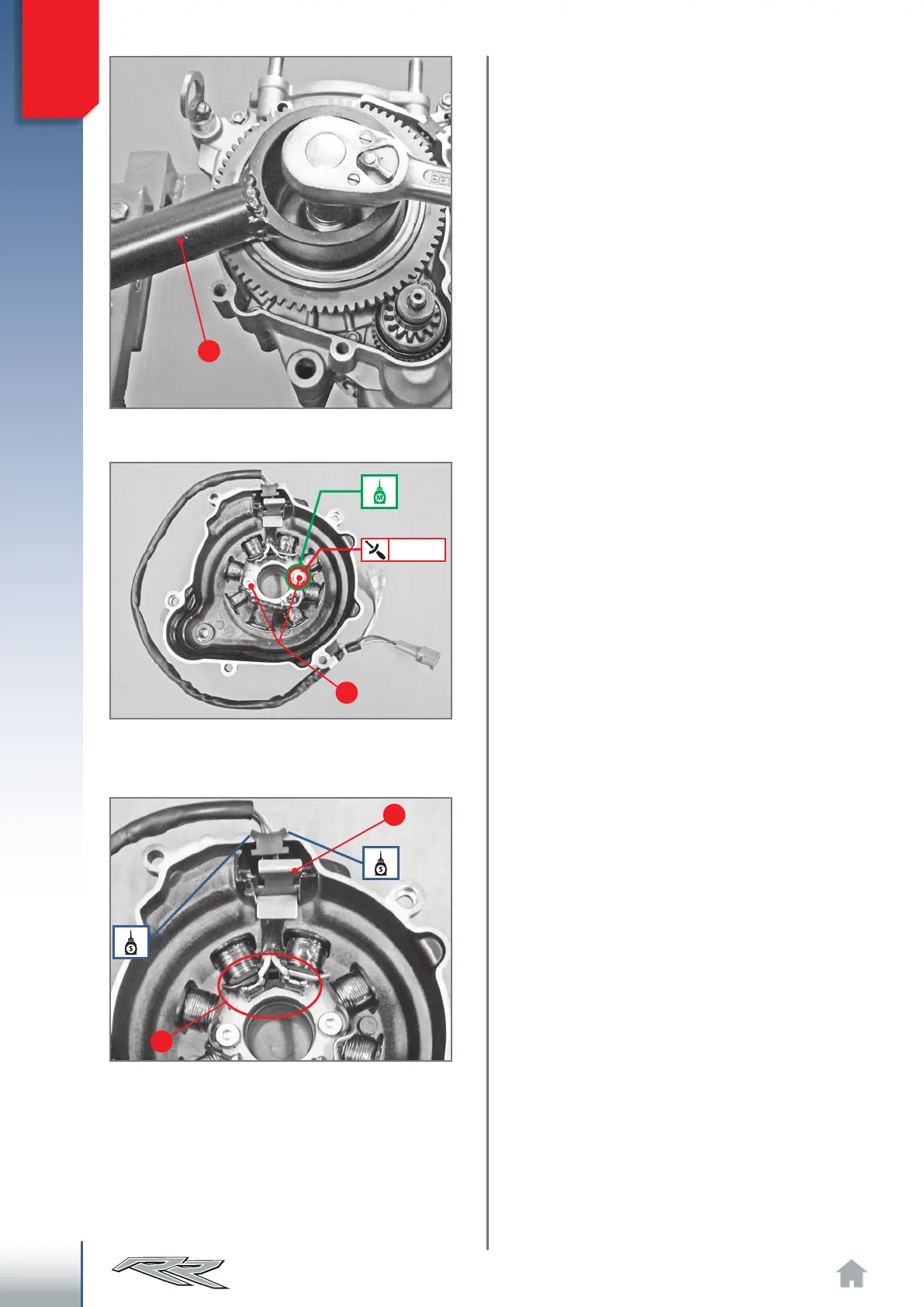

Flywheel fastening.
Stator coupling to the flywheel cover.
Application of stator plate.
