3
91
12
14
13
14
13
10Nm
ENGINE CHECKS AND ASSEMBLY
Insert the centring pins 12 on the crankcase and
fit a new gasket.
Apply the flywheel cover, the two M6x25 screws
13 and the three M6x20 screws 14. Tighten in a
criss-cross pattern at a torque of 10Nm.
Note: When performing a complete overhaul of
the engine or intervening on the thermal unit, do
not apply the cover as it has to be removed to
find the Top Dead Centre.

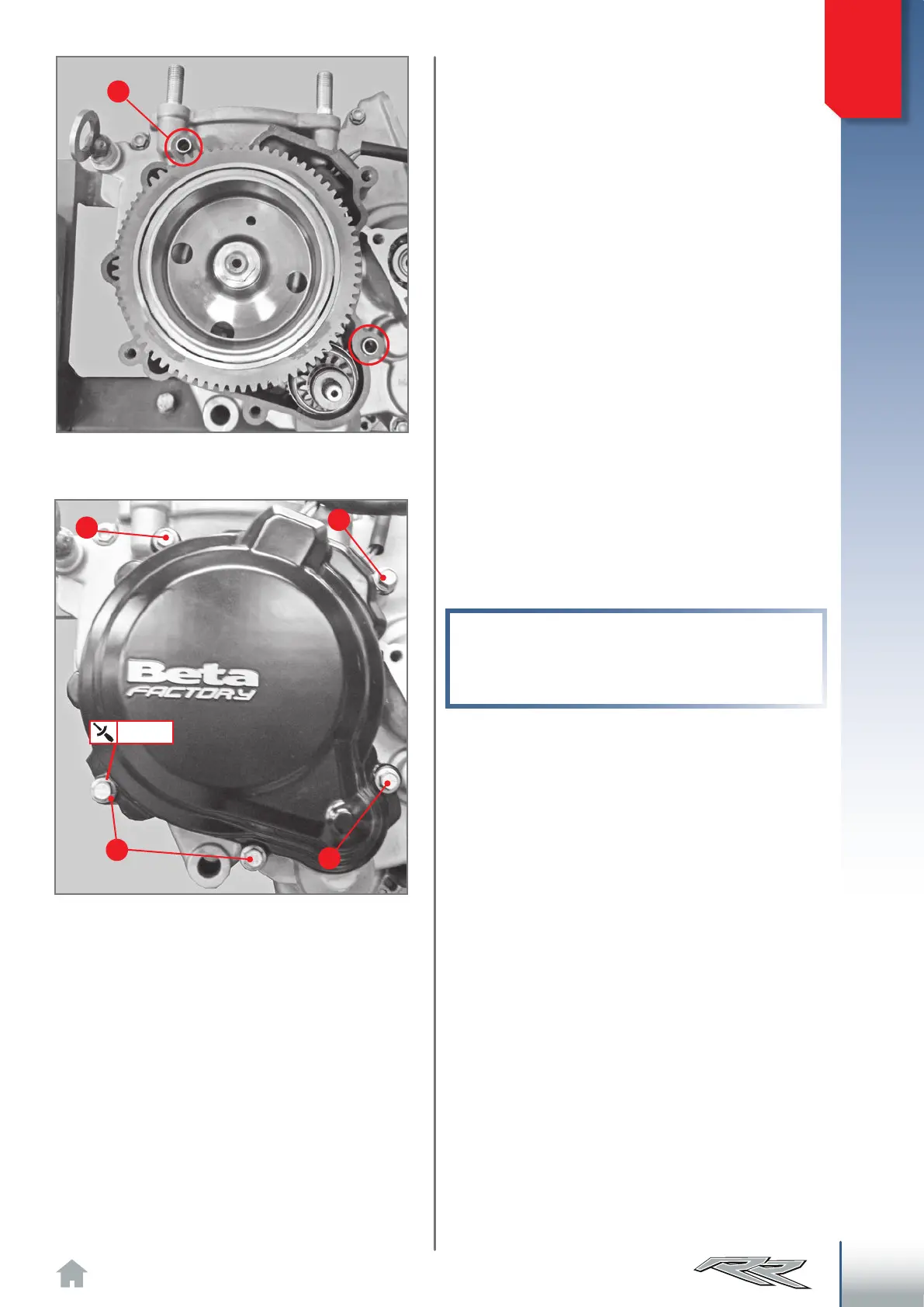

Application of flywheel cover centring pins.
Flywheel cover coupled to crankcase.
