Big Backyard F23073C - Page 48

 48  support@solowavedesign.com
HardwareWood Parts
6 x Trim 5/8 x 1-3/4 x 16-1/4”
2 x Window Brace 1 x 2 x 9-1/2”
2 x Oval Window 1 x 6 x 8-1/4”
1 x Window Frame 1 x 2 x 16-1/4”
2133
20 x #8 x 1-1/8” Wood Screw
S1
H: Ontheinsideoftheassembly,ushtothetopof(2114)TopFrontandtighttotheinsideofeach(2153)Post
andoneachsideofboth(2154)FrontPostsattach6(2133)Trimto(2114)TopFrontand(2125)MiddleFrontwith
2(S1)#8x1-1/8”WoodScrewspertrim.(g.16.7and16.8)
I:Ontheoutsideoftheassemblytighttothetopof(2125)MiddleFrontandushtotheoutsideedgesof2centre
(2133)Trim,asshowning.16.10,attach(0389)WindowFrameto(2133)Trimwith2(S1)#8x1-1/8”Wood
Screws.(g.16.9and16.10)
J:Tighttotopof(0389)WindowFrameandushtotheoutsideedgesof2(2133)Trimattach2(2119)Oval
Windowsfrominsidetheassemblytoeachofthe4centre(2133)Trimswith1(S1)#8x1-1/8”WoodScrewper
trim.(g.16.10)
K: Attach1(1740)WindowBraceushtotheinsideedgeofeachouter(2133)Trimwith1(S1)#8x1-1/8”Wood
Screwpertrim.(g.16.10)

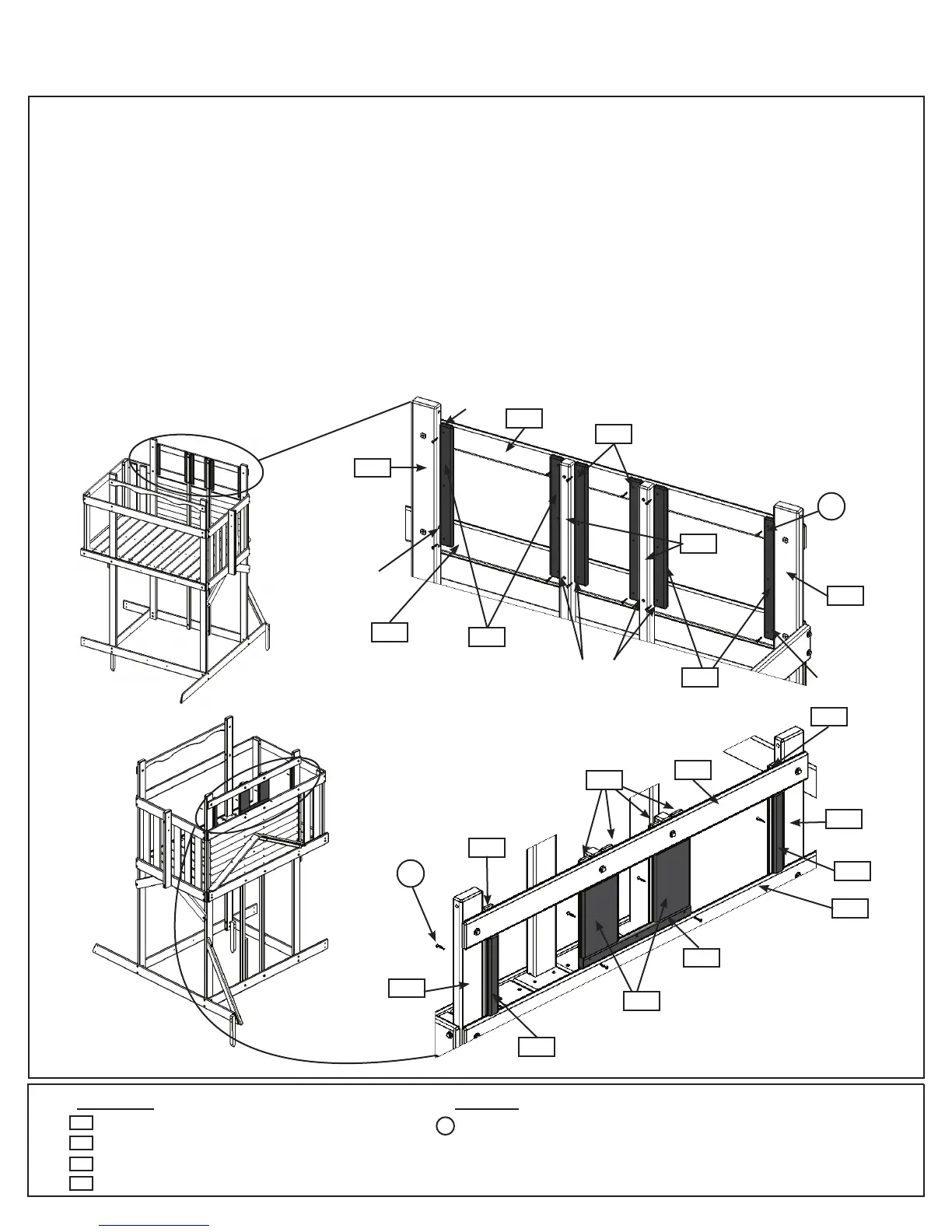

Step 16: Upper Front Wall Assembly
Part 4
Fig. 16.7
Tight
2153
Fig. 16.8
Fig. 16.9
Fig. 16.10
Flush
2114
2133
2133
2133
S1
x2per
board
2154
Tight
2125
Tight
Inside View
2153
Front Wall
Front Wall
Outside View
2114
2153
2125
2133
2153
2133
2133
0389
2119
x8
S1
0389
2119
1740
1740
1740
