12. Options
12.1 APT-COM™ 4 Multi Management Software (option)
The chamber is regularly (FED) or optionally equipped with an Ethernet interface on the chamber rear that
can connect the BINDER APT-COM™ 4 Multi Management Software. The actual temperature value is
given at adjustable intervals. Programming can be performed graphically via PC. Up to 100 chambers can
be cross-linked. The MAC Address is indicated in the Ethernet menu (chap. 11). For further information,
please refer to the APT-COM™ 4 operating manual.
To establish a connection via the chamber’s Ethernet interface, the chamber must be turned off.
12.2 Object temperature display with additional Pt100 temperature sensor (op-
tion)
With this option an additional flexible temperature sensor Pt100 measures the chamber temperature or the
temperature of the charging material which is shown on the controller. The sensor-top protective tube of
the flexible Pt100 can be immersed into liquid substances.
The object temperature display enables the determination of the actual temperature of the charging material
during the whole process. The object temperature is displayed in the controller in Normal Display.

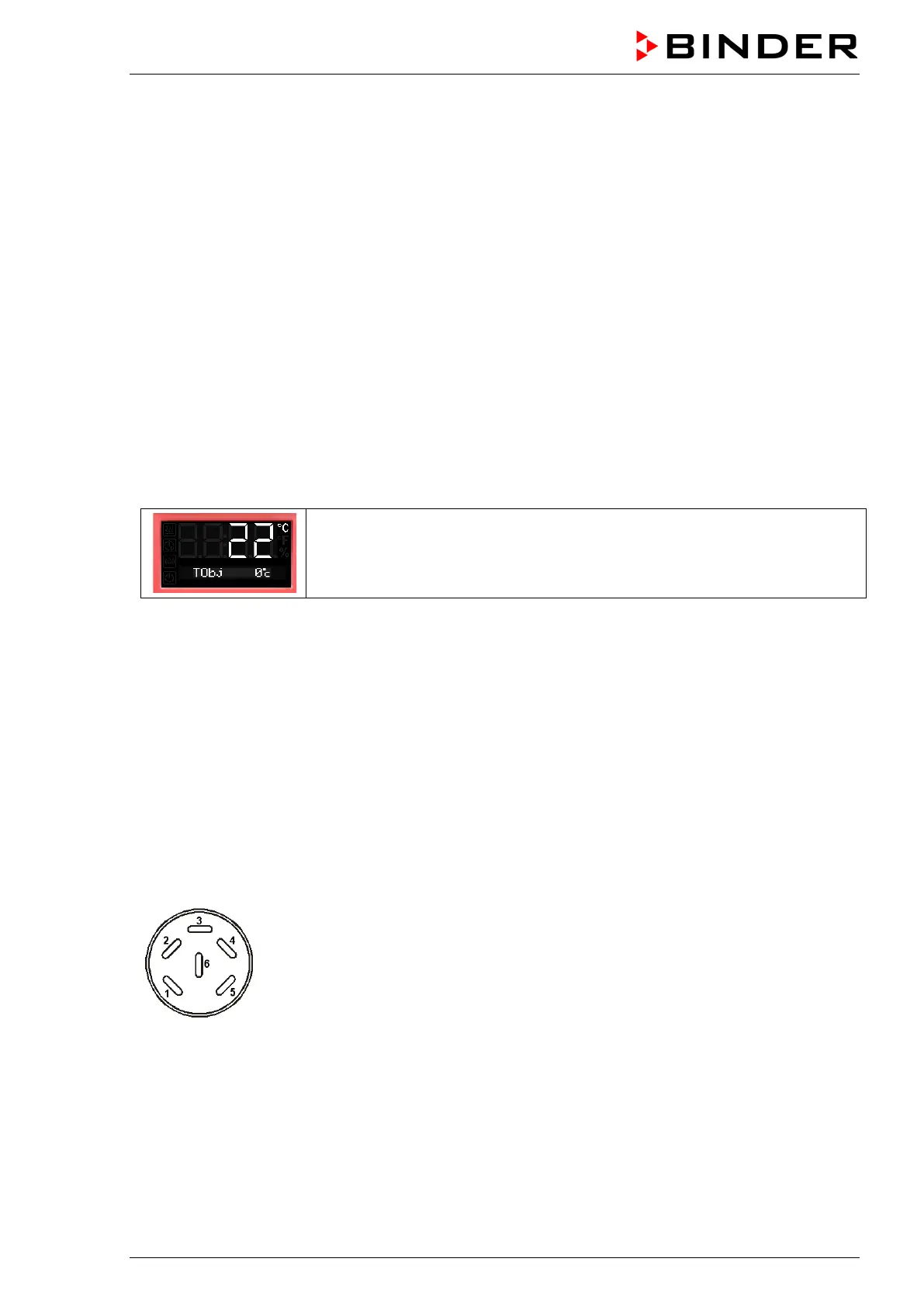

Chamber with option object temperature display:
Actual temperature value and actual object temperature value
Technical data of thePt100 sensor:
• Three-wire technique
• Class B (DIN EN 60751)
• Temperature range up to 320 °C / 608 °F
• Stainless steel protective tube 45 mm length, material no. 1.4501
12.3 Analog output for temperature (option)
With this option the chamber is equipped with an analog output 4-20 mA for temperature. This output per-
mits transmitting data to external data registration systems or devices.
The connection is carried out as a DIN socket at the rear of the chamber as follows:
ANALOG OUTPUT 4-20 mA DC
PIN 1: Temperature –
PIN 2: Temperature +
Temperature range:
BD, BF: 0 °C / 32 °F to +100 °C / 212 °F
ED, FD, FED: 0 °C / 32 °F to +300 °C / 572 °F
A suitable DIN plug is enclosed.
Figure 11: Pin allocation of DIN socket for option analog outputs
12.4 HEPA fresh air filter (option for FD, FED)
With this option, the introduced fresh air is cleaned by means of a high efficiency submicron particulate air
filter type HEPA class H 14 (acc. to DIN EN 1822:2009). Replace the filter insert, if necessary, by removing
the metal cover of the filter at the left side of the chamber (Art. No. 6014-0003).
