2.1 Unit overview
Instrument panel with
microprocessor controller
T4.12 and USB interface
Door handle
Unit door
Main power switch

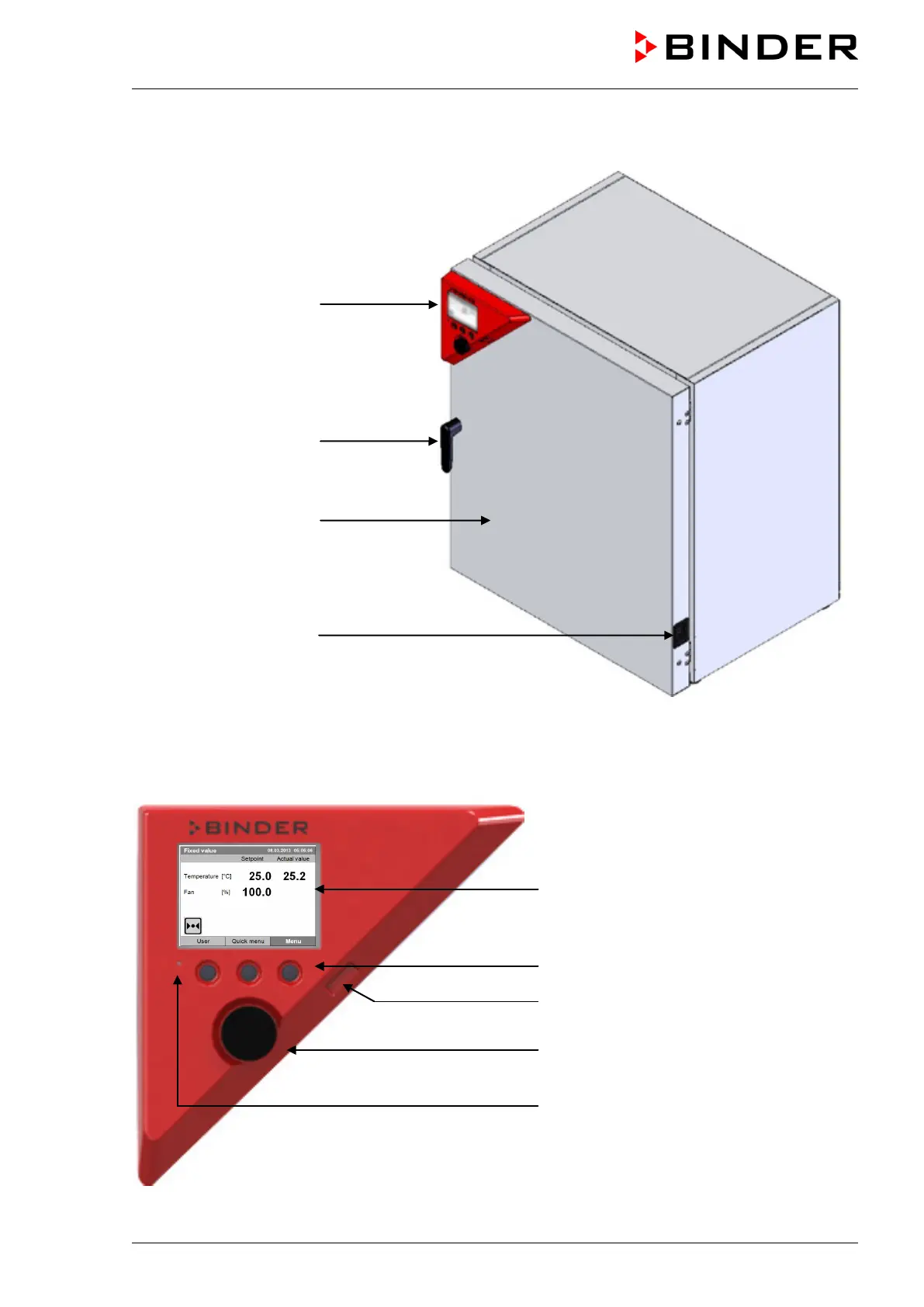

Figure 3: Cooling incubator KT (example: model KT 170)
2.2 Instrument panel
5,7" controller display
Context-sensitive buttons
USB interface
Operating button
Pilot lamp: ready for operation
Figure 4: Instrument panel with microprocessor controller T4.12 and USB interface
