4. Installation of the equipment
4.1 Spacer for wall distance
Please fix both spacers with the supplied screws at the unit rear. This serves to ensure the prescribed
minimum distance to the rear wall of 100 mm / 3.94 in.

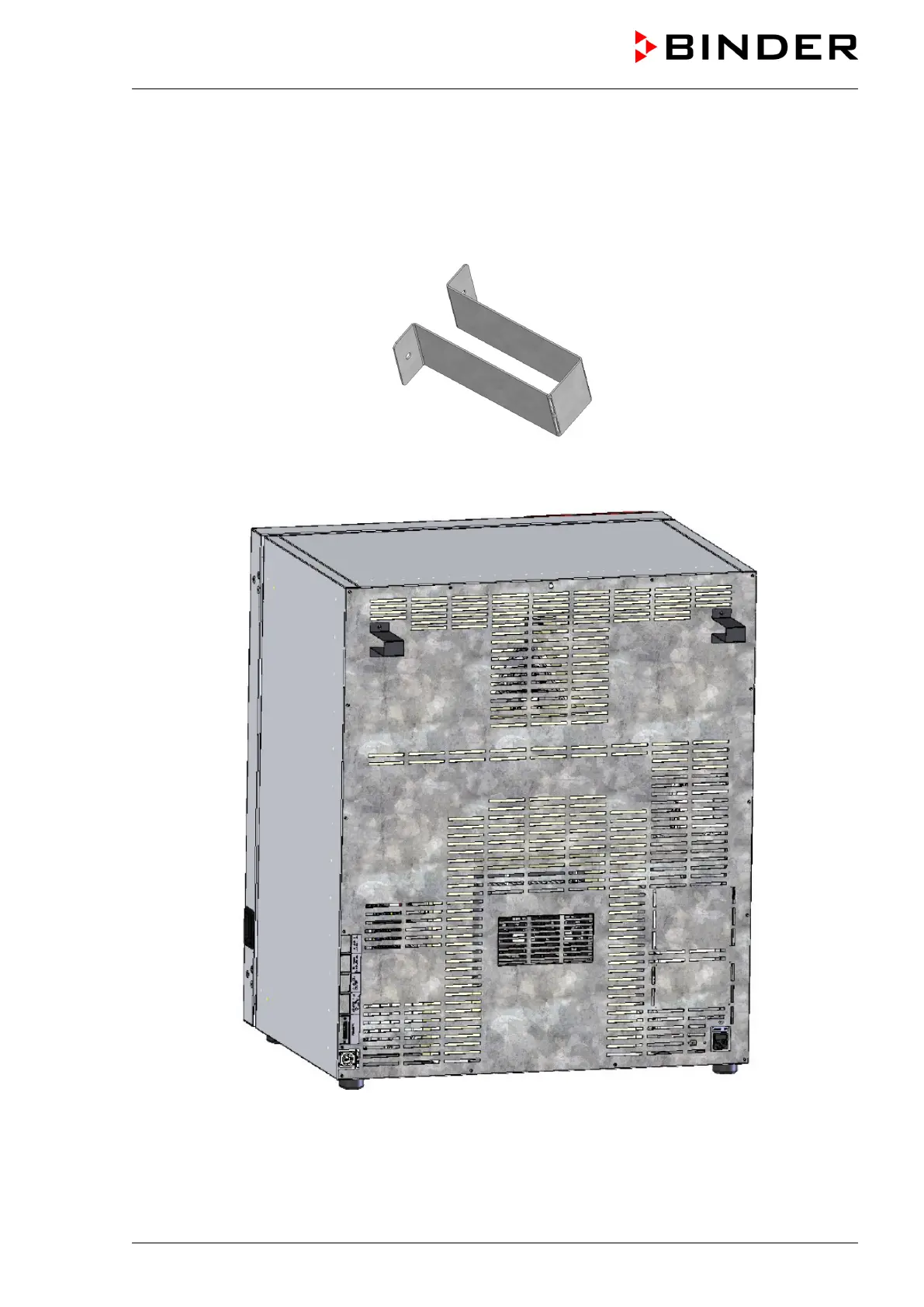

Figure 6: Spacer for wall distance
Figure 7: Rear KT 170 with mounted spacers
