6. Transfer values to the module.
9.5 Configuration, oil and economizer system modules (CM-IO)
The configuration of the oil and economizer system module is done using the BEST software. Depending on
ACP model and firmware version, some parameters can only be set by BITZER. Please contact BITZER if
necessary. The procedure is similar as for the compressor module, see also section 9.4.
1. Connect to the Module with the BEST software. More information can be found in section 8.4.

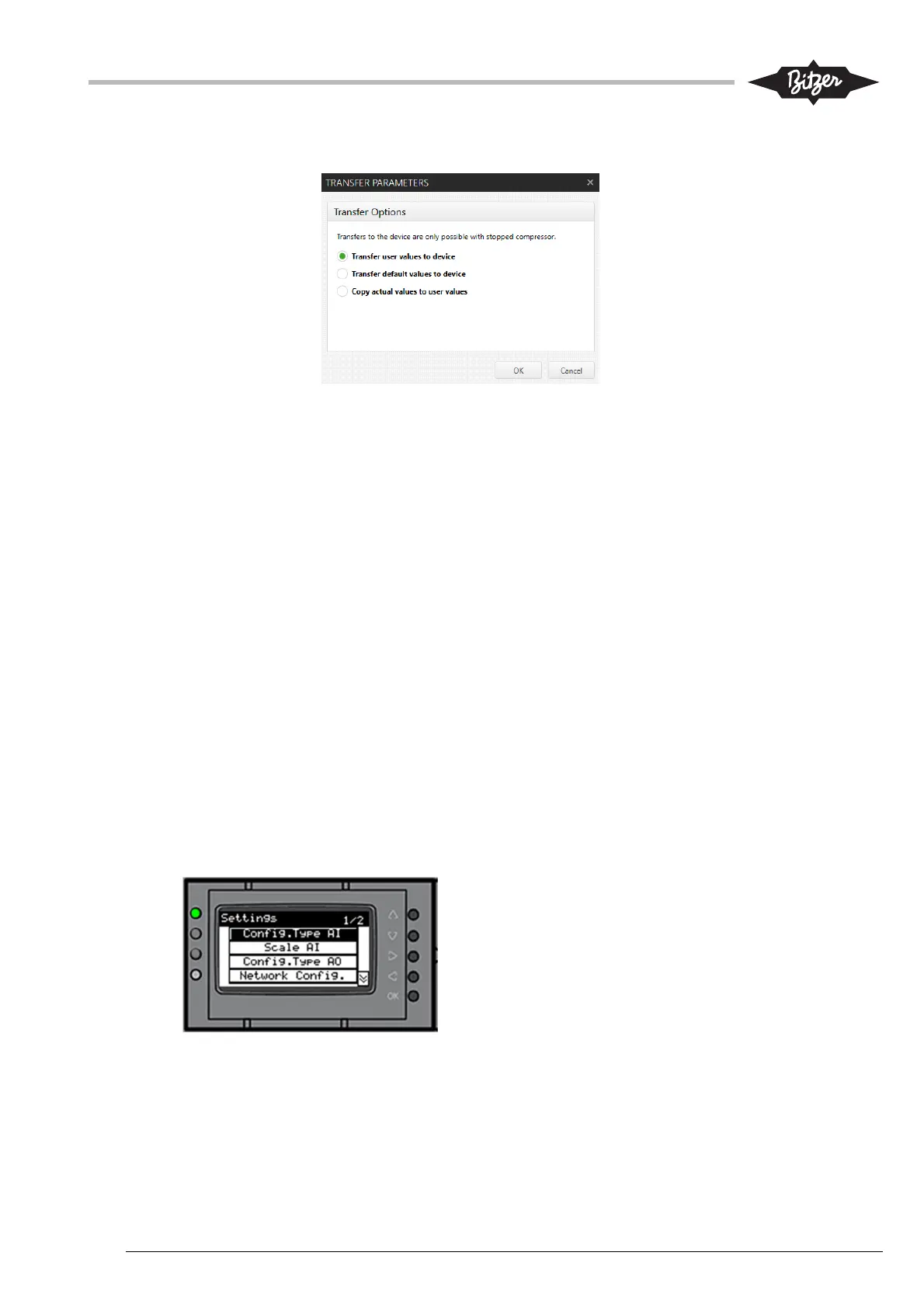

2. If the CM-SW-01 module is completely new: Transfer\Transfer default values to device. This is done
because new development of firmware may include changes to default values.
3. Copy actual values to user values
4. Modify various values manually in the right column (User Setting). Use parameters from tables in
section 0 for reference to setup correct values. Modbus address must be set according to type and
place on actual ACP.
5. Transfer values to the module.
9.6 Configuration, electrial panel IO-module (M172)
If not experienced in using the M172 HMI panel and keys, then first see section 10.15 on how to operate the
M172 user interface.
1. On the M172 module, go to Main Menu and select Settings.
2. Enter the password: “8260” and press OK to enter the Settings menu.
3. Configure analog inputs: Config.Type AI
Use table in section 13.5 for reference. Actual input types may differ and must be configured
according to sensor types used.
4. Scale analog inputs: Scale AI
