46 CT-600-2

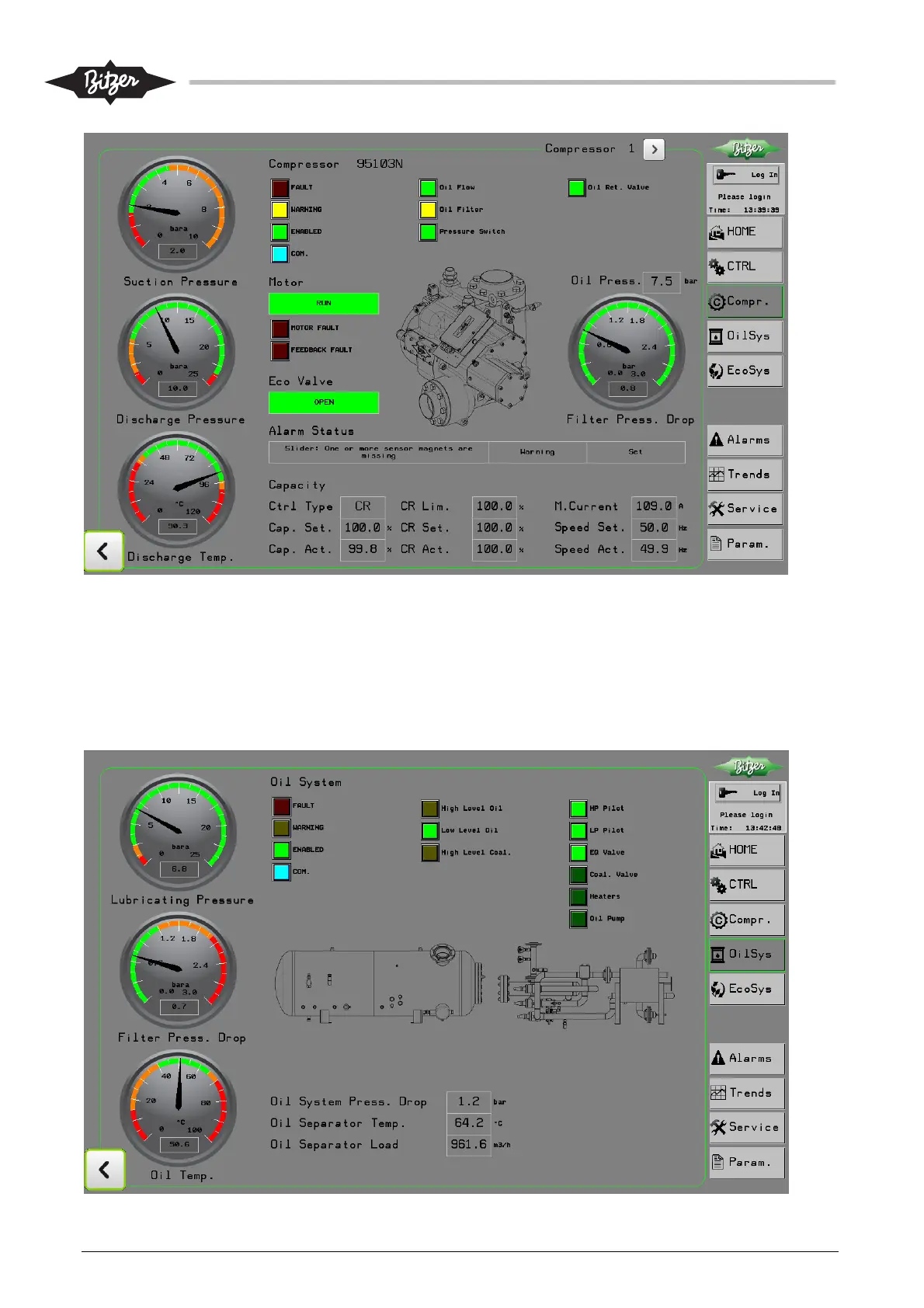

10.5 Oil system screen (OilSys)
This screen shows status and key parameters of the oil system. Lubricating pressure is defined as the
difference between the oil pressure after the filter and the suction pressure. Oil system pressure drop is
defined as the difference between the discharge pressure and the oil pressure after the filter. The oil
separator discharge flow is a calculated value based on the actual total capacity and the discharge gas
condition.
