CT-600-2 7
4 Technical data

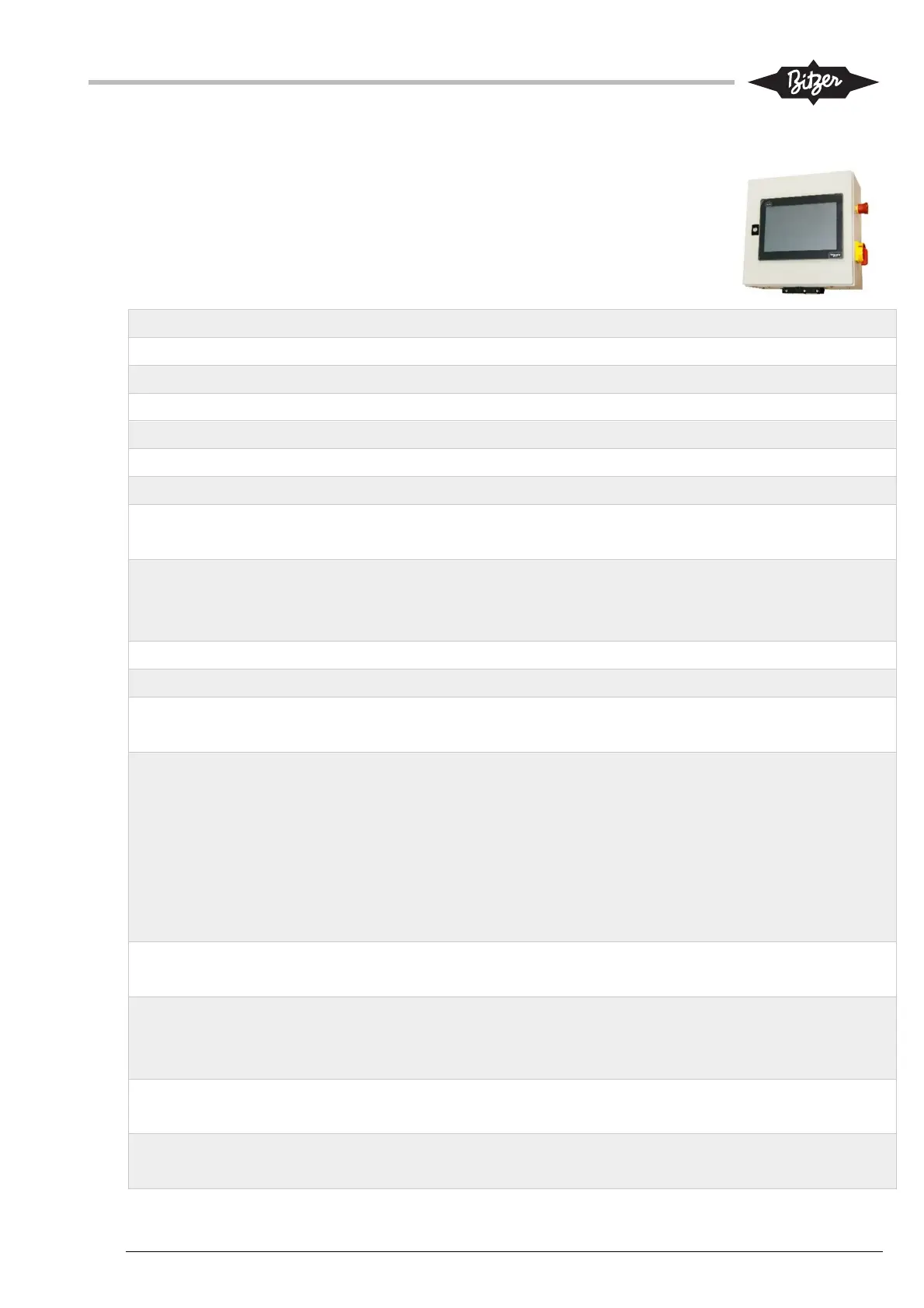

4.1 ACP LINK panel
The ACP LINK panel is to be mounted on a support on or close to the ACP unit
(see section 6.2). The panel is partly pre-wired by BITZER but must be finally
wired and connected on site by the customer (see section 7.1). See also section
13.1 and 13.2 for parameters settings.
Supplier WEG
Reference No. 31816777
Description BITZER ACP LINK panel
Dimensions H = 400mm, W = 400mm, D = 210mm
Color RAL 7035
Enclosure class IP54
Approvals UL/CSA/CE/IEC
Temp./humidity range Min. / max temperature: 0 / 55°C
Min. / max humidity: 10 – 90% (non-condensing)
Max. vibration levels According to EN/IEC 61131-2:
3.5 mm constant amplitude (f = 5…8.4 Hz)
9.8 mm/s
2
(f = 8.4…150 Hz)
Display Schneider HMIDT651 + HMIG3U
PLC Schneider TM251MESE
Emergency & power
switch
WEG BC01F
Breakers Main: 230V/120 Vac, 13A,
PLC, HMI, M172: 24 Vdc, 6A
OAHC (oil sep.): 230/120 Vac, 10A
Eco system: 230/120 Vac 10A
Compressor 1, 2, 3: 230/120 Vac, 4A
Schneider panel breakers Multi 9, C60SP, 1Pol, C3A
Schneider panel breakers Multi 9, C60SP, 2Pol, C4A, C6A, C10A, C13A
I/O Power supply, safety chain, start signal, communication to/from related modules
and plant.
Communication ports 2 x Modbus TCP/IP on PLC (for HMI, SCADA, Ethernet and Devices)
2 x Modbus TCP/IP on HMI (for PLC and Wifi access point)
1 x Modbus RTU (RS485)
Power supply 230 Vac / 120Vac, +10%/-15%, min. 16A
24 Vdc, +20%/-15%, min. 10A
Mounting Four M8 threaded holes, one in each corner of the back of the enclosure, for
mounting on a frame or support. Center distance between holes: 355mm.
