Appendix A: FAQ

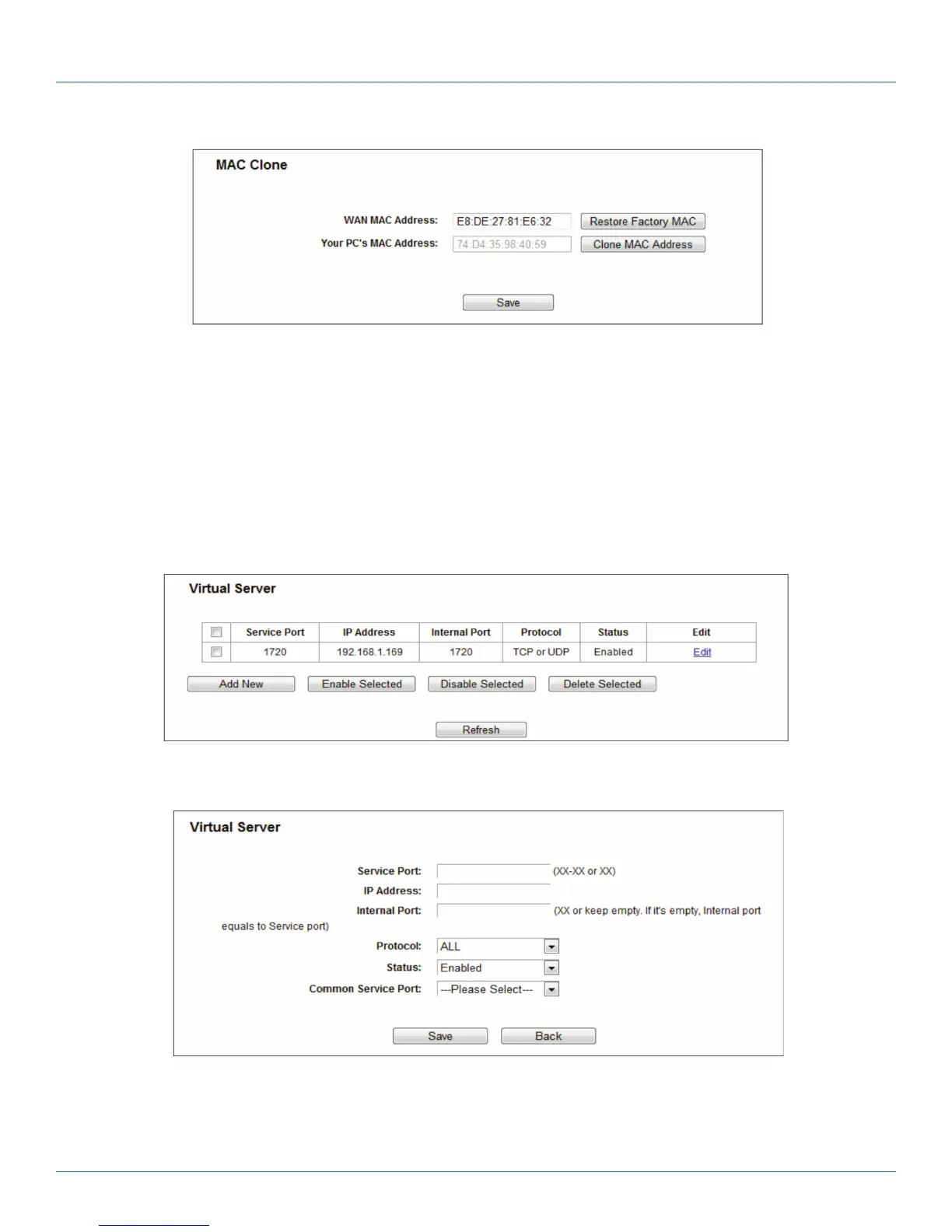

Figure A-3. MAC Clone.
3. I want to use Netmeeting, what do I need to do?
3a. If you start Netmeeting as a host, you don’t need to do anything with the router.
3b. If you start as a response, you need to configure Virtual Server or DMZ Host and make sure the H323 ALG is enabled.
3c. How to configure Virtual Server: Log in to the router, click the “Forwarding” menu on the left of your browser, and click the
"Virtual Servers" submenu. On the "Virtual Servers" page, click Add New. Then on the “Add or Modify a Virtual Server Entry”
page, enter “1720” for the “Service Port” blank, and your IP address for the “IP Address” blank, using 192.168.1.169 as an exam-
ple; remember to Enable and Save.
Figure A-4 Virtual Servers.
Figure A-5 Add or Modify a Virtual server Entry.
NOTE: The opposite side should call the WAN IP, which is displayed on the “Status” page.
