Chapter 2: Overview
2.4.2 Back Panel

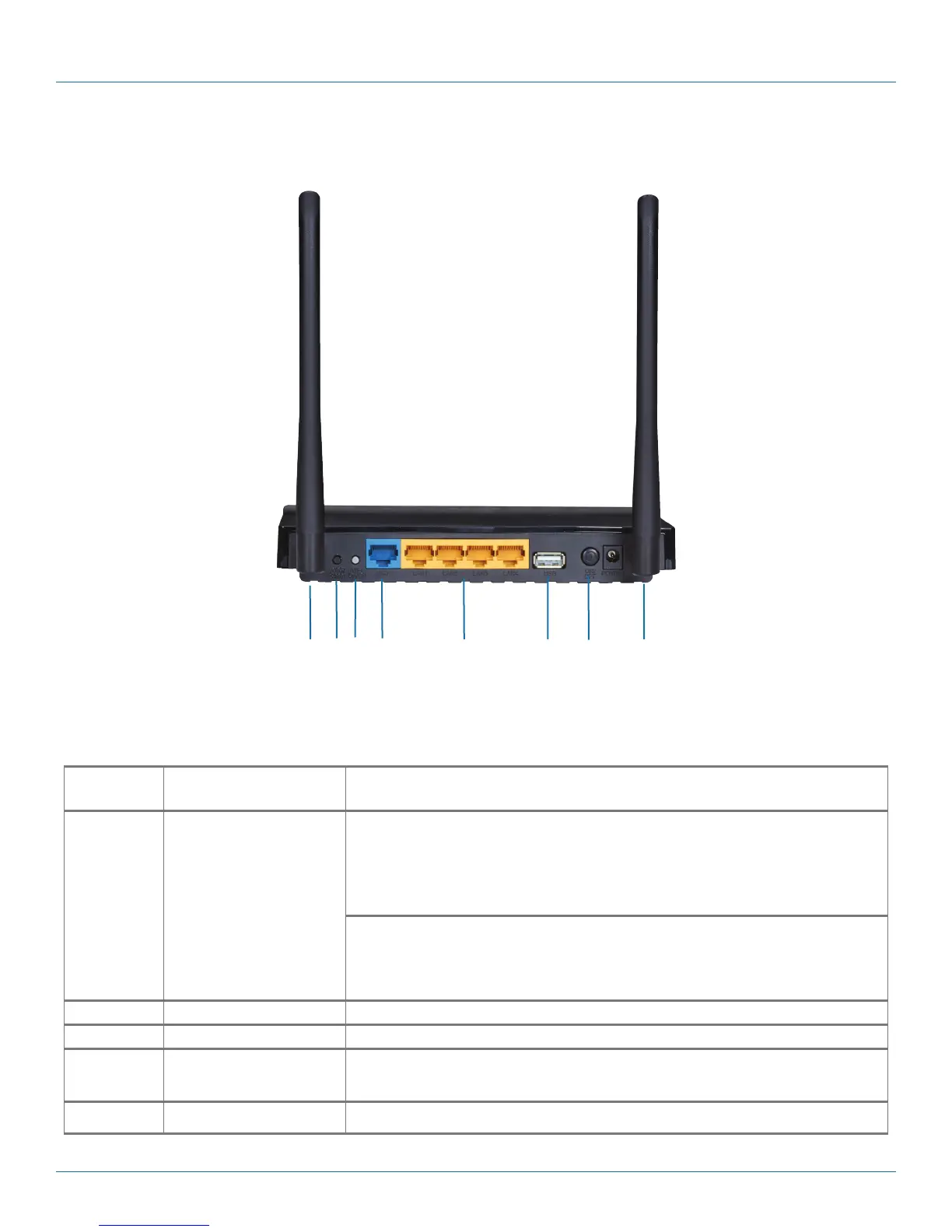

Figure 2-2 shows the back panel of the router. Table 2-2 describes its components.
1 2 3 4 5 6 7 8
Figure 2-2. Router's back panel.
The following parts are located on the back panel (View from left to right).
Table 2-2. Back-panel components.
Number in
Figure 2-2
Component Description
1 WPS/Reset button Pressing this button for less than 5 seconds enables the WPS function. If your
client devices, such as wireless adapters, support Wi-Fi Protected Setup, then you
can press this button to quickly establish a connection between the router and
client devices and automatically configure wireless security for your wireless
network.
Pressing this button for more than 5 seconds enables the Reset function.
With the router powered on, press and hold the WPS/Reset button
(approximately 8 seconds) until all LEDs are lit. And then release the button and
wait for the router to reboot to its factory default settings.
2 Wi-Fi button The button for turning on/off the wireless function.
3 (1) RJ-45 WAN port This port is where you will connect the DSL/cable Modem, or Ethernet.
4 (4) RJ-45 connectors for
LAN Ports 1, 2, 3, 4
These ports (1, 2, 3, 4) connect the router to the local PC(s).
5 (1) USB Type A connector The USB port connects to a USB storage device.
