Chapter 4: Quick Installation Guide

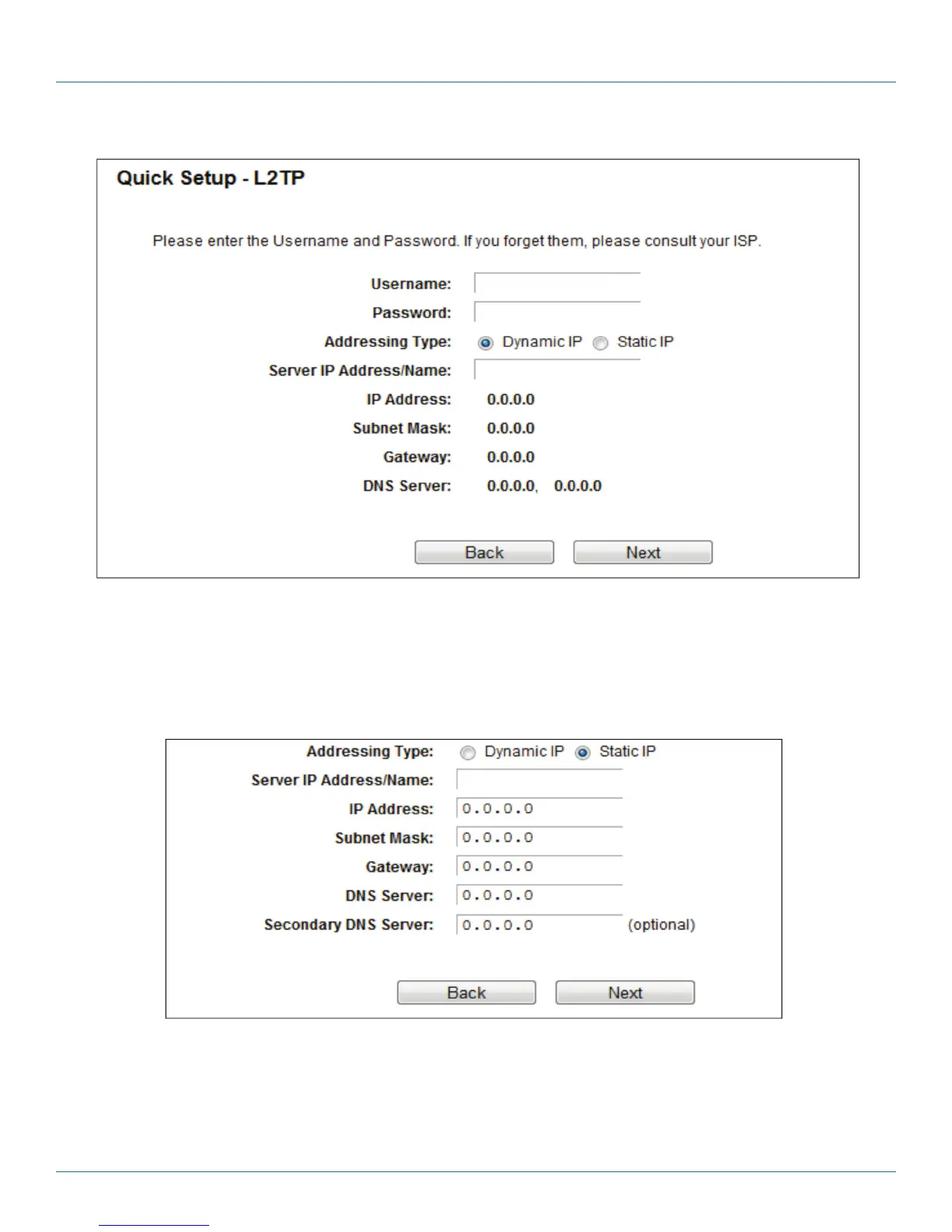

Figure 4-10. Quick Setup—L2TP/Russia L2TP.
• Username/Password—Enter the Username and Password provided by your ISP. These fields are case-sensitive. If you have
difficulty with this process, contact your ISP.
Select Static IP if the IP Address/ Subnet Mask/ Gateway and DNS server address have been provided by your ISP. Then please
enter server IP address or domain name provided by your ISP, and also enter the corresponding parameters.
Figure 4-11. Static IP screen.
Select Dynamic IP if none of the above parameters are provided. Then you just need to enter server IP address or domain name
provided by your ISP.
