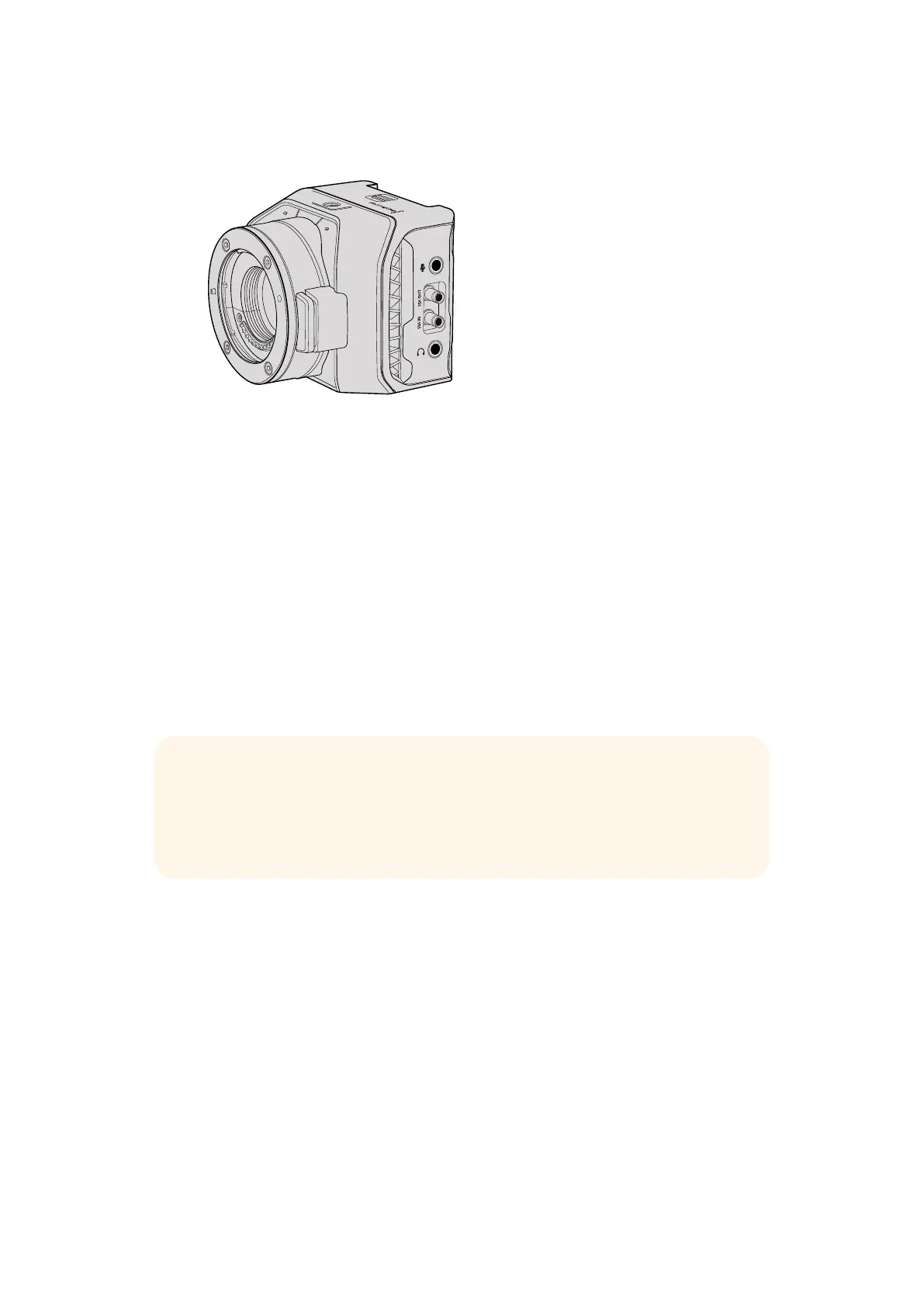

Blackmagic Micro StudioCamera4K – Right Side
Analog Audio In
The 3.5mm stereo audio connector accepts microphone or line level audio. You can switch
between these options in the camera’s ‘audio settings’ menu. It’s important to select the
appropriate setting or your audio may sound too quiet or too loud.
SDI Out
Use the SDI out connector to output 10-bit 4:2:2 video to professional SDI video equipment
such as routers, monitors, SDI capture devices and broadcast switchers. Blackmagic Micro
Studio Camera 4K supports 6G-SDI. You will need a DIN 1.0/2.3 to BNC adapter cable to
connect to devices with full size BNC connectors.
SDI In
Use the SDI in connector to control your Micro Studio Camera 4K via ATEM switchers. Refer to
the section ‘Introducing Camera Control’ for information about which controls are available.
Headphone / Talkback audio
The 3.5mm headphone / talkback input lets you talk to the control room with iPhone or Android
style headsets. Double press the play/pause button on your headset to enable talkback, and
press once to disable. Audio is embedded into channel 15 and 16 of the SDI signal output.
TIP You can also control your Micro Studio Camera via a Blackmagic 3G-SDI Arduino
Shield. The shield embeds the same Blackmagic control data packets in the SDI signal
as you would get with an ATEM switcher. This means by connecting the program return
feed from any SDI switcher, through the shield to the SDI input on your camera, you can
access all the same Blackmagic camera controls you get with ATEM switchers.
1616Camera Connections
