Connecting to Recorders
If you simply wish to record your Studio Camera’s output, you can connect the SDI output to the
SDI input of an SSD recorder such as the Blackmagic HyperDeck Shuttle. The SDI output from
the HyperDeck can then be connected to the Studio Camera’s SDI input, so you can view your
recordings on the camera’s LCD.

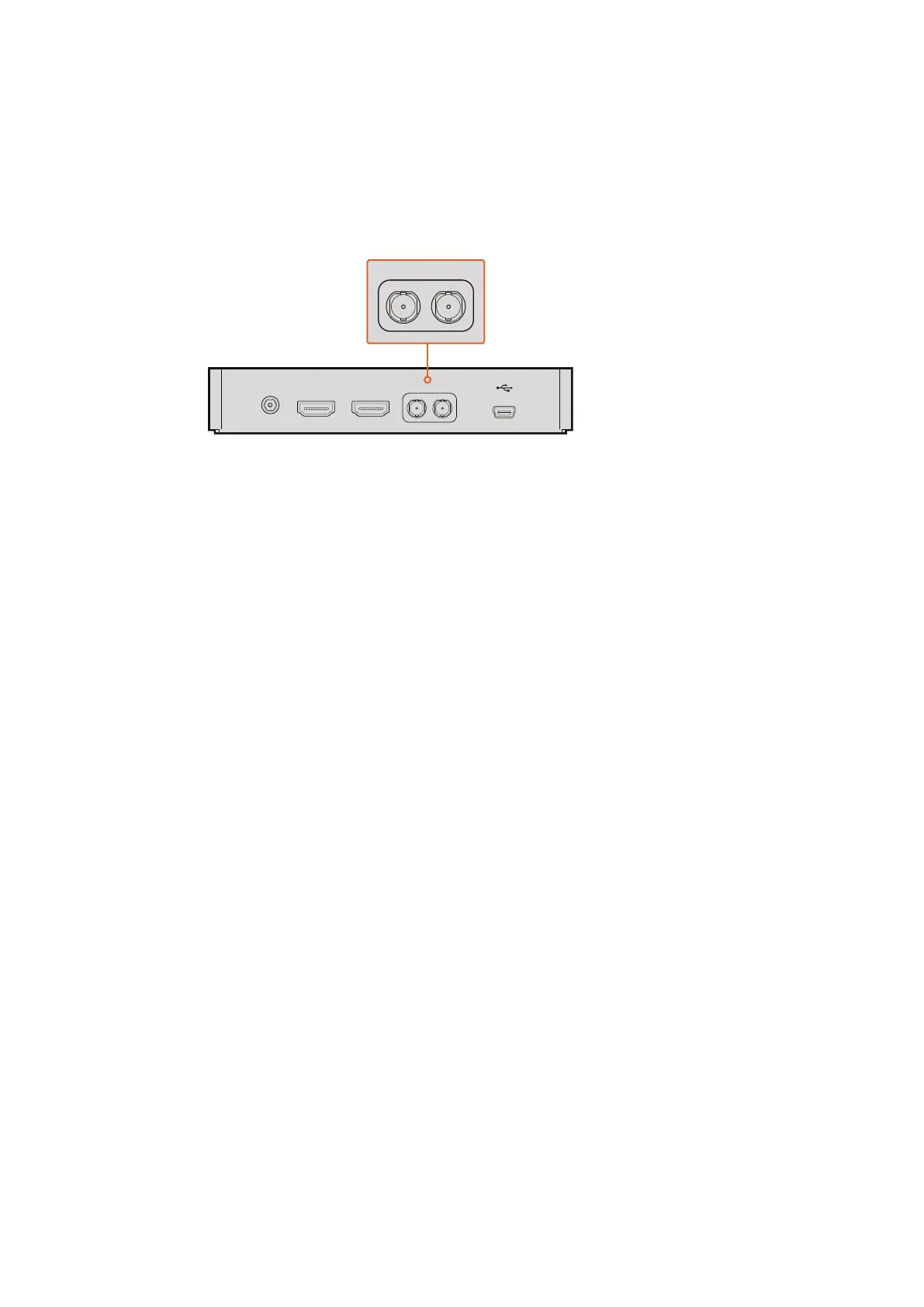

Connect the camera’s SDI output to the HyperDeck’s SDI input and connect the
HyperDeck’s SDI output to the camera’s SDI input to view your recordings.
Remote Record
Blackmagic Micro Studio Camera 4K automatically sends a signal via the SDI or HDMI output
that will trigger recording when connected to equipment that supports the trigger record
feature, such as Blackmagic Video Assist.
To trigger recording on your external equipment, you can connect a hand grip with a record
trigger switch to your camera via the LANC or S.Bus connectors on the expansion cable.
Thenwhen you press record on the hand grip, your external equipment will start recording, and
will stop recording when you press record again.
You will also need to set your equipment to enable SDI or HDMI trigger recording to make sure
it responds to the trigger signal from your Micro Studio Camera 4K.
The Blackmagic SDI Control Protocol can also be used to trigger remote recording.
For more details, refer to the developer information section in this manual.
RAW SDI Output
Blackmagic Micro Studio Camera 4K also has a ‘RAW’ mode which outputs bayered sensor data
over the SDI output. This allows you to perform your own debayering of the image data from
the sensor.
For more information refer to the ‘RAW SDI Output’ section in the developer information section
in this manual.
