Blackmagicdesign Studio Camera User Manual

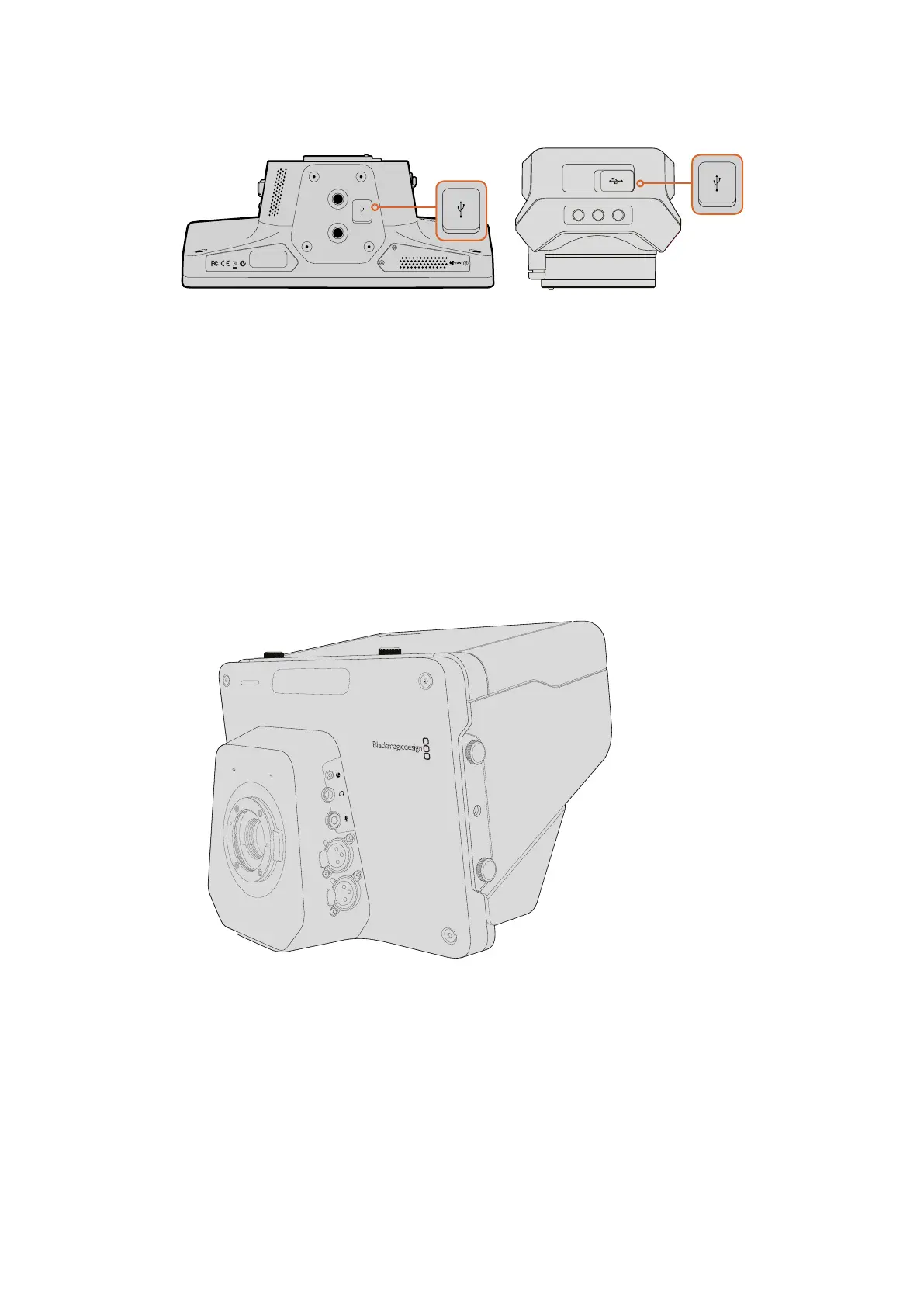

The Mini-B USB 2.0 ports are located on the underside of the cameras.
Attaching Accessories
Sun Shade
The Studio Cameras include a foldable sun shade to shade the LCD in bright conditions and
ensure optimum viewing is possible at all times.
1 Locate the 6 thumbscrews that are included with your Studio Camera.
2 Align the holes in the sun shade with the camera’s mounting points and screw in
2thumbscrews to the top and each side of the camera to firmly secure the sun shade.
Other Accessories
For studio use, you might want to mount the camera on a pedestal and add rails for large
broadcast lenses and teleprompters. For outside broadcast use, your may want to attach
microphones, external batteries, or LANC remote controllers. The camera includes two 3/8”
mounting points on the bottom, and ten 1/4” mounting points on the sides and the top.
This means you have the flexibility to customize your rig for any size production.
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICA
L OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICAL OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICAL OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
1
1
3
PUSH
2
2
1
3
PUSH
2
3434Attaching Accessories

Blackmagicdesign Studio Camera Specifications

General

Power	12V DC
Frame Rates	23.98, 24, 25, 29.97, 30
Audio Input	2 x XLR
Video Output	HDMI, 6G-SDI, 3G-SDI
Power Input	12V DC
Connections	XLR
