Blackmagicdesign Studio Camera - Page 644

Example Protocol Packets
Operation
Packet
Length Byte

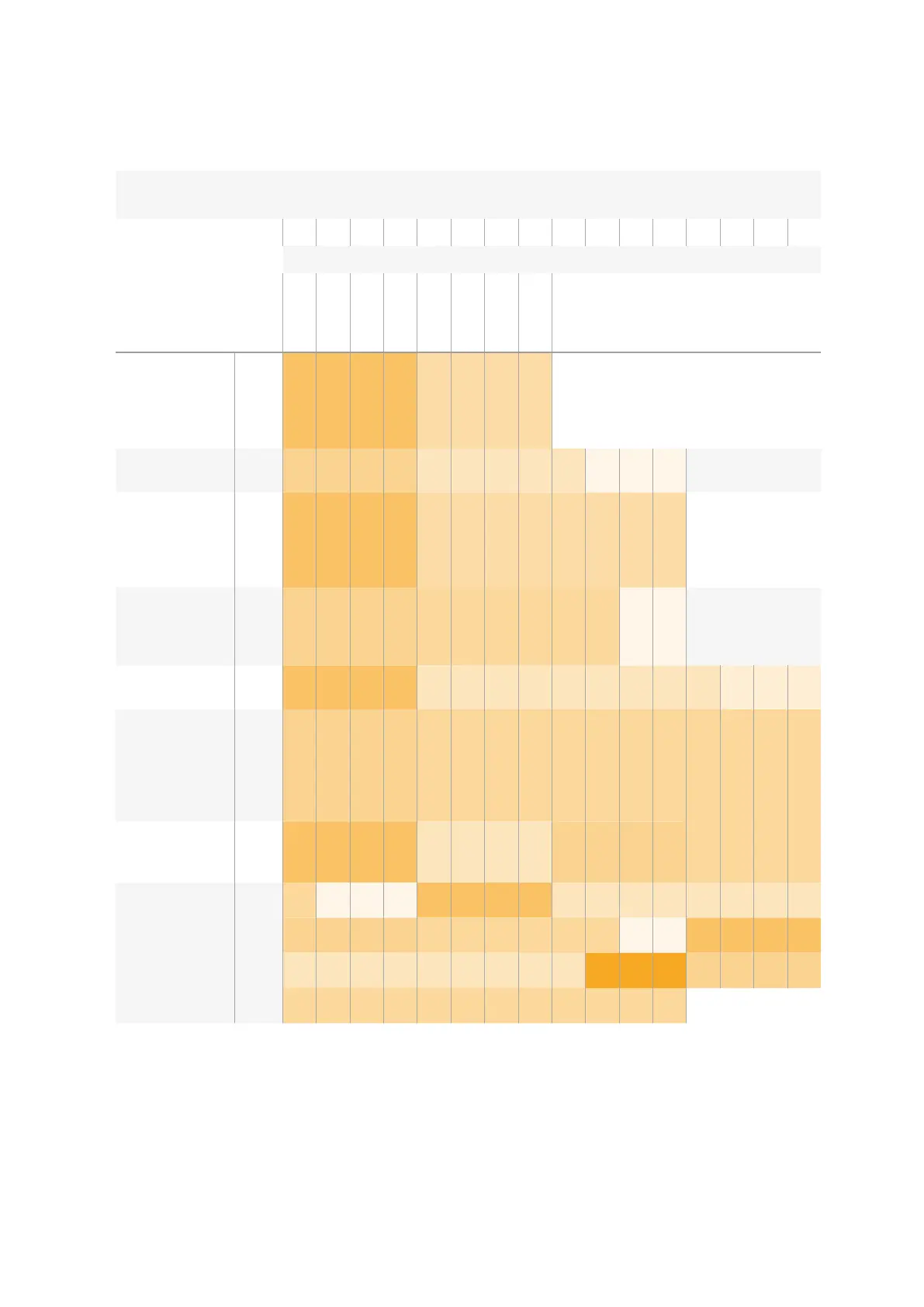

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
header command data
destination
length
command
reserved
category
parameter
type
operation
trigger
instantaneous auto
focus on camera 4 8 4 4 0 0 0 1 0 0
turn on OIS on all
cameras
12 255 5 0 0 0 6 0 0 1 0 0 0
set exposure to 10
ms on camera 4 (10
ms = 10000 us =
0x00002710)
12 4 8 0 0 1 5 3 0 0x10 0x27
0x00 0x00
add 15% to zebra
level(15 % = 0.15 f =
0x0133 fp)
12 4 6 0 0 4 2 128 1 0x33 0x01 0 0
select 1080p 23.98
mode on all cameras
16 255 9 0 0 1 0 1 0 24 1 3 0 0 0 0 0
subtract 0.3 from
gamma adjust for
green & blue (-0.3 ~=
0xfd9a fp)
16 4 12 0 0 8 1 128 1 0 0 0x9a 0xfd 0x9a 0xfd 0 0
all operations
combined 76 4 4 0 0 0 1 0 0 255 5 0 0 0 6 0 0
1 0 0 0 4 8 0 0 1 5 3 0 0x10 0x27
0x00 0x00
4 6 0 0 4 2 128 1 0x33 0x01 0 0 255 9 0 0
1 0 1 0 24 1 3 0 0 0 0 0 4 12 0 0
8 1 128 1 0 0 0x9a 0xfd 0x9a 0xfd 0 0
