Group 08, Section 05, Page 4 Mechanical Dock Leveler – M and FMC
Issue Date: 10/01/01, Rev, 0 (Part #038-550E)
REWIND SPRING REPLACEMENT – cont’d
16) Raise and lower the release handle to
assure free movement of the lock roller
and counter weight.
IMPORTANT: Do not lubricate anything
in the interior of the hold down box.
17) Replace the hold down box cover, two
bolts, positioning the cover 1/16”
maximum above the rewind wheel top
surface. The box cover acts as a cable
retainer to prevent the hold down cable
jumping off the rewind wheel, but must
not interfere with rewind wheel rotation.
18) Exist pit area. Remove safety stand and
lower maintenance strut. Grasp the
leading edge of the lip and pull the deck
down to approximately 6” above dock
height. Lift the lip approximately 2” to
release the lip lock and lower to its
hanging position. See Figure 27.
The lip is heavy, handle with care and
be alert to pinch points.
19) Walk the deck down to stored position,
Cycle the unit up and down several
times, stopping the deck at numerous
positions above and below dock height
to assure the hold down system will hold
the deck in any position.

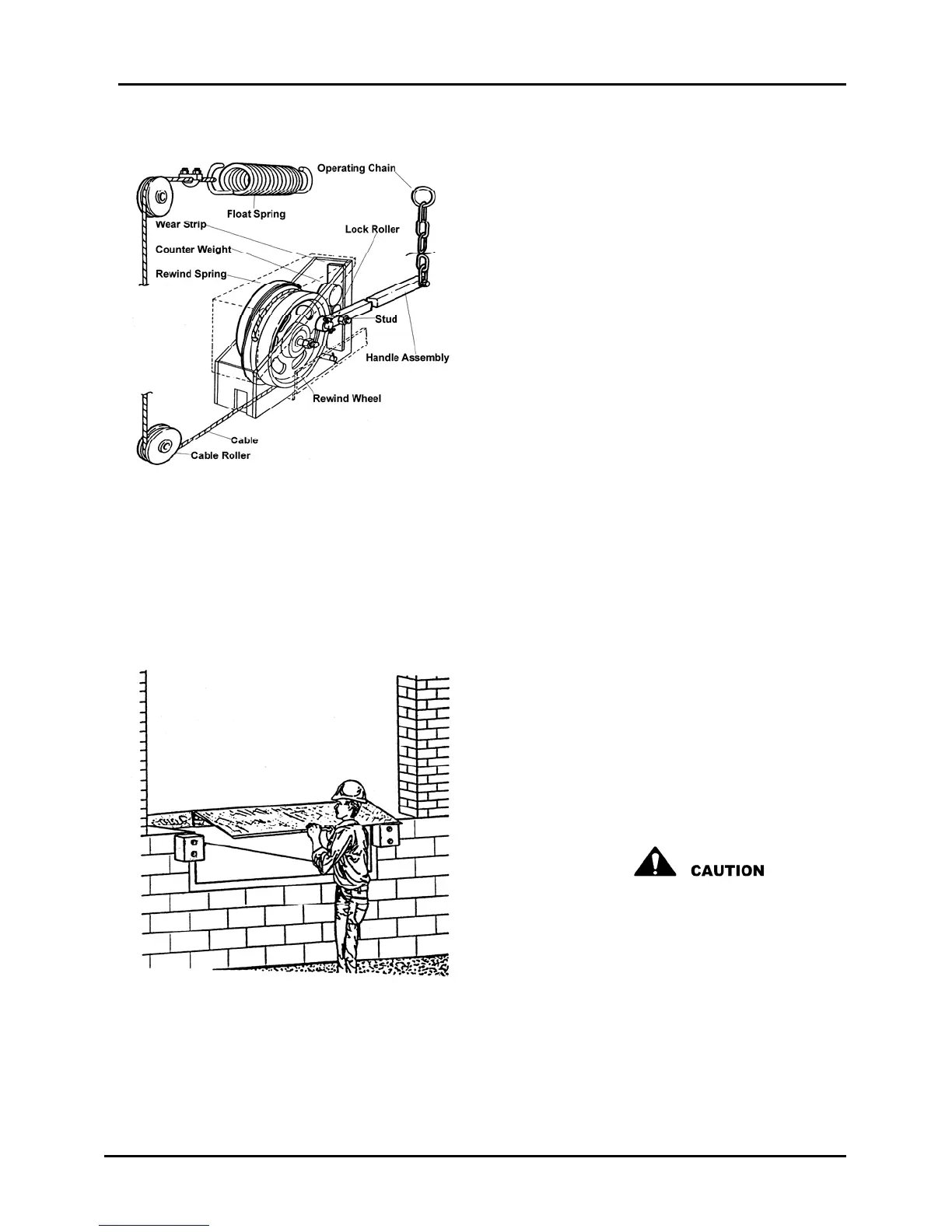

Figure 26
Figure 27
