Bodet NETSILON 7 User Manual

23

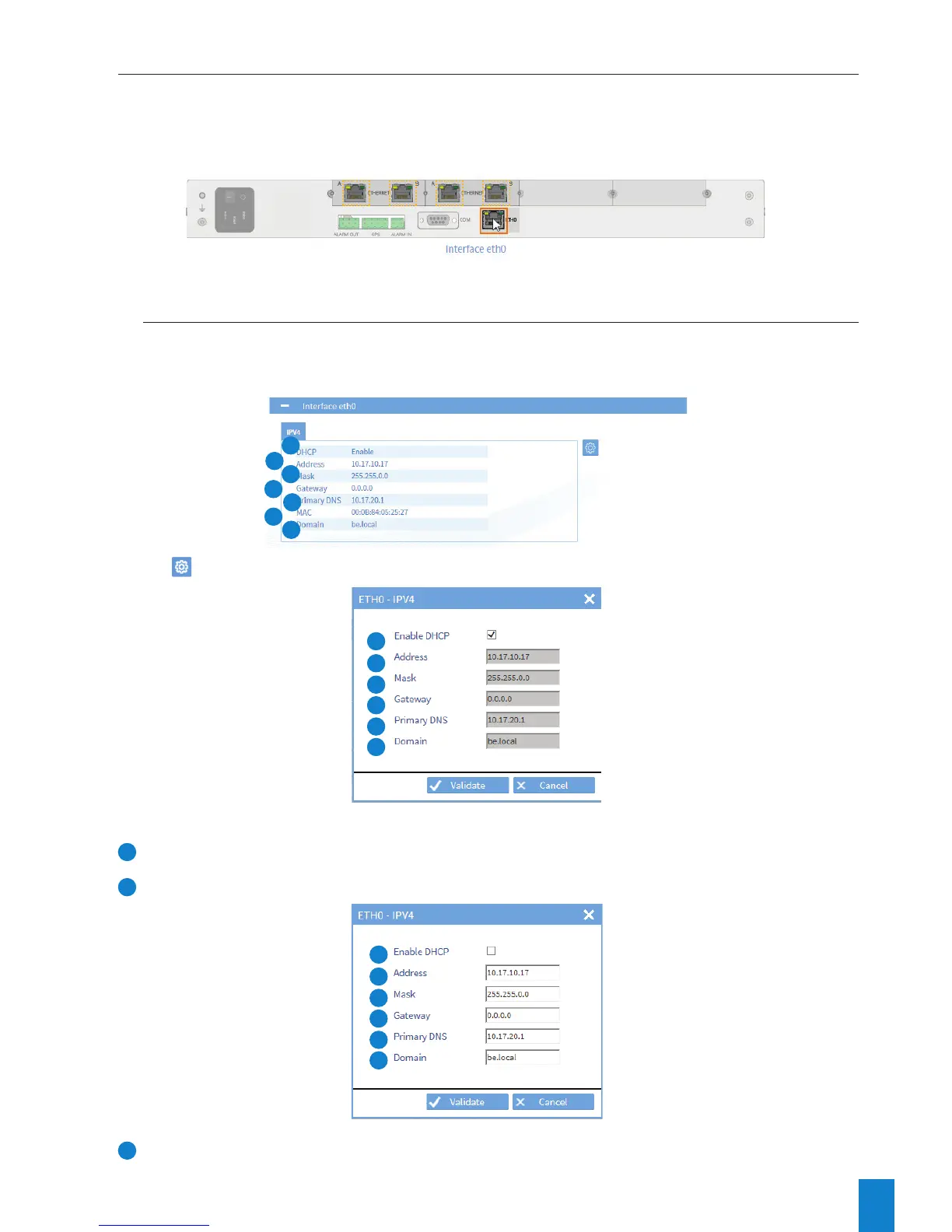

4.4 Conguringthecomputernetwork
1) Click on the NETWORK to configure the network interfaces.
For network interface configuration, navigation is interactive: move the mouse over the connector of the interface to
be configured, then click on it:
4.4.1. ETH0Ethernetportconguration
To configure a network output, follow these steps:
1) NETWORK menu > Interfaces > ETH0 interface:
2) Click , and the following window will appear:
3) Configure the various parameters:
1
With a DHCP server: check the box. The IP address and network settings will be assigned automatically.
2
Without a DHCP server: manually enter the fixed IP address for this network port.
3
Enter the subnet mask in order to define the IP addresses of products which will be able to communicate with
Netsilon.
1
2
3
4
5
6
7
1
2
3
4
5
7
1
2
3
4
5
6
