Handling of the Objects
16.4.3.2 Behavior in Quick Stop

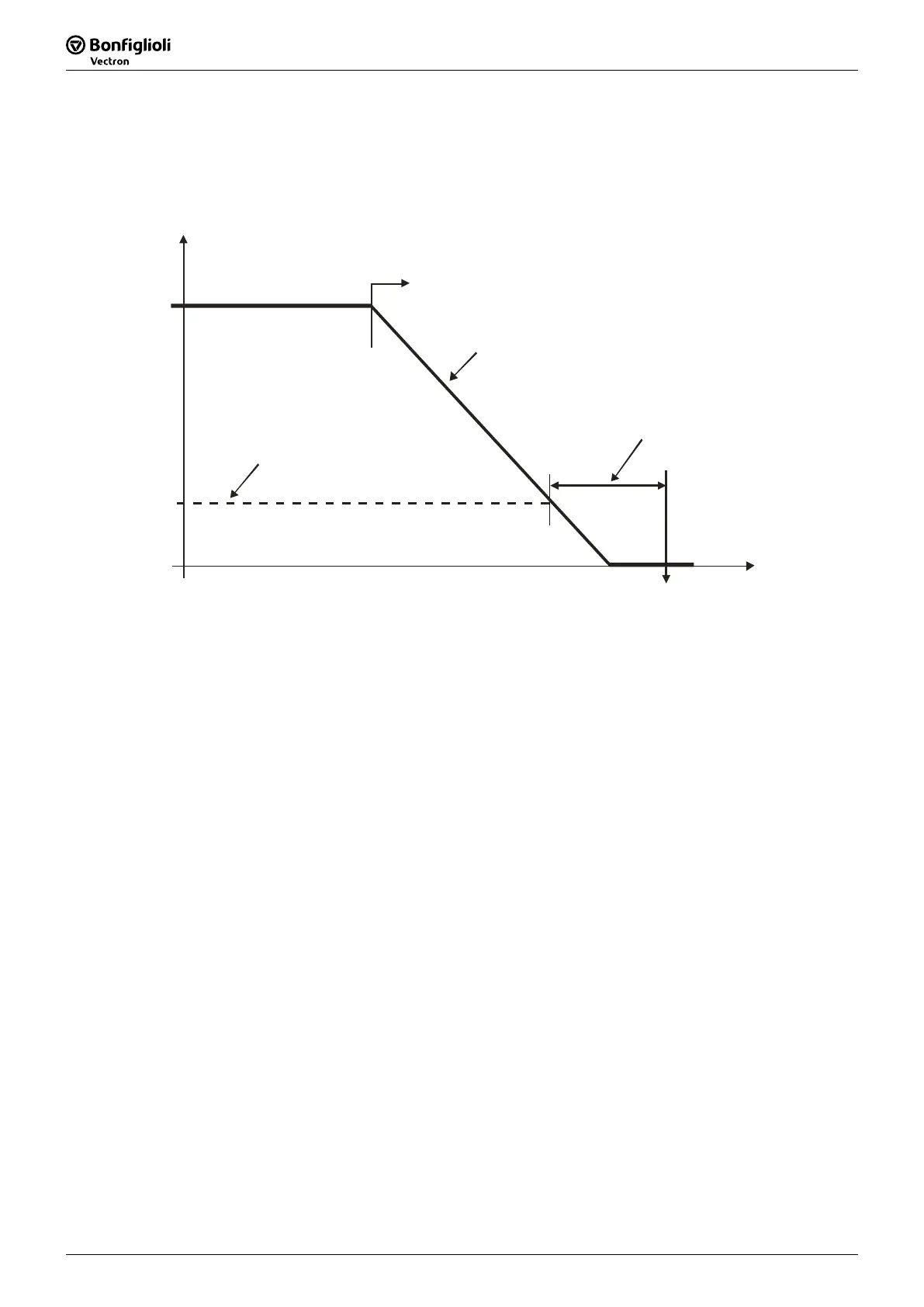

In this, the parameters
Switch-off Threshold Stop Function
637 (percent of fmax) and
Stop Function 638 (holding time after falling short of the switch-off threshold) are relevant. In a quick
stop, the drive is shut down via the emergency stop ramps (
Emergency Stop Clockwise 424 or
Emergency Stop Antclockwise
425).
f
s
Start Quick Stop
OFF
change of state
t
Switch-off Threshold Stop Fct.
637
Emergency Stop Clockwise 424
425
Emergency Stop Anticlockwise
Holdig Time Stop Function
638
If the frequency/speed zero has been reached during the holding time, the drive contin
supplied with direct current until the switch-
off time has expired. With this measure, there is an
assurance that the drive is stationary in a change of state.
