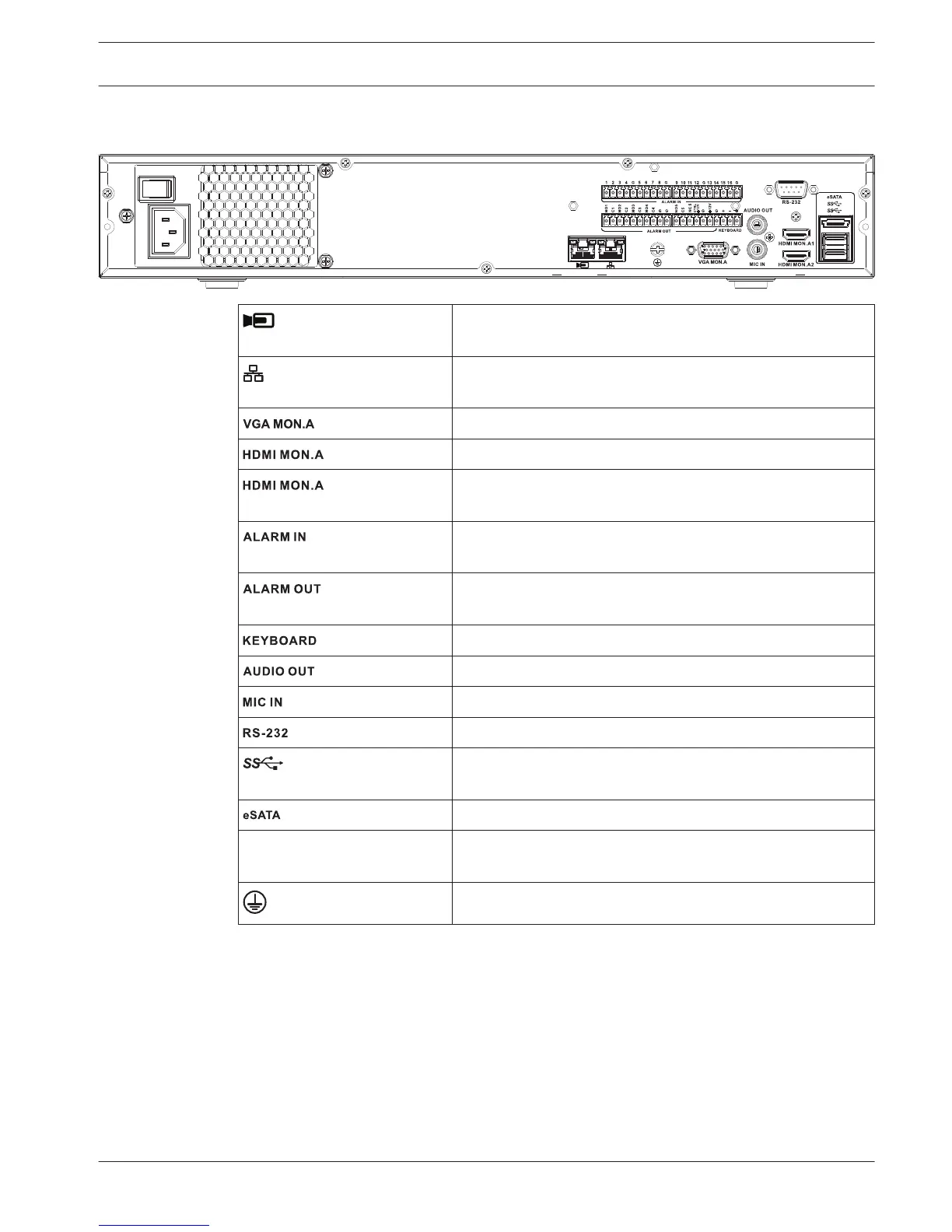

Back panel connectors DIVAR network 5000 (no PoE)
RJ45 video input for max. 32 IP cameras connected via
external switch (optional with DHCP configuration)
RJ45 Ethernet connection (10/100/1000Base-T according to
IEEE802.3)
1 D-SUB (Monitor output)
1 1 HDMI (Monitor output in maximum 4k resolution)
2 1 HDMI (output for spot monitor that supports live
multiscreen)
16 screw terminal inputs, cable diameter AWG26‑16 (0.4–
1.29 mm)
6 screw terminal outputs, cable diameter AWG26‑16 (0.4–
1.29 mm)
Screw terminals, cable diameter AWG26‑16 (0.4–1.29 mm)
1 RCA (Audio output)
1 RCA (Audio input)
DB9 male, 9-pin D-type (for service)
Two USB (3.0) connectors for mouse or USB memory device;
one USB (2.0) also on front panel
For backup/memory device
Power input with On/Off
switch
100~240 VAC, 50-60 Hz, 1.9 A, 75 W
Ground connection
