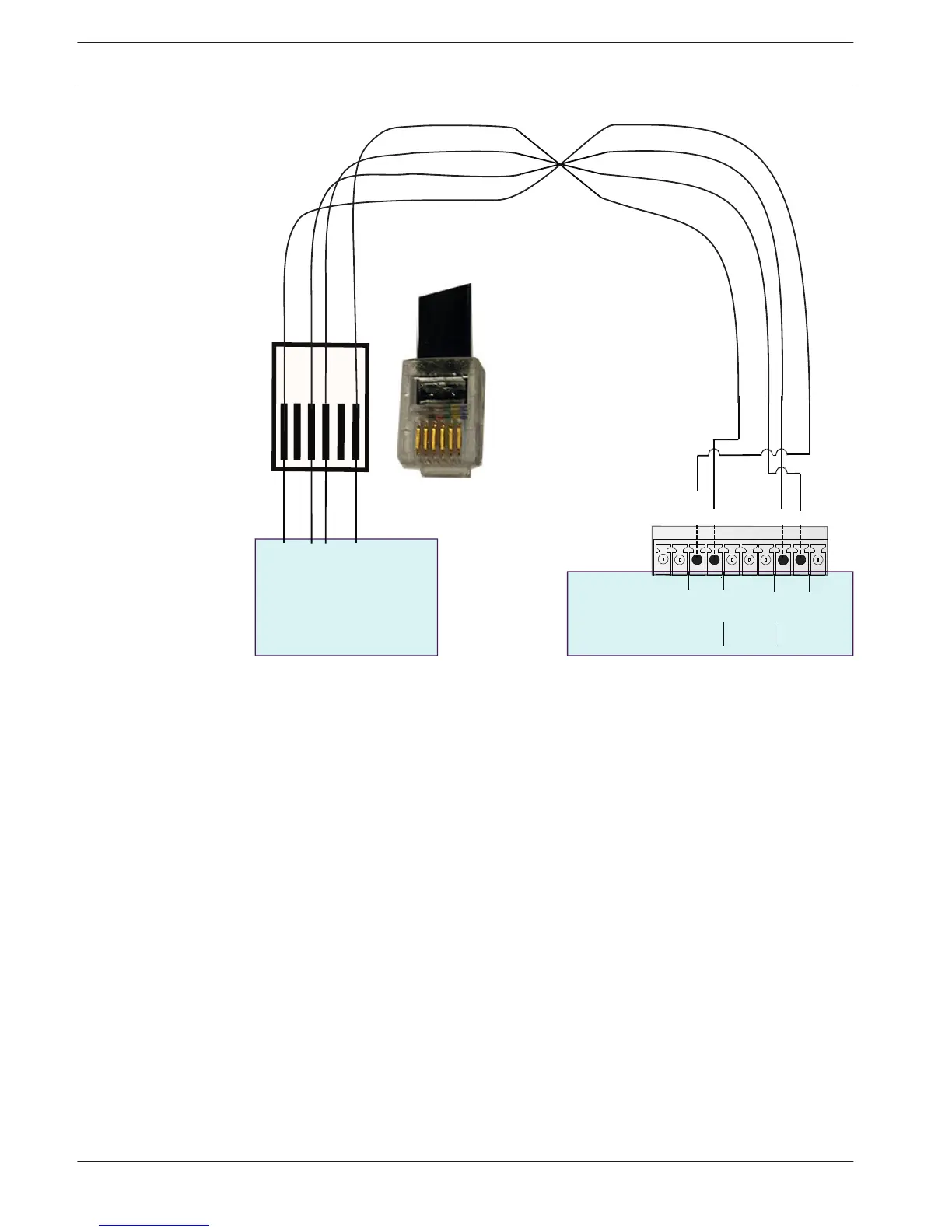

RS-485 KEYBOARD
power to
keyboard
keyboard
control
+12V
Keyboard RJ11 cable (or equivalent)
G
G
+
_
G
G
+
_
G
+12V
CTRL
+12V
_
+
DIVAR 5000
KEYBOARD
+12V
+
_
G
+12V
G
G
+12V
_
+
+
_
RS485 port connection (only hybrid models)
Use the RS485 connector to connect Bosch, Pelco-P or Pelco-D controllable cameras to the
unit for pan, tilt, and zoom control. RS485 is a single-direction protocol; the PTZ device can’t
return any data to the unit.
Since RS485 is disabled by default for each camera, you must enable the PTZ settings as
follows:
1. Connect a suitable cable to the RS485 connection on the DVR rear panel.
2. Connect the other end of the cable to the appropriate pins in the camera connector.
3. Follow the instructions in the Operation section of this manual to configure the camera
for PTZ control.
The Bosch protocol is supported with the following baud settings:
9600 baud
8 data bits
1 stop bit
no parity
no flow control
7.2
28 en | Hardware setup
DIVAR 2000 / DIVAR 3000 / DIVAR
5000
2016.09 | v1.0 | AM18-Q0717 Operation Manual Bosch Security Systems
