Bose ControlSpace AMS-8 Safety Instructions & Installation Guide

English
17
1..8
10
24 Vdc
CS-AMS-8
+
-
24 Vdc
9
10
Open collector
Max. 50mA
CS-AMS-8
+
-
ControlSpace
®
AMS-8 includes one GPIO / Ethernet card (see also chapter 3.2).
Up to 40 GPIO contacts (8 per rack, max 5 rack frames in total) can be used to trigger up to 40 messages,
up to 40 room combine presets or the Room Standby function (‘mute’) on different or all outputs.
The contacts are triggered by applying 24VDC between the specific contact and the common ground pin.
NOTE: A ‘Pulse’ contact will play a message once. A ‘Hold’ contact will play and repeat a message until the
contact is released. Use a hold contact to activate room combining or standby mode (release this contact to
de-activate these two functions)
Characteristics
•8isolatedinputs
•1isolatedoutput
•Inputscanbeusedformessagerouting,roomcombiningortoputanoutputorgroupofoutputsinstandby
mode (outputs will return to default value when contact is released again)
•Opencollectoroutputisactivatedwhenoneoftheeightinputsisactivated

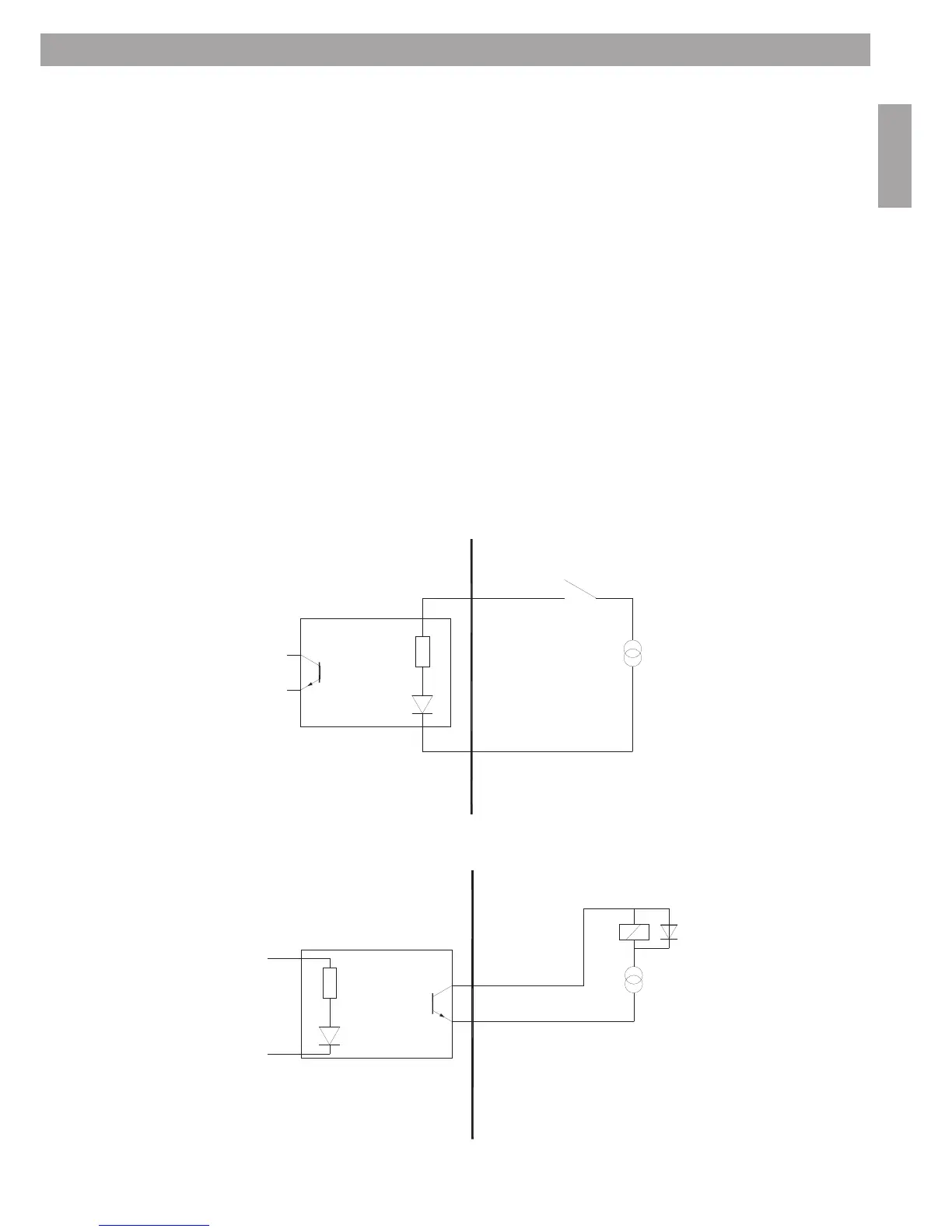

Wiring diagram of the 8 input contacts
Wiring diagram of open collector output
3. System Installation
3.9 General Purpose Inputs / Outputs (GPIO)
CS-AMS-8
CS-AMS-8
