40
English
40
Dansk
*
*
*
*
3. Installation af systemet

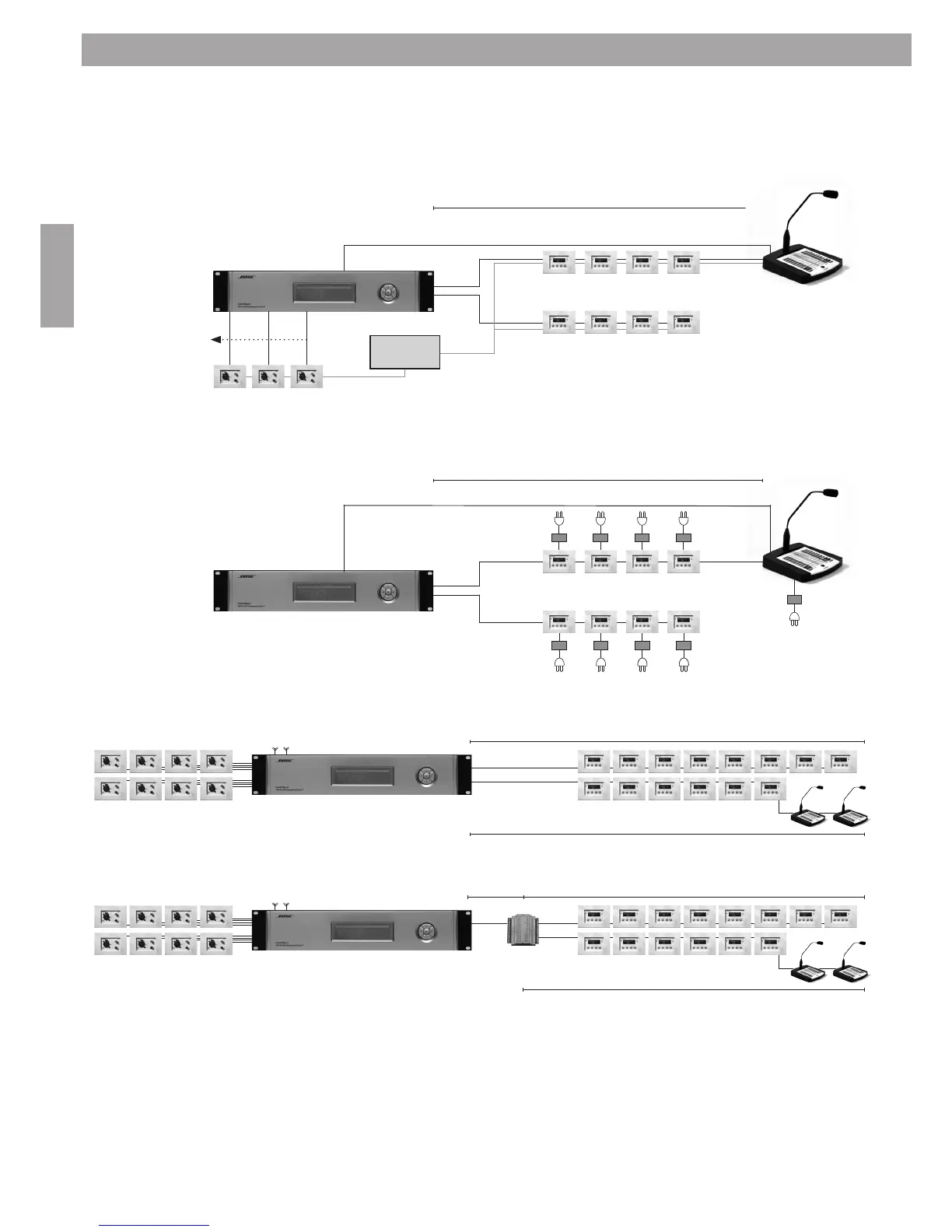

3.5 Systemopbygning
To RS485-kommunikationslinjer og en central strømforsyning:
To RS485-kommunikationslinjer og lokale strømforsyninger:
RS485-kommunikationslinje maksimumafstanden:
eller:
BEMÆRK!
* Slutjumperen skal placeres på det sidste betjeningspanel (CS-WC eller CS-PP), der sidder på hver af RS485-
kommunikationslinjerne.
Flere systemeksempler kan findes I Annex A.
Mikrofonkabel
Maks. 600 m (samlet længde)
Strømforsyning
24VDC 2-7A
Mikrofonkabel
RS-485
RS-485
DC 24V
input
Maks. 600 m (samlet længde)
RS-485
RS-485
Strømforsyning
Strømforsyning
Strømforsyning
Mikrofonkabel
600 m
600 m
600 m600 m
600 m
RS485
HUB
