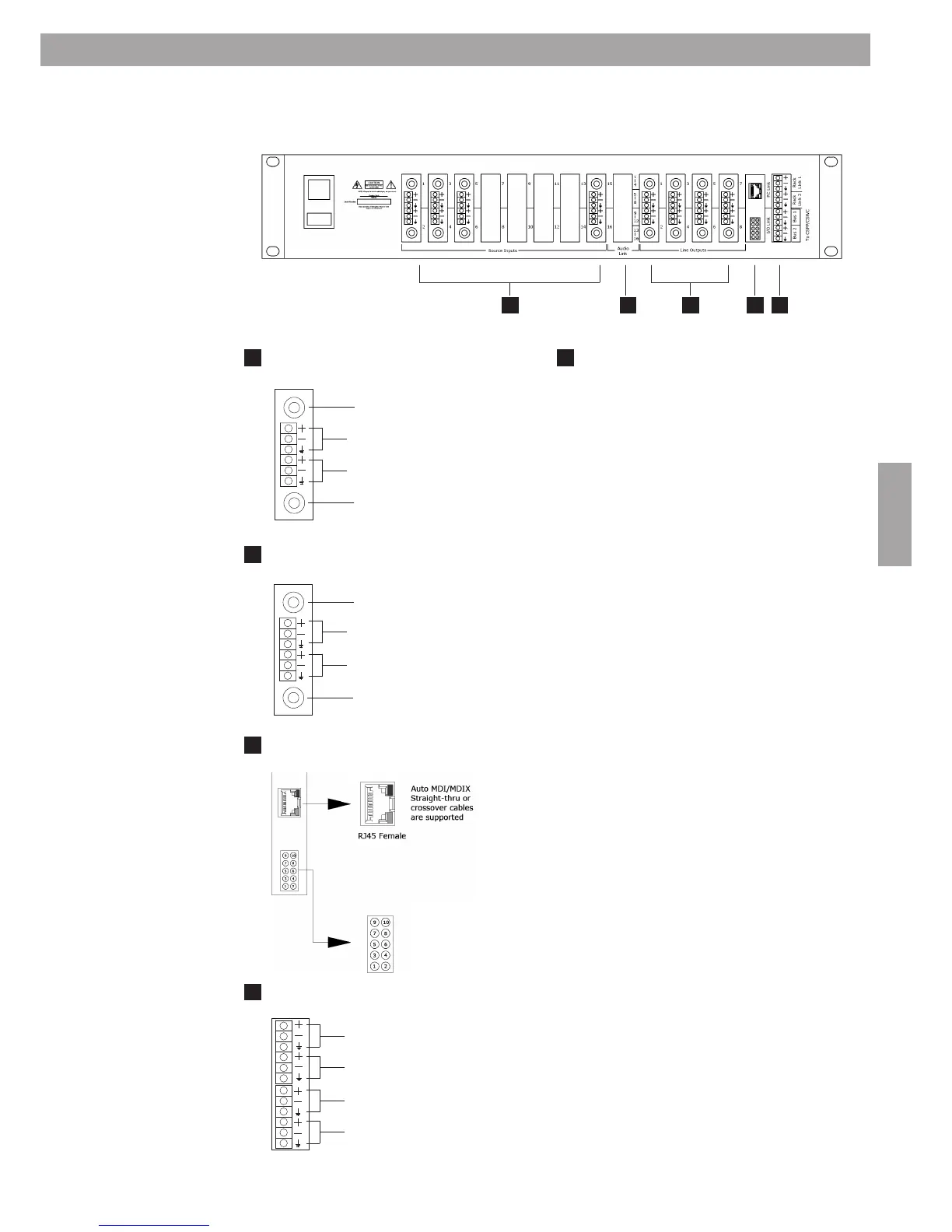

3. Instalación del sistema
3.2 Panel trasero del ControlSpace
®
AMS-8
Entrada conector RCA
(Nivel de línea desbalanceada)
Entrada conector en Euro Block 3-pin (Nivel
de línea balanceada)
Entrada conector en Euro Block 3-pin (Nivel
de línea balanceada)
Entrada conector RCA
(Nivel de línea desbalanceada)
Entrada de línea (1-16)
CS TIC
Salida conector RCA
(Nivel de línea desbalanceada)
Salida conector en Euro Block 3-pin
(Nivel de línea balanceada)
Salida conector en Euro Block 3-pin
(Nivel de línea balanceada)
Salida conector RCA
(Nivel de línea desbalanceada)
Salida de Línea (1-8)
CS TOC
Ethernet & GPIO Cierres de Contacto
Rack Link 1 (alta velocidad)
Rack Link 2 (alta velocidad)
CS-WC & CS-PP Bus 1 (baja velocidad)
CS-WC & Bus 2 (baja velocidad)
Tarjeta RS485
Audio Link Card slot
Slot para la tarjeta Audio Link Card que permite unir dos
ControSpace AMS-8 Audio Management Systems. Solo se
puede colocar una por sistema y en la unidad principal.
Incorpora las conexiones necesarias para el Audio Link
Cable, un set puede enviar a la segunda unidad 4 fuentes
de entrada
GPIO pinout:
Pin 1 : Contacto 1
Pin 2 : Contacto 2
Pin 3 : Contacto 3
Pin 4 : Contacto 4
Pin 5 : Contacto 5
Pin 6 : Contacto 6
Pin 7 : Contacto 7
Pin 8 : Contacto 8
Pin 9 : Salida
Pin 10 : Común
