Breaker Box
Breakers are usually arranged in two columns or along one row, depending on geographic
regions. The breaker positions are numbered left-to-right or top-to-bottom, depending on label
orientation. This numbering system is universal across various competing manufacturers of
breaker panels.

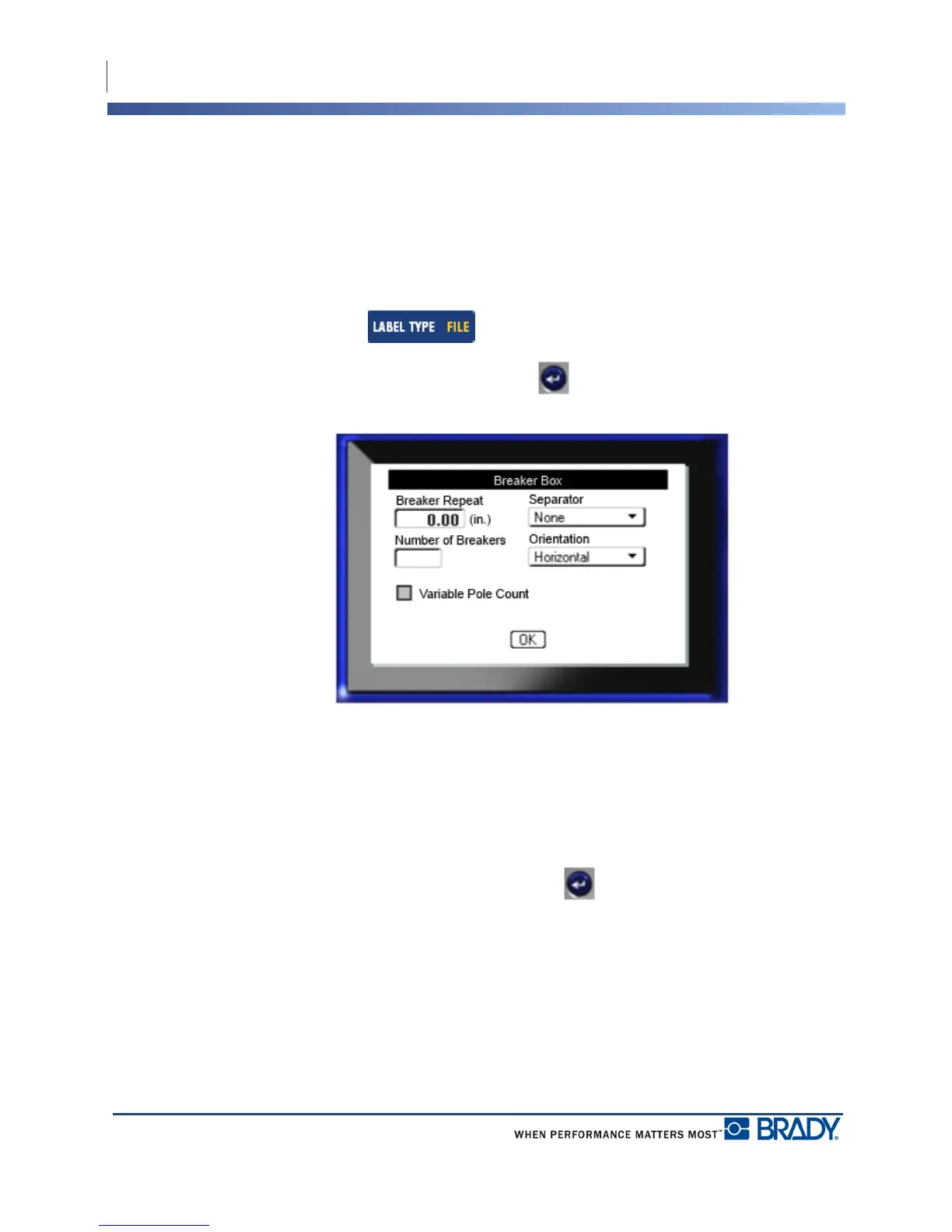

To create Breaker Box labels:
1. Press Label Type .
2. Navigate to Breaker Box, then press Enter .
3. In the Breaker Repeat: field, enter the width of a standard breaker.
4. In the Number of Breakers: field, enter the number of breakers to be labeled. This
produces one continuous strip, vertically aligned for US breaker boxes, or horizontally
aligned for EU breaker boxes.
To print a separator line between labels:
5. Navigate to the Separator field and press Enter to display the drop down list. From
the list, select the separator to use.
