7 Test Functions
7.4 Device List
The Device list function prints out the most important information on hardware components of the printer and connected
devices.TheprintoutoccursusingtheheatlevelandprintspeedspeciedintheSetup > Printing menu.
i
Notice!
Theprintoutoccurswithouttakingthelabelgapsintoconsideration.Thisiswhyendlessmediaaremost
suitableforthispurpose.
 Insert printable medium (labels, endless paper) which extends across the entire printing width.
 If the printout is to occur using thermal transfer printing, insert transfer ribbon with the maximum width.
 Start menu.
 Select Test > Device list.
The printout can be canceled with .
Device list
Tue Feb 13 10:56:36 2018
Brady i5100-300
Firmware V5.14 (Feb 09, 2018) - #164162032326
Name Description
CPU X4, #164162032326
PCB-Rev. 0, FPGA-Rev. 13
TPH 4“/300dpi/Kyocera V2.1.0, #72-01093
Resistance: 1078R
Manf. 2017-05-05 11:31:47
First: 2017-10-19 12:24:32
Last: 2018-02-12 16:12:43
I/F 1 Ethernet 10/100 MBit/s
MAC: 00:02:e7:05:bb:9d
I/F 2 USB 2.0 Device
I/F 3 RS-232
IFFS 45 MByte
USBMEM 3928 MByte
SD 61040 MByte
USB [1] Linux 3.10.4 ehci_hcd/EHCI Host Controller
High #ci_hdrc.1,Rev. 3.10
Mfr. 1D6B, ID: 0002, Class: 09/00, Protocol: 01
Driver: hub
USB [2] Cypress Semiconductor Corp./USB2.0 Hub
High Rev. 32.99
Mfr. 04B4, ID: 6570, Class: 09/00, Protocol: 01
Driver: hub
USB [3] Ralink/802.11 n WLAN
High #1.0,Rev. 1.01
Mfr. 148F, ID: 5370, Class: 00/00, Protocol: 00
Driver: rt2800usb
USB [4] brady/Service-Key
Full #11-10296933,Rev. 1.06
Mfr. 0985, ID: 0BD8, Class: FF/00, Protocol: FF
Driver: cab_key
USB [5] Microchip Technology Inc./AR1100 HID-DIGITIZER
Full Rev. 1.01
Mfr. 04D8, ID: 0C03, Class: 00/00, Protocol: 00
Driver: usbhid
USB [6] Cypress Semiconductor Corp./USB2.0 Hub
High Rev. 32.99
Mfr. 04B4, ID: 6570, Class: 09/00, Protocol: 01
Driver: hub
USB [7] Brady/BDC
High Rev. 1.0d
Mfr. 0E2E, ID: 0003, Class: FF/1B, Protocol: 50
Driver: cabbdc
HEALTH PS 24.1V, BATT OK, TPH 26.0°C

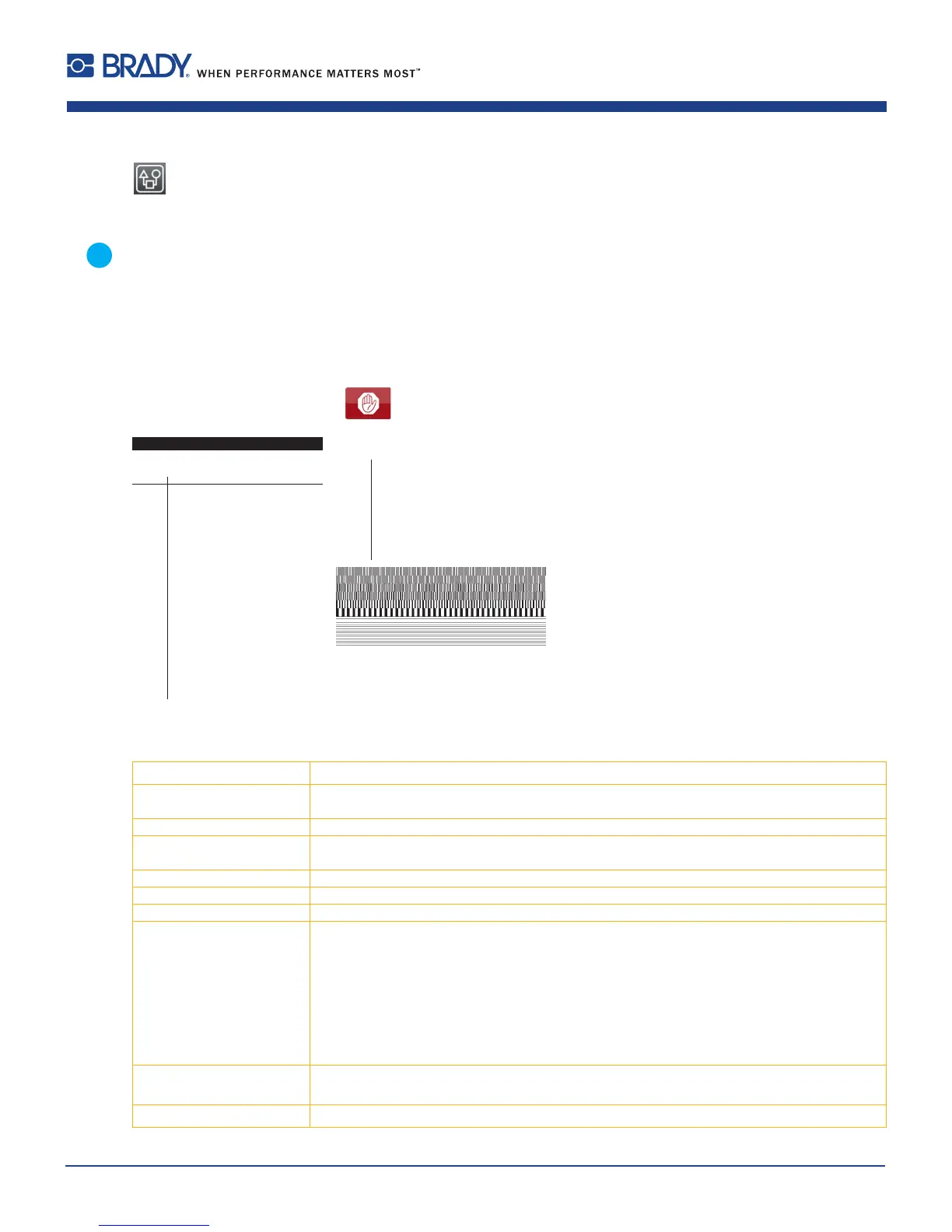

Figure 16 Device list
Parameters marked italic are only printed when the service key is inserted
Name Information
CPU Type and serial number of the PCB CPU
Revision of PCB CPU and FPGA
TPH Print width and resolution of the installed thermal printhead
IF [x] Type of interfaces installed
x: Number of interface
IFFS Size of the Internal Flash File System
USBMEM Size and type of an installed USB storage device
SD Size and type of an installed SD card
USB [a]
Speed
Type and revision of installed USB devices
a: number of USB device
Speed: data transfer speed (low, full, high)
The following properties are only displayed when the service key is inserted:
Mfr.:ManufacturerID.ThisidentiesthemanufactureroftheUSBdevice
Class: Code for the USB device class
Protocol: Code for the type of communication with the USB device
Phase: Internal value for troubleshooting
HEALTH Printhead voltage, charge state of the lithium battery on the PCB CPU,
temperature of CPU and printhead
Line pattern Lines differing in thickness at various distances. They are used to evaluate the print quality.
Table 22 Parameters of the Device list
