i5100 Conguration Manual
7 Test Functions
7.5 TestGrid
The Test grid function prints out a geometric pattern on a background grid. This allows you to assess the evenness of the
print quality.
TheprintoutoccursusingtheheatlevelandprintspeedspeciedintheSetup > Printing menu.
i
Notice!
Theprintoutoccurswithouttakingthelabelgapsintoconsideration.Thisiswhyendlessmediaaremost
suitableforthispurpose.
 Insert printable medium (labels, endless paper) which extends across the entire printing width.
 If the printout is to occur using thermal transfer printing, insert transfer ribbon with the maximum width.
 Start menu.
 Select Test > Test grid.
The geometric pattern is printed every 3 seconds once the Test grid function is started.
The printout can be canceled with .

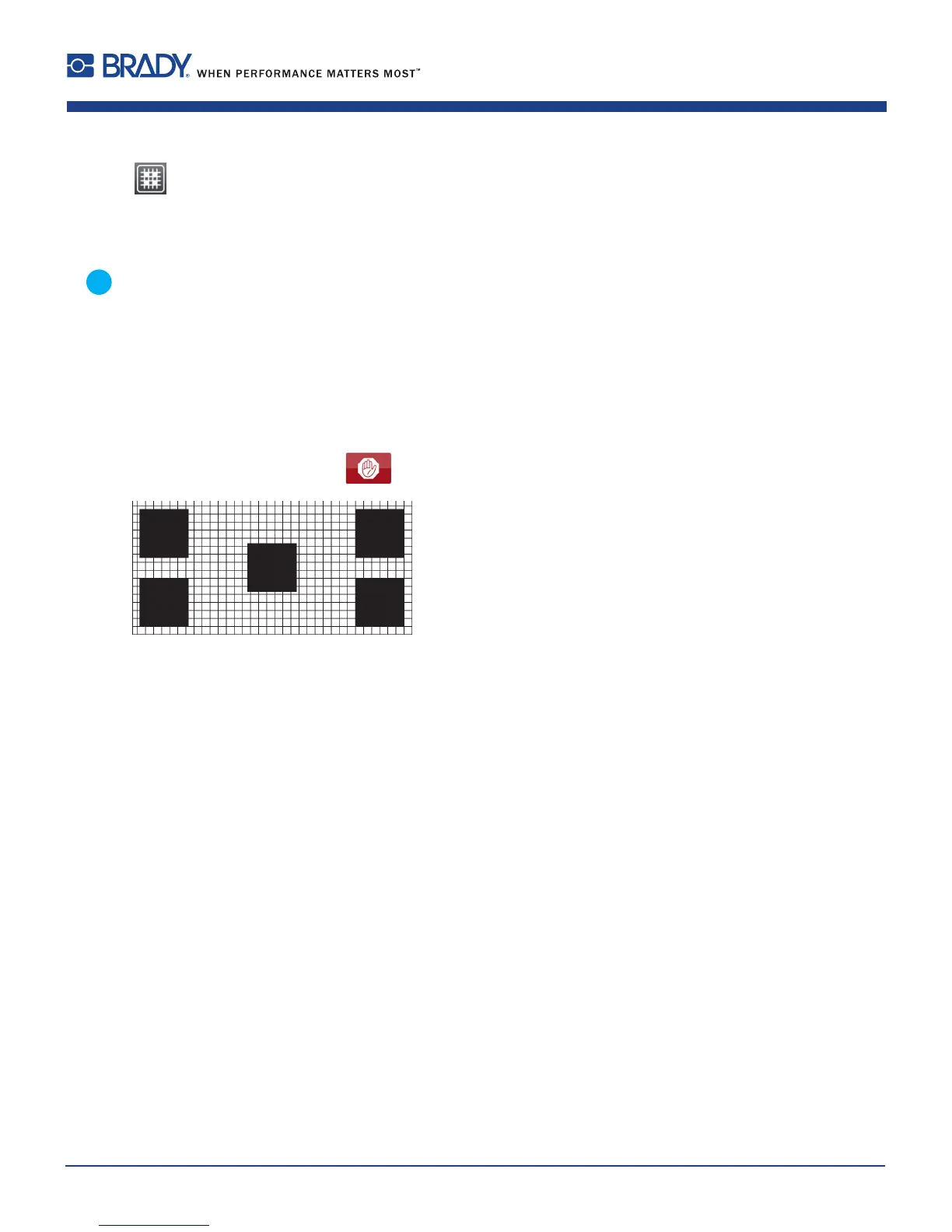

Figure 17 Test grid
