4-5
OVERALL LENGTH
Model Fixed Tube Ridge Pole RollingTube "L"
672,674 160" 140 1/2" 167"

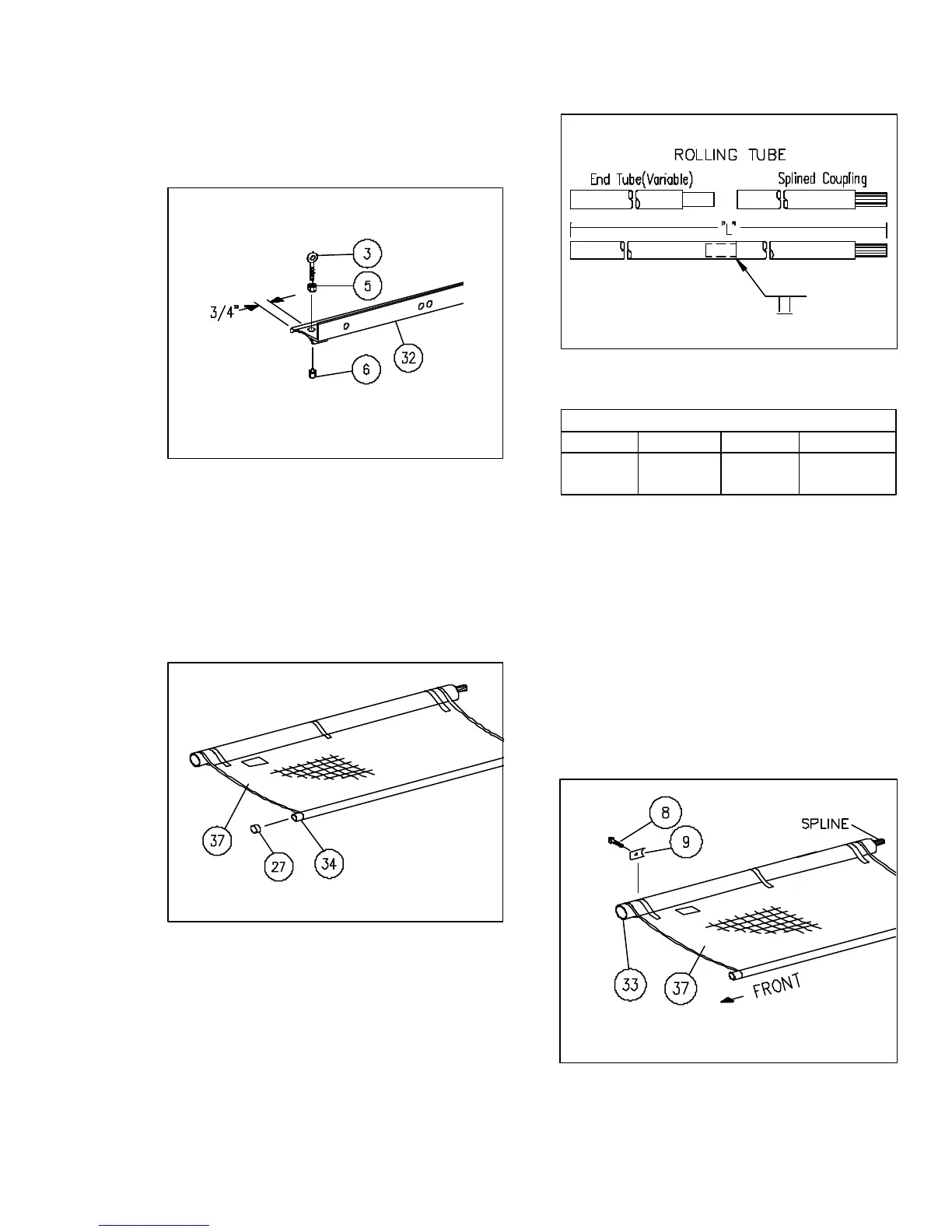

7. Install rod eye (3), nut (5), and locknut
(6) at front of latch plate (32) approxi-
mately 3/4" from end. See Fig. 4.
Fig. 4
270917-4
Fig. 5
270917-5
9. Assemble splined coupling and 2"
rolling tubes as shown in Fig. 6 (see
Table 1 for length). Weld sections
together. Clean weld around tube to
prevent damage to tarp. Insert 2" tube
assembly (33) in tarp with spline to
rear. See Fig. 7.
8. Unfold tarp (37). Weld two halves of
1-1/8" fixed tube (34) (see Table 1 for
overall length). Insert tube in end of
tarp. Install end cap (27) in tube. See
Fig. 5.
Fig. 7
270917-7
Fig. 6
270917-6
10. The rolling tube (33) and tarp (37)
must be flush as shown. Where straps
join tarp, drill 1/8" pilot holes through
tarp and tube. Install tube
U-clamps (9) with self-threading
screws (8) to secure tarp to tube.
See Fig. 7.
Table 1
To Next Page
