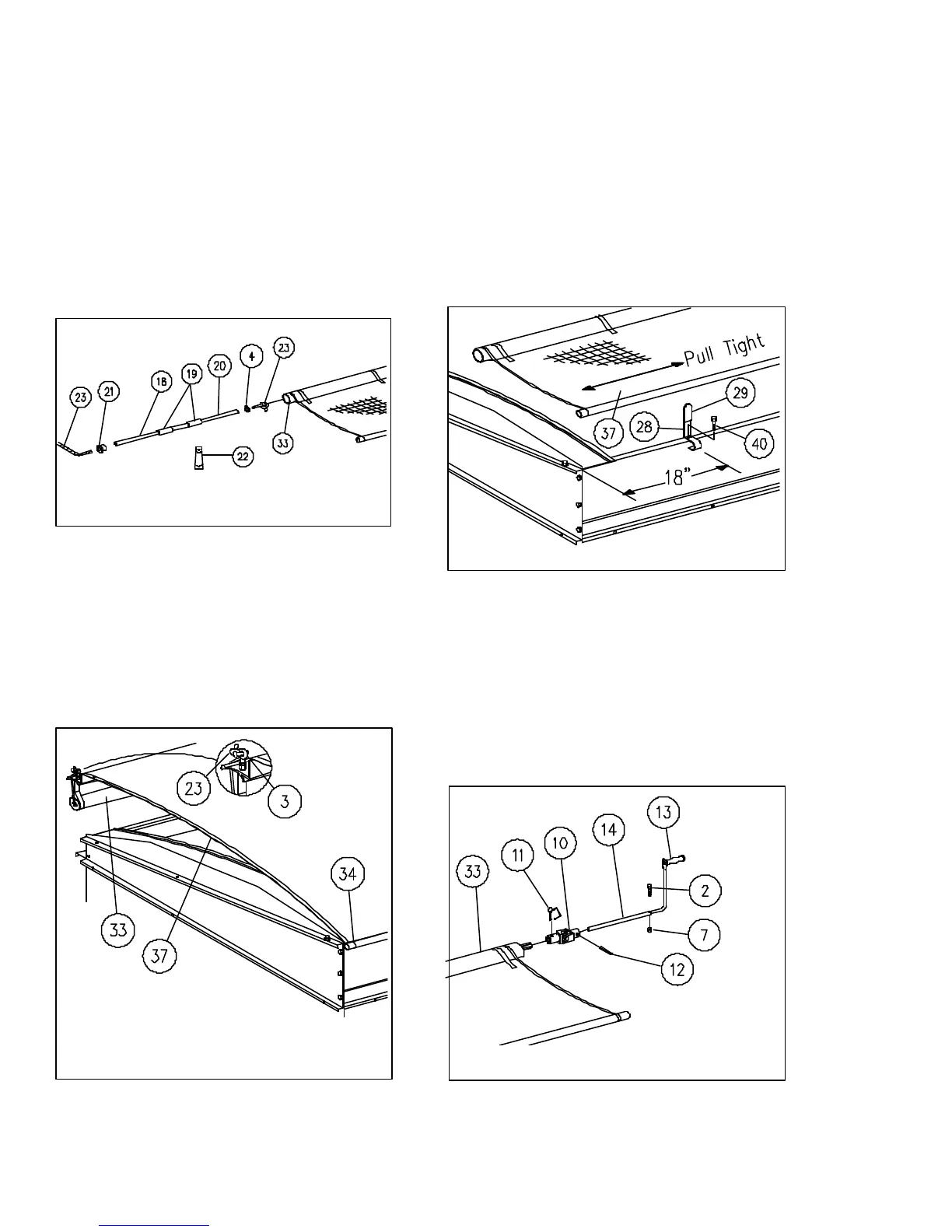

14. Assemble tarp (37) and stops with
caps, (28,29) to top of left hand side
boards with capscrews and nuts (40).
Note: With tension on tarp, install
center stop first. Align tarp and in-
stall two outer stops. The tighter the
tarp, the better the wear. See Fig.
10.
Fig. 10
15. Insert U-joint (10) over splined cou-
pling (part of 33) and secure with wire
pin (11). Place handle extension
(14) into U-joint and secure with spring
pin (12). Insert handle (13) into ex-
tension (14) and secure with capscrew
(2) and locknut (7). See Fig. 11.
Fig. 11 270917-11
13. Lift tarp (37) with tubes (33,34) onto
top of left side boards. See Fig. 9.
270917-8
Fig. 8
270917-10
11. Assemble pvc pipes (18,19) and con-
nectors (20) as required with plastic
adhesive (22). See Fig. 8.
12. Insert knotted stretch rope (23)
through flatwasher (4) and plastic tube
(18-20). Place these items as an
assembly into front of large rolling
tube (33) and tap retainer (21) into
rolling tube. See Fig. 8.
Fig. 9
270917-9
