Brocade MLXe Series Hardware Installation Guide 93
53-1003030-01
Installing a Brocade MLXe-32 router
2

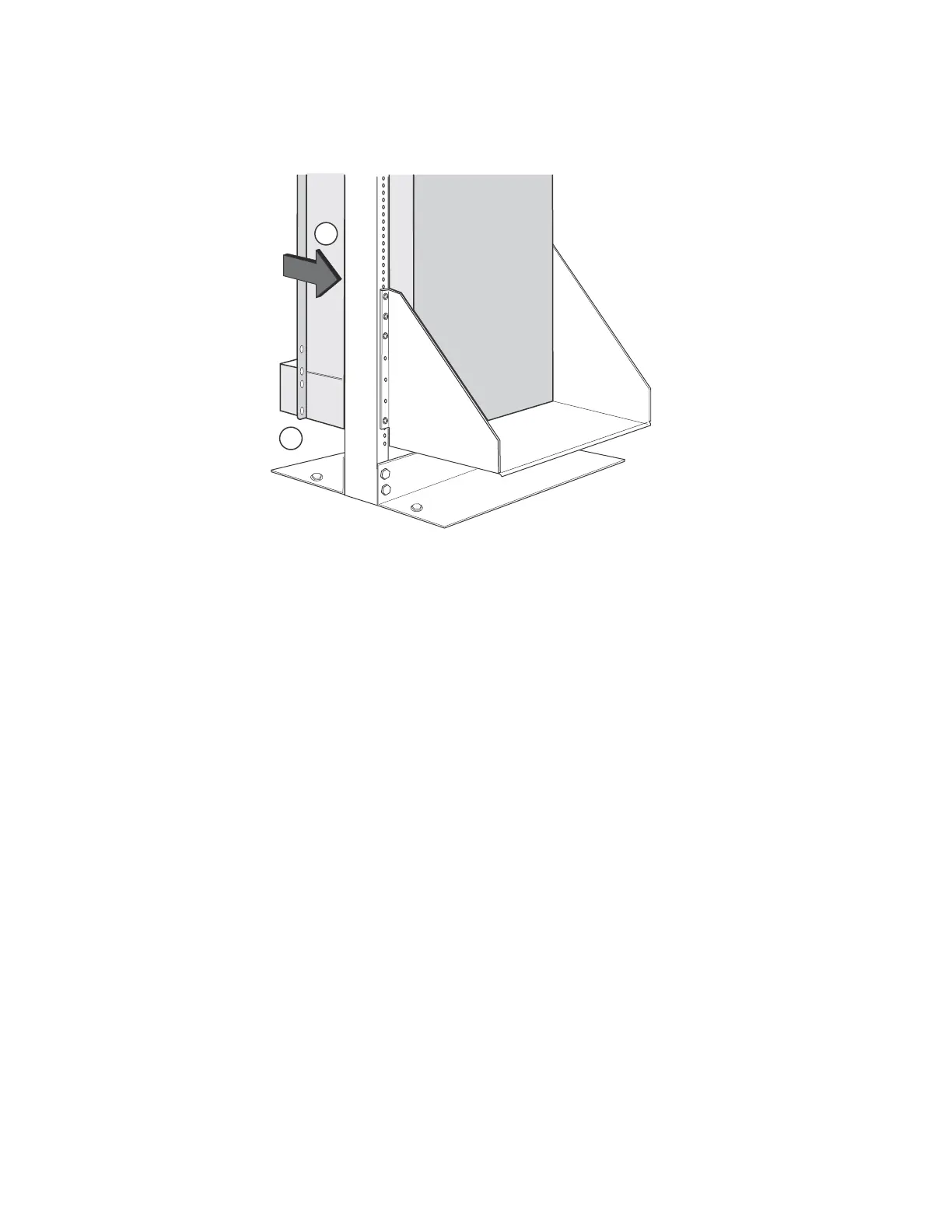

FIGURE 66 Slide the device into the rack
4. Use the provided standard #12-24, #10-32 or M6 pan head screws (dependent on the
specifications of your rack) in each available hole on the rack mount bracket to attach the
router to the rack mounting poles. See Figure 67.
5. Visually inspect the alignment of the router. If the router is installed properly, the mounting
screws on both sides rack should be aligned with the mounting screws on the opposite side
and the router should be level.
1 Align bottom of router slightly above the seat of the saddle using mechanical lift.
2 Using at least two people, slide router gently onto saddle and into the rack.
2
1
