RJ45 procedures
3
Cable cinch with two groups of RJ45 cables

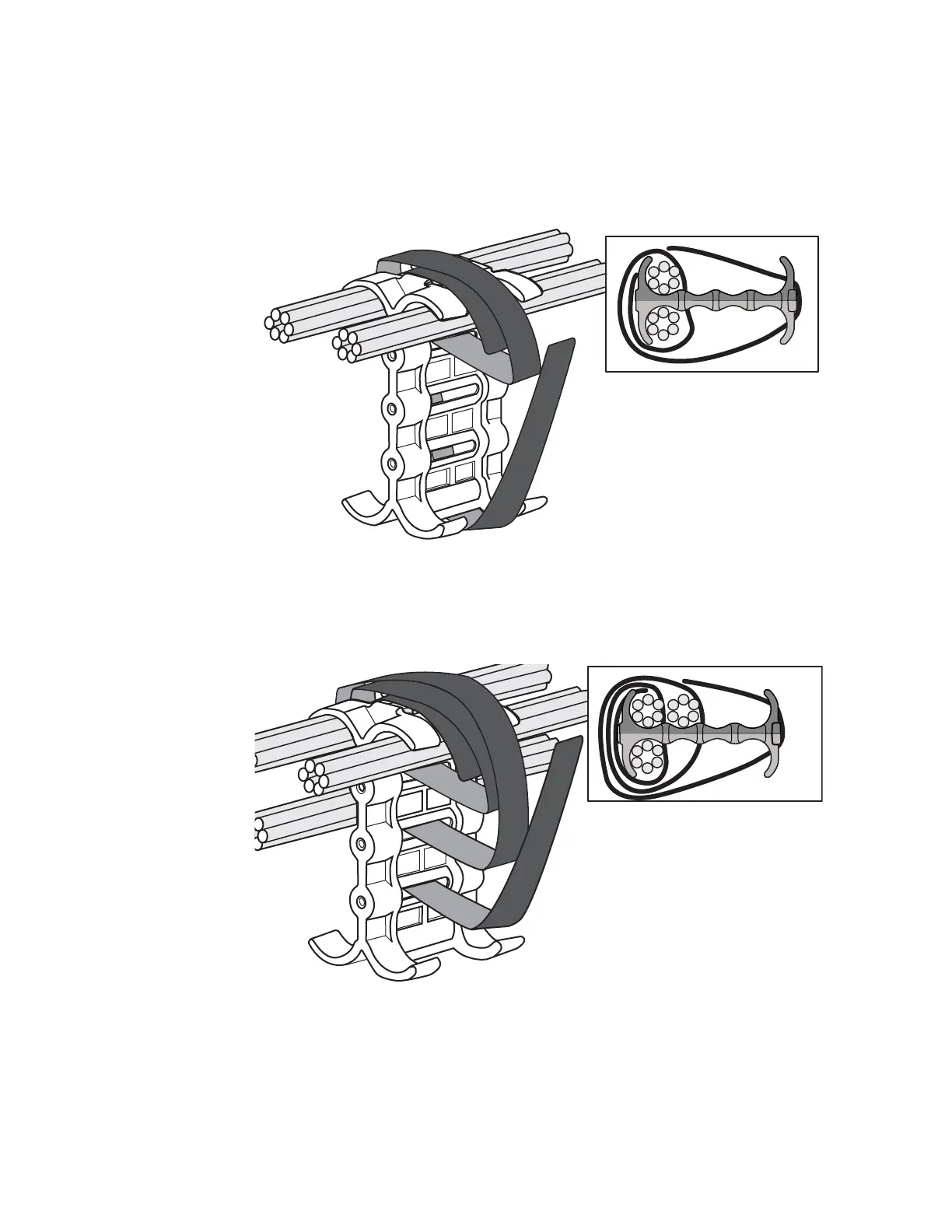

12 RJ45 cables, in two groups, may be secured as shown in Figure 102.
FIGURE 102 12 RJ45 cables in two groups
Cable cinch with three groups of RJ45 cables
18 RJ45 cables, in three groups, may be secured as shown in Figure 103.
FIGURE 103 18 RJ45 cables in three groups
