74 Brocade MLXe Series Hardware Installation Guide
53-1003030-01
Installing a Brocade MLXe-16 router
2

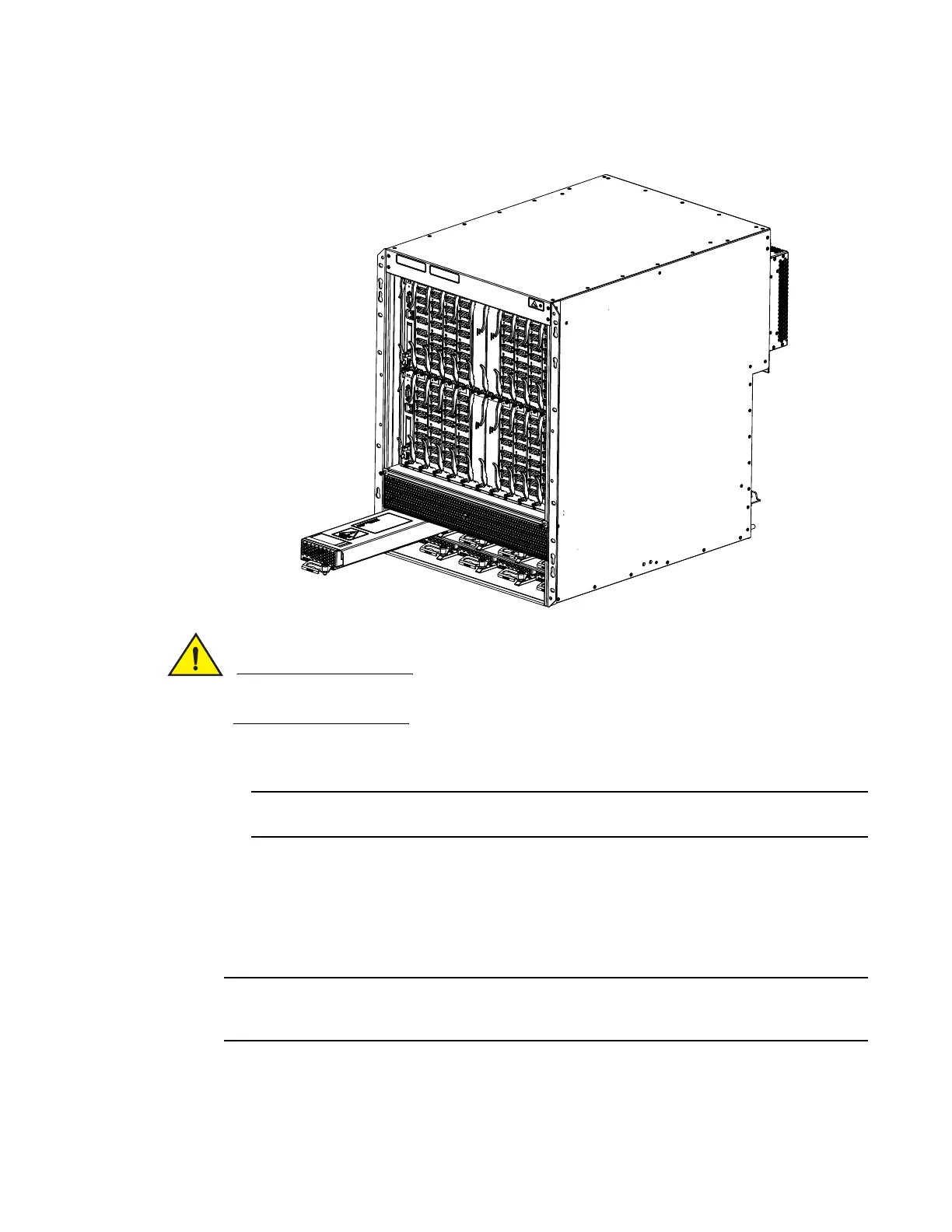

FIGURE 45 Installing a power supply in a Brocade MLXe-16 router
Carefully follow the mechanical guides on each side of the power supply slot and make sure the
power supply is properly inserted in the guides. Never insert the power supply upside down.
4. Push the power supply front panel toward the back of the router. This action causes the power
supply connector to engage the backplane connector.
Do not overtighten screws when installing power supplies.
5. For information about connecting power to the router, refer to “Connecting AC power”.
6. For information about powering on the system, refer to “Activating the power source” on
page 125.
Connecting AC power
For the NEBS-compliant installation, AC power connections must use a surge protection device
(SPD) to protect the AC power supplies from damage due to excessive power line surges.
AC power is supplied through a power cord connected to the power supply in the Brocade MLXe-16
router.
