Brocade MLXe Series Hardware Installation Guide 139
53-1003030-01
RJ45 procedures
3
Cable cinch with four groups of RJ45 cables

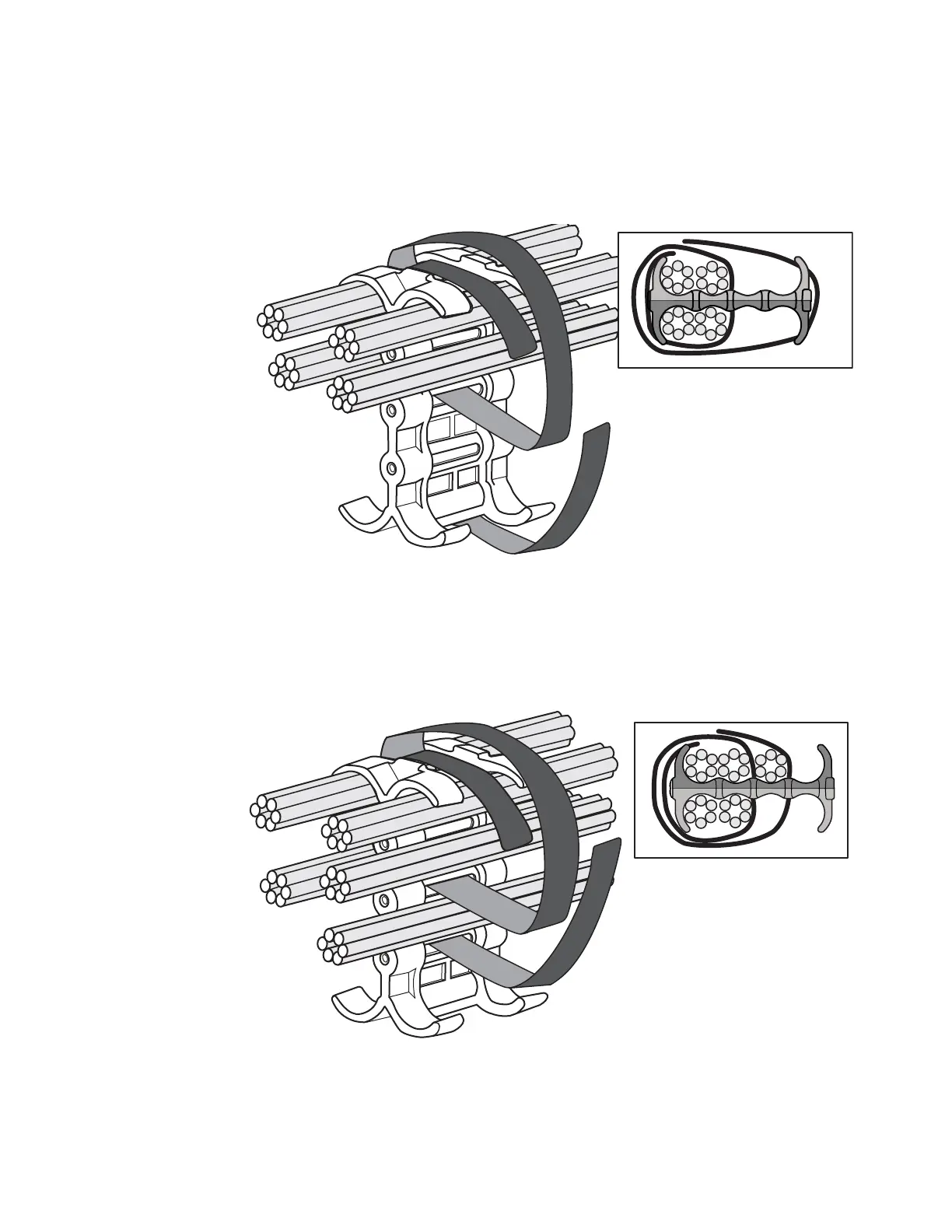

24 RJ45 cables, in four groups, may be secured as shown in Figure 104.
FIGURE 104 24 RJ45 cables in four groups
Cable cinch with five groups of RJ45 cables
30 RJ45 cables, in five groups, may be secured as shown in Figure 105.
FIGURE 105 30 RJ45 cables in five groups
