136 Brocade MLXe Series Hardware Installation Guide

53-1003030-01

mRJ21 procedures

Cable cinch with six mRJ21 cables

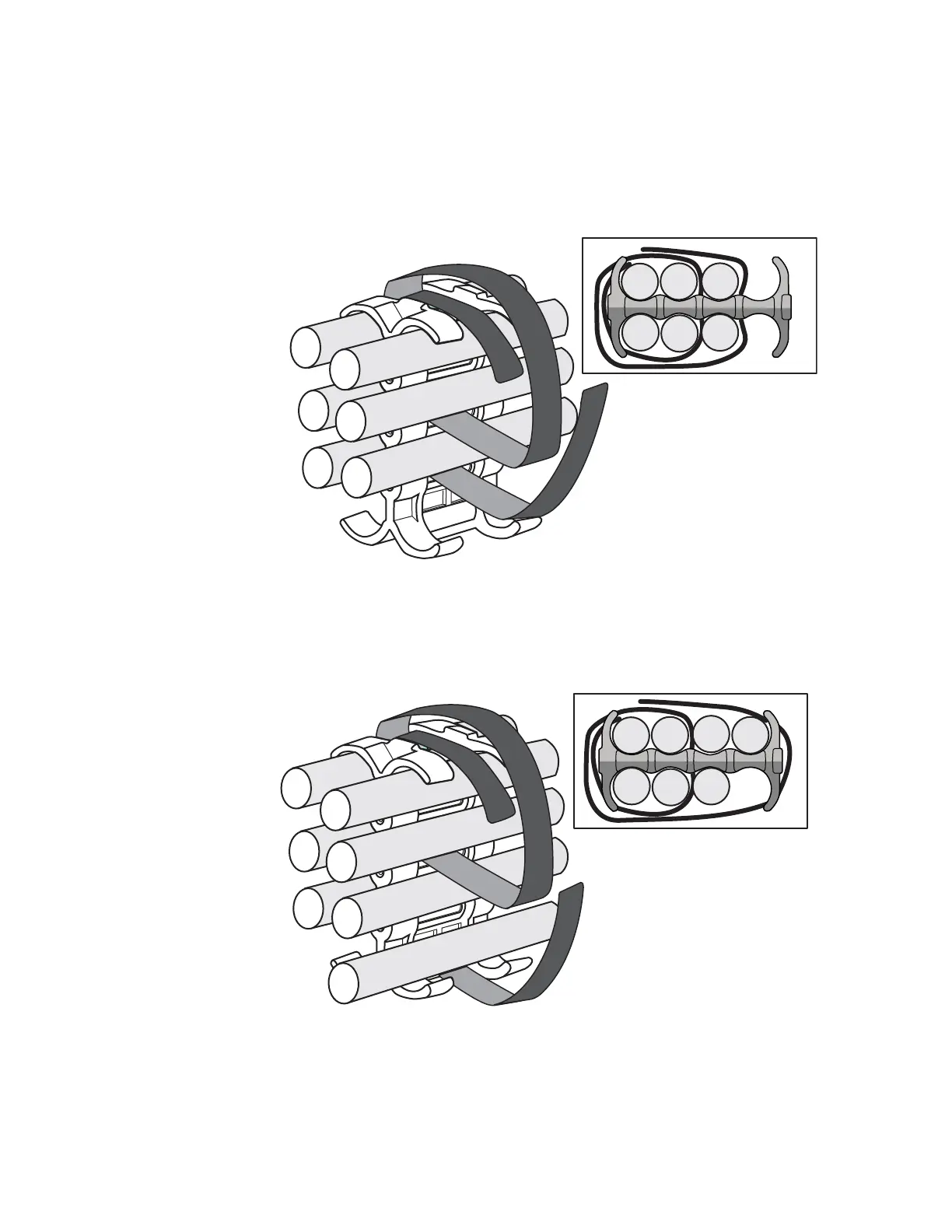

Six mRJ21 cables may be secured as shown in Figure 98.

FIGURE 98 Six mRJ21 cables

Cable cinch with seven mRJ21 cables

Seven mRJ21 cables may be secured as shown in Figure 99.

FIGURE 99 Seven mRJ21 cables
