Power cords
7
Power cords
The types of power cords provided with routers are specific to the country where they are installed.
To order a power cord, contact your Brocade supplier. Table 47 describes power cord types.
TABLE 46 Management port pin assignments
Pin number MDI-X ports
1TD+
2TD-
3RD+
4Not used (10BaseT)
CMT (100BaseTX)
5Not used (10BaseT)
CMT (100BaseTX)
6RD-
7Not used (10BaseT)
CMT (100BaseTX)
8Not used (10BaseT)
CMT (100BaseTX)

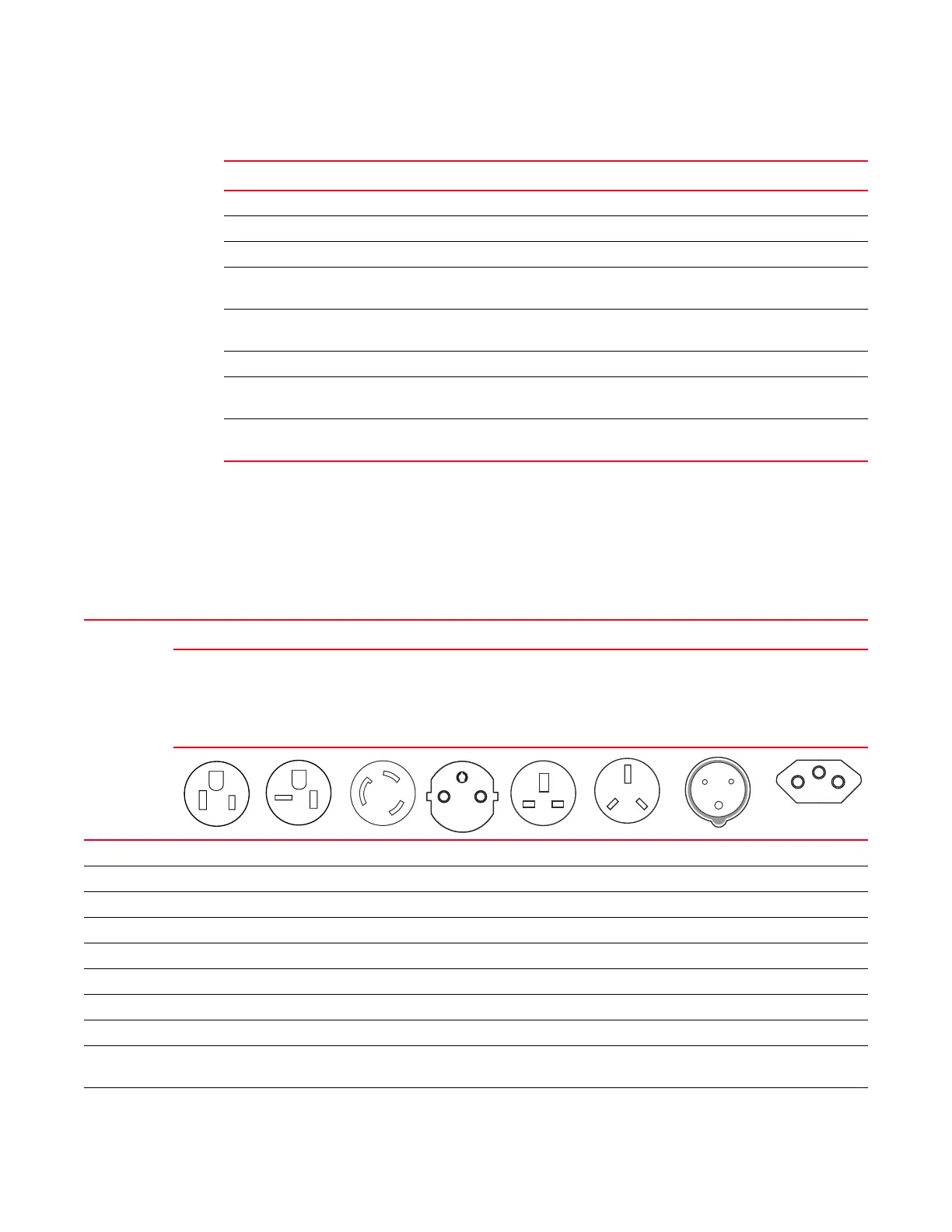

TABLE 47 Power cord types (international)
Country Plug style
NEMA 5-15P
125V for
MLXe/MLX 4,
8, 16-slot
devices
NEMA 5-20P
125V. 16A for
MLXe/MLX 4,
8, 16-slot
devices
NEMA L6-20 CEE-7/7
“Schuko”
BS-1363A AS 3112 IEC-60309
20A. 3-wire, 220
- 250V
NBR 14136
Argentina X
Australia X
Austria X
Bahrain X
Belgium X
Brazil X
Canada X X
Chile X
China,
People’s Rep.
X
Czech. Rep. X
