Brocade MLXe Series Hardware Installation Guide 135

53-1003030-01

mRJ21 procedures

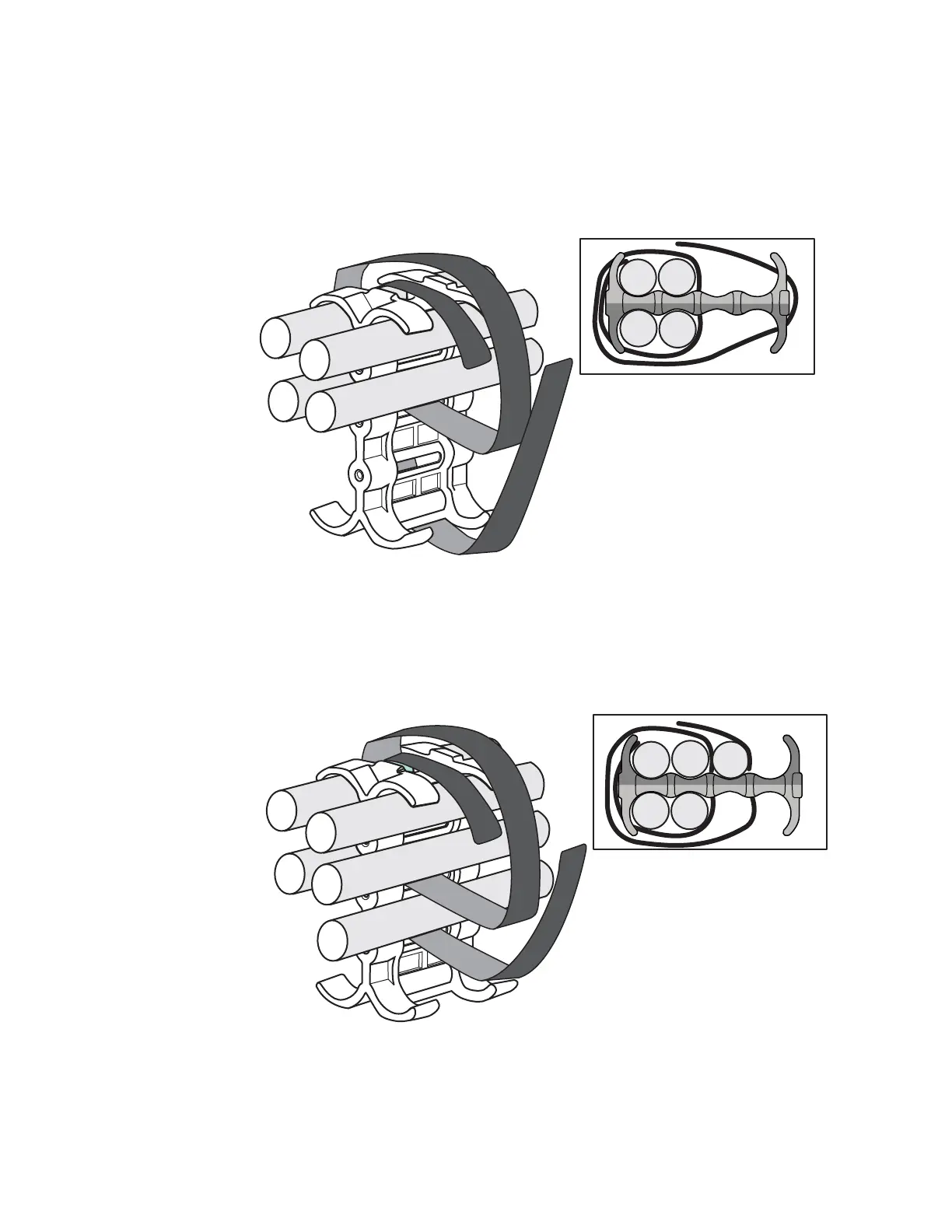

Cable cinch with four mRJ21 cables

Four mRJ21 cables may be secured as shown in Figure 96.

FIGURE 96 Four mRJ21 cables

Cable cinch with five mRJ21 cables

Five mRJ21 cables may be secured as shown in Figure 97.

FIGURE 97 Five mRJ21 cables
