54 Brocade MLXe Series Hardware Installation Guide
53-1003030-01
Installing a Brocade MLXe-4 router
2
Installing power supplies in a Brocade MLXe-4 router
Follow these steps to install a power supply.
1. Remove the power supply slot blank and store it for future use.
2. Remove the power supply from the packaging.
3. Insert the power supply into the slot and slide it along the guides on each side of the slot. Refer
to Figure 33.
Empty power supply slots must be covered with slot blanks.
Carefully follow the mechanical guides on each side of the power supply slot and make sure the
power supply is properly inserted in the guides. Never insert the power supply upside down.

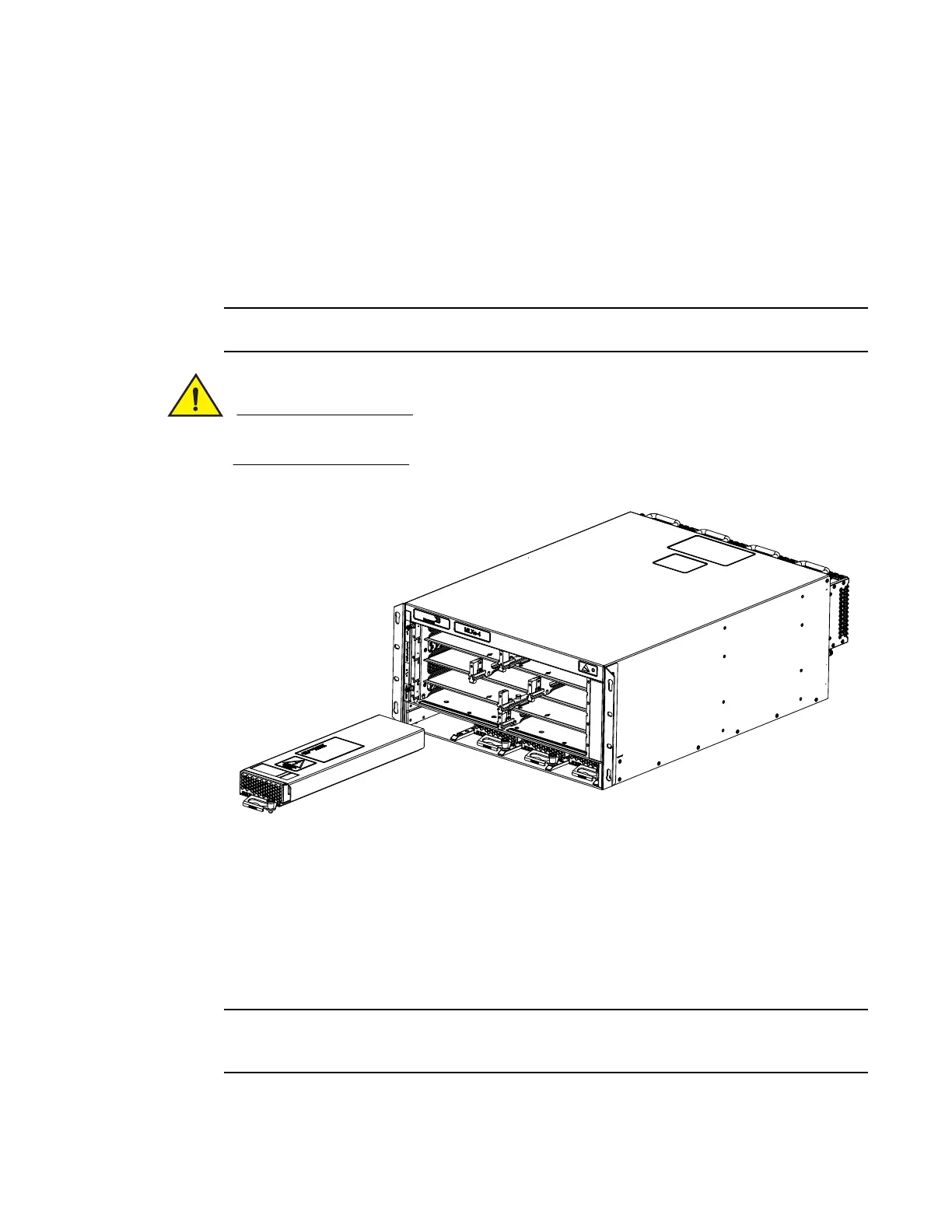

FIGURE 33 Installing a power supply
4. Push the power supply front panel into the router until it engages the backplane connector,
and the latch pin clicks into place.
For information about connecting power to the router, refer to “Connecting AC power” on page 54
or “Connecting DC power” on page 55.
Connecting AC power
AC power is supplied through a power cord connected to the AC power supply installed in the router.
For the NEBS-compliant installation, AC power connections must use a surge protection device
(SPD) to protect the AC power supplies from damage due to excessive power line surges.
Follow these steps to connect the AC power cord.
