Brooks MT3809G - How to Remove and Reinstall XP Housing Indicator Covers

Installation and Operation Manual
X-VA-MT3809G-MT3810G-eng
Part Number: 541B182AAG
July, 2018
Models MT3809G & MT3810G

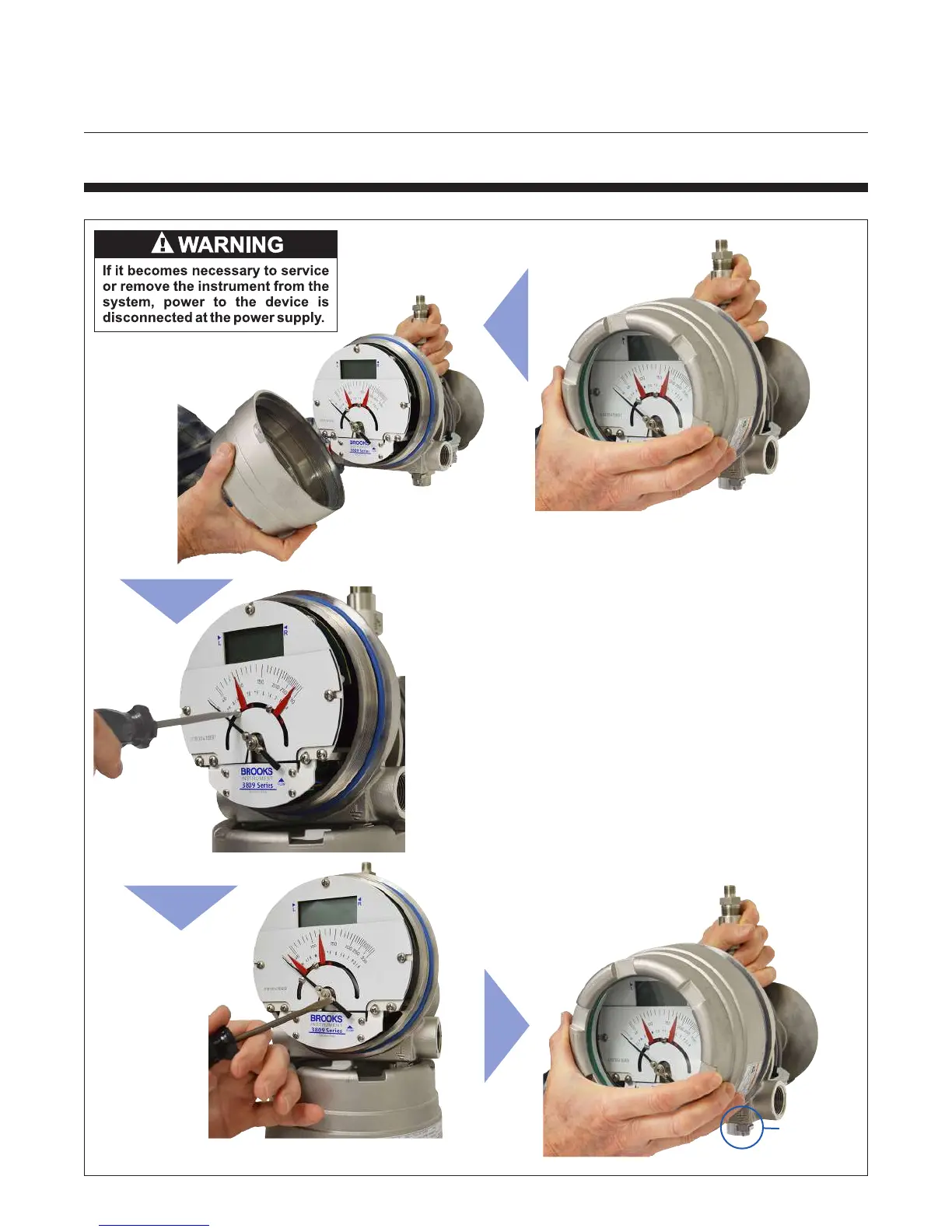

2-5-3 How to Remove and Reinstall XP Housing Indicator Covers
Directions to remove and reinstall the XP Housing
Indicator Cover, adjust Alarms and the Pointer:
1. To begin make sure the oat is at rest and there isn’t ow
going through the meter.
2. Using your hands or a strap wrench turn the cover counter
clockwise to remove the cover from the housing
3. Remove the cover from the housing. The gasket should stay
attached to the groove in the housing
4. Using a at blade screwdriver with a 1/8" blade, hold the red
alarm pointer and turn the screw counterclockwise to loosen
the pointer, slide it to desired position on scale and tighten
screw.
5. Using a at blade screwdriver with a 1/8" blade, hold the
pointer and turn the screw to align with the “R” on the scale. It
may take a few adjustments to get the pointer aligned to the
“R”.
6. To replace the cover, place the cover against the housing
and turn the cover clockwise. Note, it will take several rotations
to tighten the cover and the cover must be in contact with the
gasket to keep a watertight seal.
Grounding
Screw
(accessed at
front of meter)
