Installation and Operation Manual
X-VA-MT3809G-MT3810G-eng
Part Number: 541B182AAG
July, 2018
Models MT3809G & MT3810G
2-6-1 4-20 mA/HART Transmitter Intrinsically Safe Installation
For intrinsically safe installation, intrinsic safety barrier selection, cable
parameters, and power supply limits must be in accordance with the
entity parameters shown in Figure 2-5a/2-5b. Alternatively, the optional
intrinsically safe power supply available from Brooks may be used. Cable
parameters for inductance and capacitance still apply.
Note: To ensure full EMC protection the ferrite core included with the
meter must be installed to the input power I/O cable at the supply end of

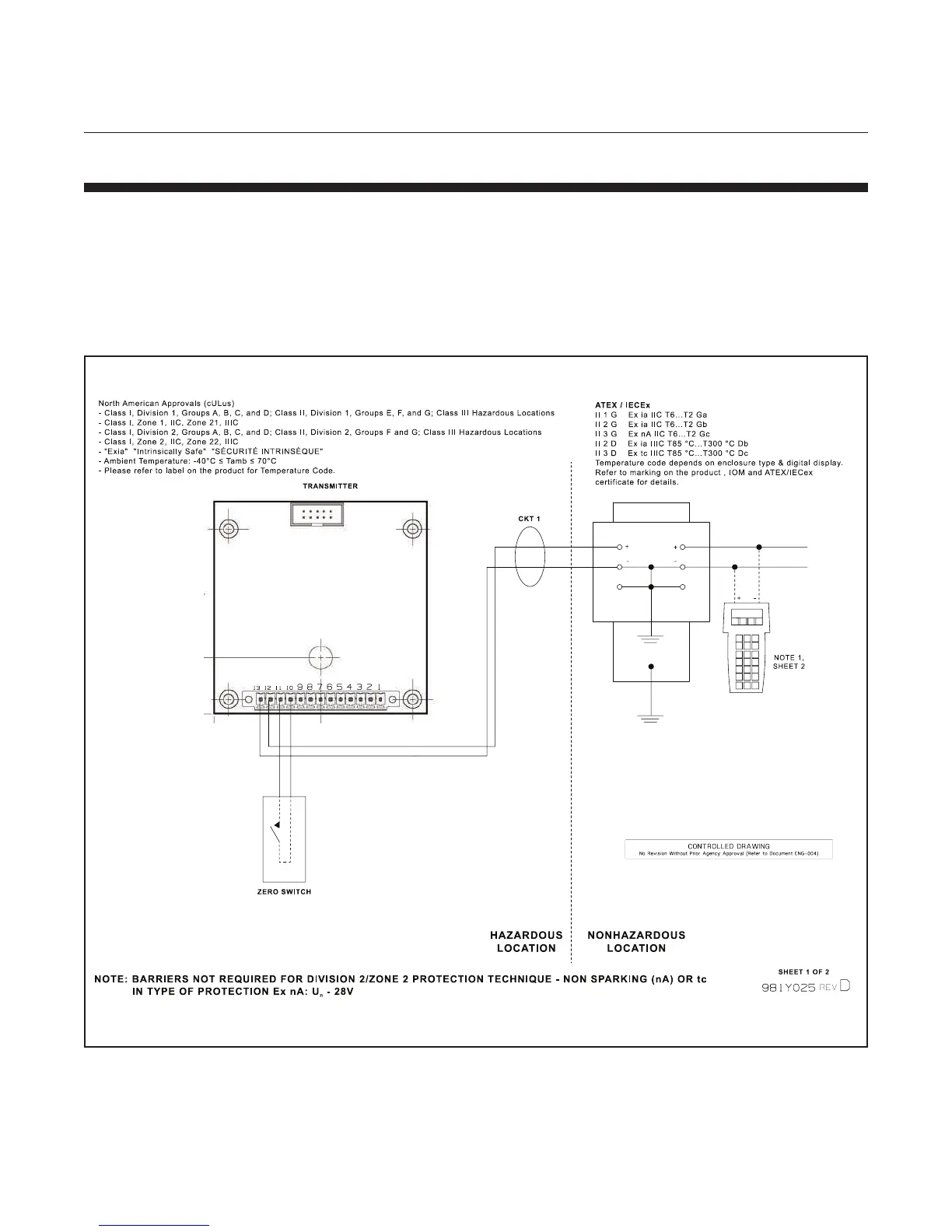

Figure 2-5a Wiring Diagram, Model MT3809 Transmitter, 4-20 mA
(Continued on next page)
