3-3-1 Communication with HART Transmitter using Device Descriptor
The structure of the device descriptor for the HART transmitter is given in
Figures 3-1 and 3-2.
The alarms may be set at the minimum and maximum ow rate or at any

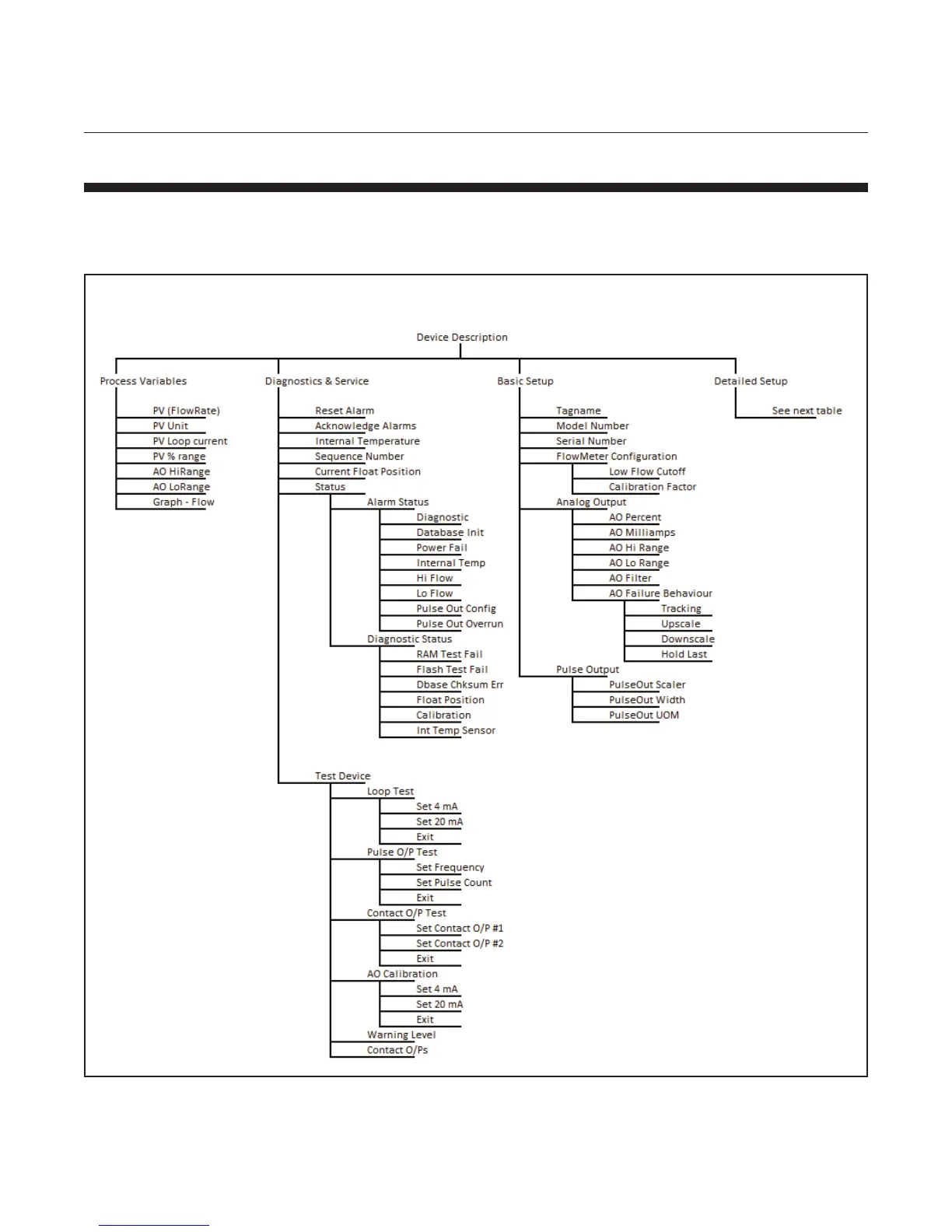

Figure 3-1 Model MT3809 Electronics Basic Setup Menu Tree
DDstructure: 
