Brooks MT3809G - Page 57

Installation and Operation Manual
X-VA-MT3809G-MT3810G-eng
Part Number: 541B182AAG
July, 2018
Models MT3809G & MT3810G

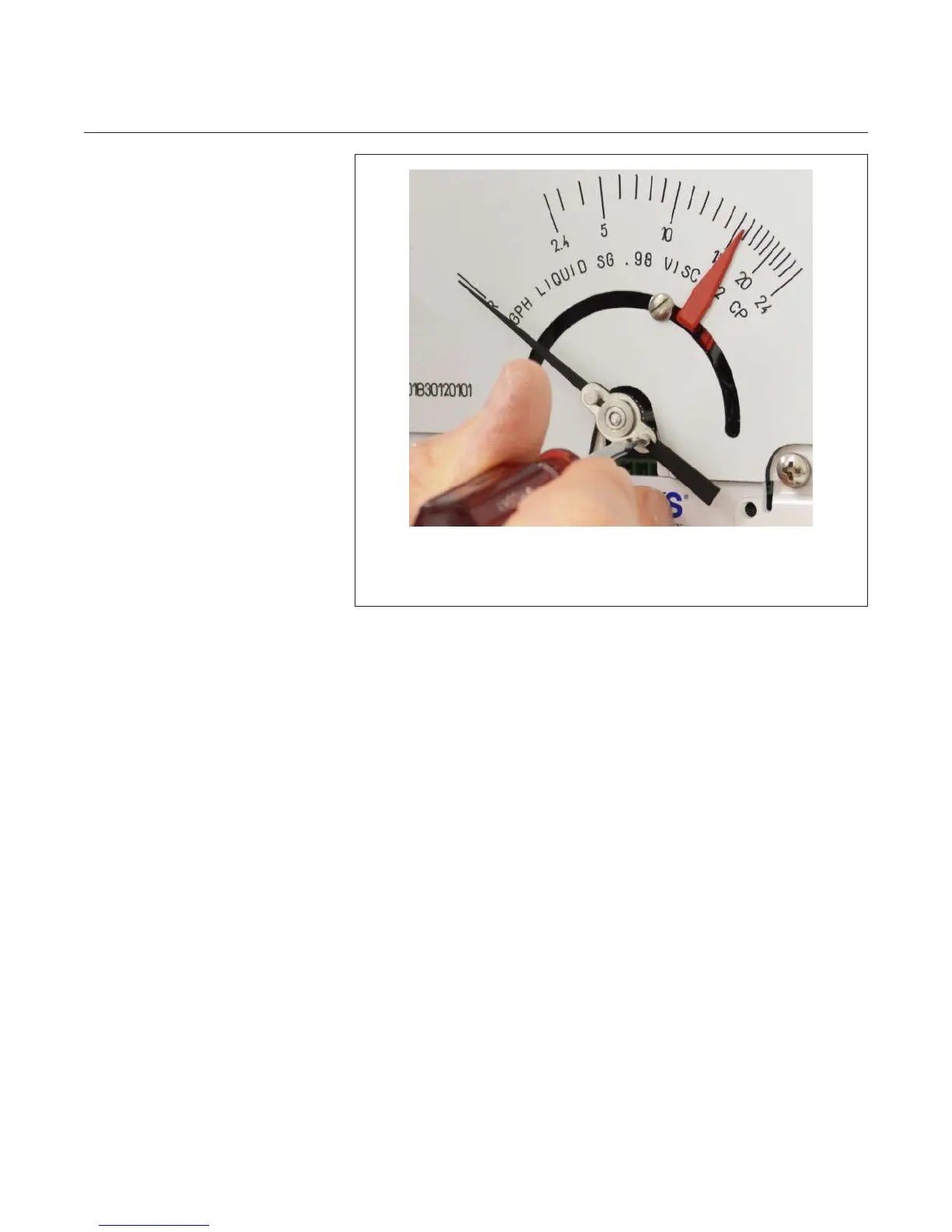

Figure 2-16 Mechanical Indicator Zero
Using a at blade screwdriver with a 1/8" blade, hold the pointer and
turn the screw to align with the “R” on the scale.
It may take a few adjustments to get the pointer on the “R”.
