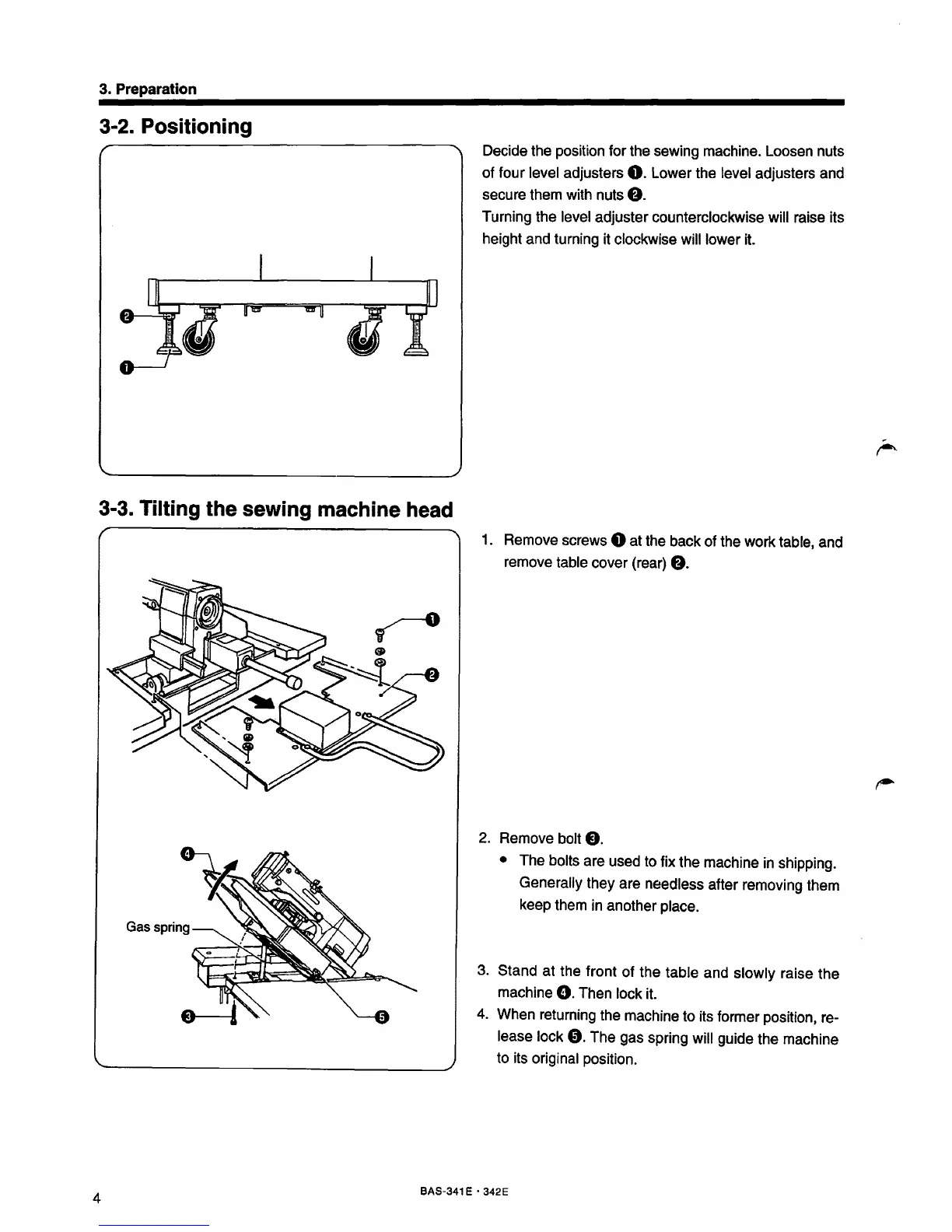

3. Preparation
3-2. Positioning
3-3. Tilting the sewing machine head
Gas spring
Decide the position for the sewing machine. Loosen nuts
of four level adjusters
0.
Lower the level adjusters and
secure them with nuts
8.
Turning the level adjuster counterclockwise will raise its
height and turning it clockwise will lower it.
1. Remove screws
0 at the back of the work table, and
remove table cover (rear)
8.
2. Remove bolt
8.
• The bolts are used to fix the machine in shipping.
Generally they are needless after removing them
keep them in another place.
3. Stand at the front of the table and slowly raise the
machine
8.
Then lock it.
4.
When returning the machine to its former position, re-
lease lock
0.
The gas spring will guide the machine
to its original position.
4
BAS-341 E • 342E
