Brother BAS-341E - Connecting the Ground Wire; V-Belt Tension; Installing the Foot Switch

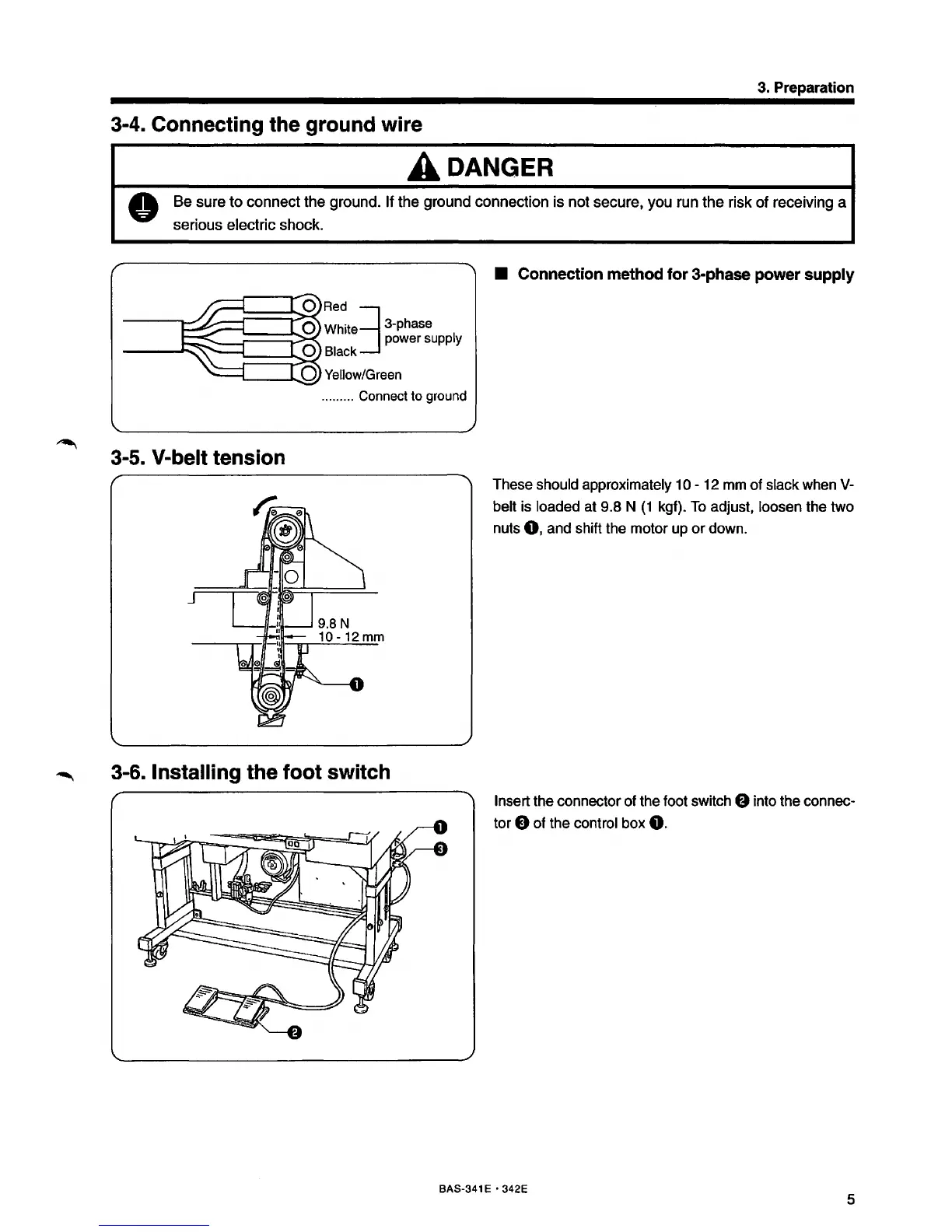

3. Preparation
3-4. Connecting the ground wire
•
A DANGER
Be sure to connect the ground. If the ground connection is not secure, you run the risk of receiving a
serious electric shock.
• Connection method for 3-phase power supply
......... Connect to ground
3-5. V-belt tension
J
3-6. Installing the foot switch
These should approximately 10 - 12 mm of slack when V-
belt is loaded at 9.8 N (1 kgf). To adjust, loosen the two
nuts 0, and shift the motor up or down.
Insert the connector of the foot switch 8 into the connec-
tor e of the control box o.
BAS-341 E • 342E
5
