1 o. DIP switch

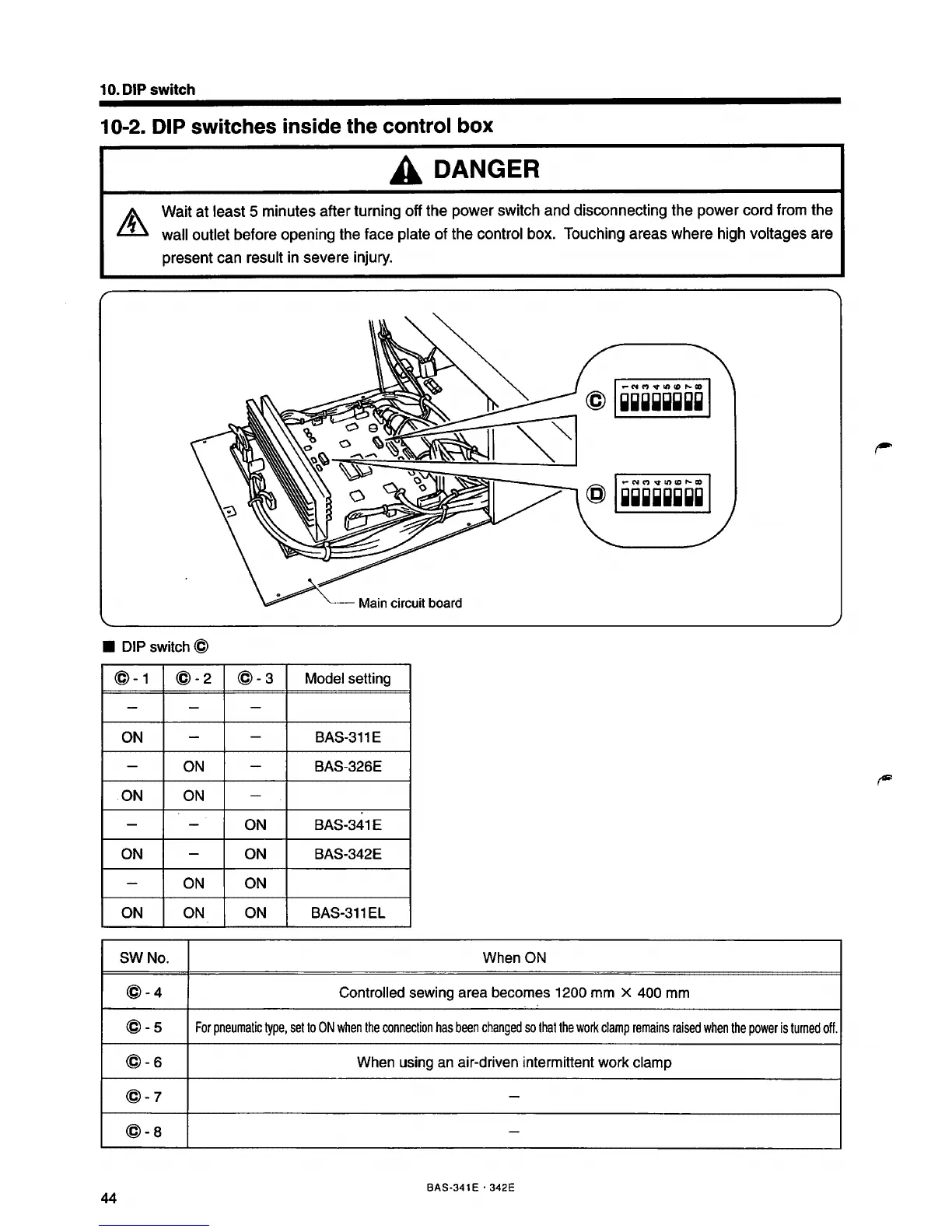

10-2. DIP switches inside the control box
A DANGER
Wait at least 5 minutes after turning off the power switch and disconnecting the power cord from the
wall outlet before opening the face plate of the control box. Touching areas where high voltages are
present can
result in severe injury.
- Main circuit board
• DIP switch©
©-1
©-2
©-3
Model setting
- -
-
ON
-
-
BAS-311E
-
ON
-
BAS-326E
.ON
ON
-
-
- ON BAS-341E
ON
-
ON BAS-342E
-
ON ON
ON ON ON
BAS-311EL
SWNo.
When ON
©-4
Controlled sewing area becomes 1200 mm X 400 mm
©-5 For pneumatic type, set to ON when the connection has been changed so that the work clamp remains raised when the power is turned off.
©-6 When using an air-driven intermittent work clamp
©-7
-
©-8
-
BAS-341 E • 342E
44
